23899 (4050) - Toro Directional Drill with Cab (SN: 316000001 - 316999999) (2016) Carriage Guard and Mounting Assembly Parts Diagram

Directional Drill with Cab

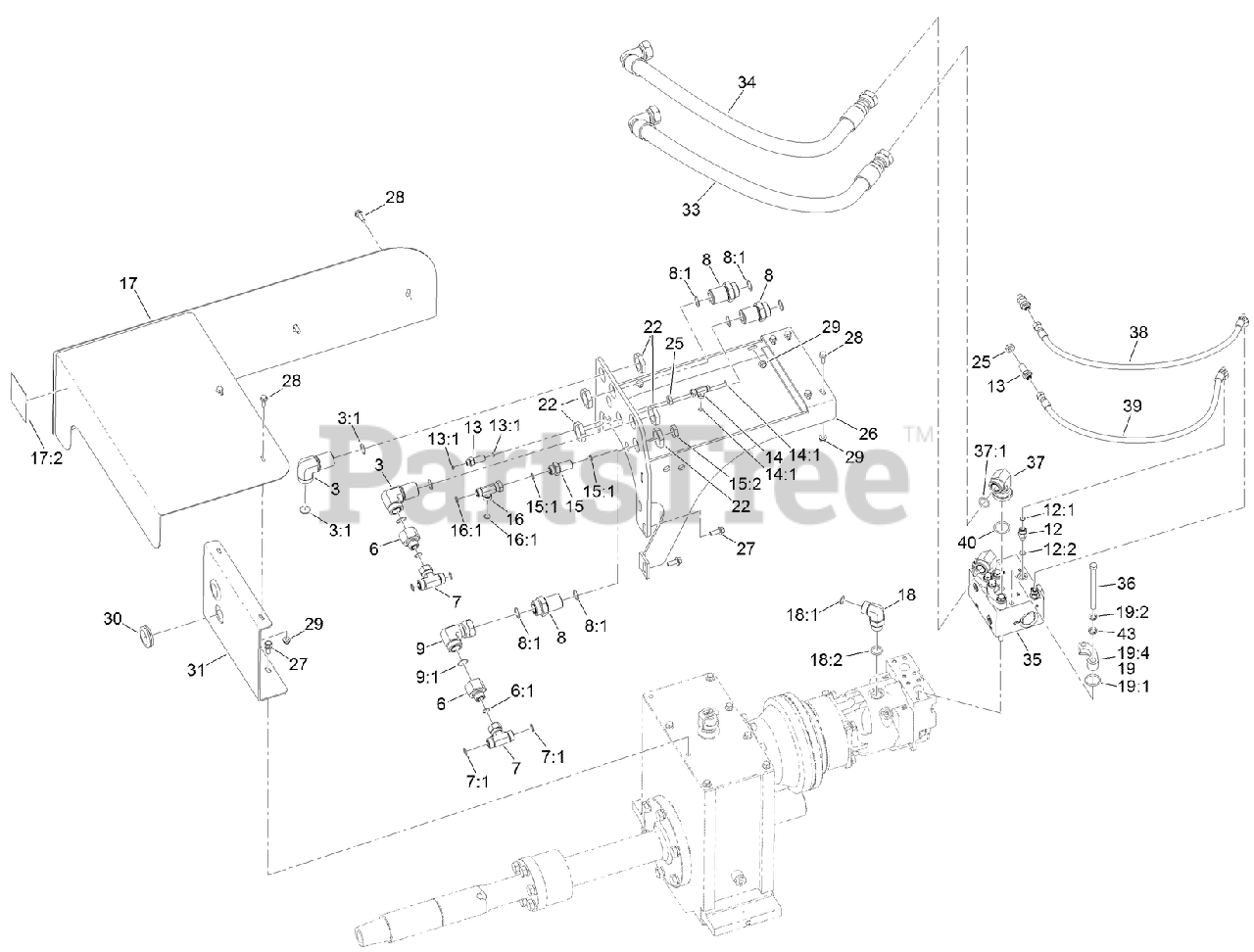

Carriage Guard and Mounting Assembly Parts Diagram

  • Title

3

Toro AU8OL91616

FITTING-ELBOW, 90

$

$

Not available

3:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

6

Toro AU8OA81016

FITTING-REDUCER

$

$

Currently unavailable

6:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

7

Toro 340-167

FITTING-HYD, TEE

$120.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

8

Toro 106-0060

ADAPTER-HYD

$111.99

$

Usually ships in 3-6 days

0

8:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

9

Toro 92-7645

FITTING-SWIVEL, 90 DEG

$52.99

$

Usually ships in 3-6 days

0

9:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

12

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

12:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

13

Toro 94-1444

UNION-BULKHEAD

$46.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

14

Toro 340-151

FITTING-HYD

$100.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-75

See Supercession: 237-21
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

15

Toro 340-161

FITTING-BULKHEAD

$111.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

15:2

Toro 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

16

Toro 340-104

FITTING-HYD, TEE

$114.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

17

Toro 130-4501

CARRIAGE GUARD ASM

$

$

Currently unavailable

17:2

Toro 125-6107

DECAL-WARNING

$

$

Currently unavailable

18

Toro 340-142

FITTING-ELBOW-90

$90.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

18:2

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

19

Toro AU114285A1

HYD FLANGE KIT

$78.99

$

Usually ships in 3-6 days

0

19:1

Toro 121-3904

O-RING

$6.99

$

Usually ships in 3-6 days

0

19:2

Toro 325-36

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

19:4

FLANGE-HALF, CODE 62

Note: Not serviced separately

$

$

Not available

22

Toro 340-128

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

25

Toro 340-78

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

26

Toro AU118010-03

MOUNT-HOSE CARRIER, ROTARY

$

$

Currently unavailable

27

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 8

0

28

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

29

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

30

Toro 103-7706

GROMMET

$5.49

$

Usually ships in 3-6 days

0

31

Toro AU119009-03

PLATE-SUPPORT, GUARD

$

$

Currently unavailable

33

Toro 131-9032

HYD HOSE ASM

$

$

Currently unavailable

34

Toro 131-9031

HYD HOSE ASM

$

$

Currently unavailable

35

Toro 127-0886

SPIKE CLIPPER MANIFOLD ASM

$

$

Currently unavailable

36

Toro 133-9625

SCREW-HH

$

$

Currently unavailable

37

Toro 133-9495

FITTING-ELBOW, 90 DEGREE

$

$

Currently unavailable

37:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

38

Toro 131-9029

HYD HOSE

$

$

Currently unavailable

39

Toro 131-9030

HYD HOSE ASM

$

$

Currently unavailable

40

Toro 121-3904

O-RING

$6.99

$

Usually ships in 3-6 days

0

43

Toro 325-37

SCREW-HH

$6.99

$

In Stock, only 1 left!

0
