25400 C - Toro Pro Sneak 360 Vibratory Plow (SN: 314000001 - 314999999) (2014) BATTERY ASSEMBLY Parts Diagram

Pro Sneak 360 Vibratory Plow

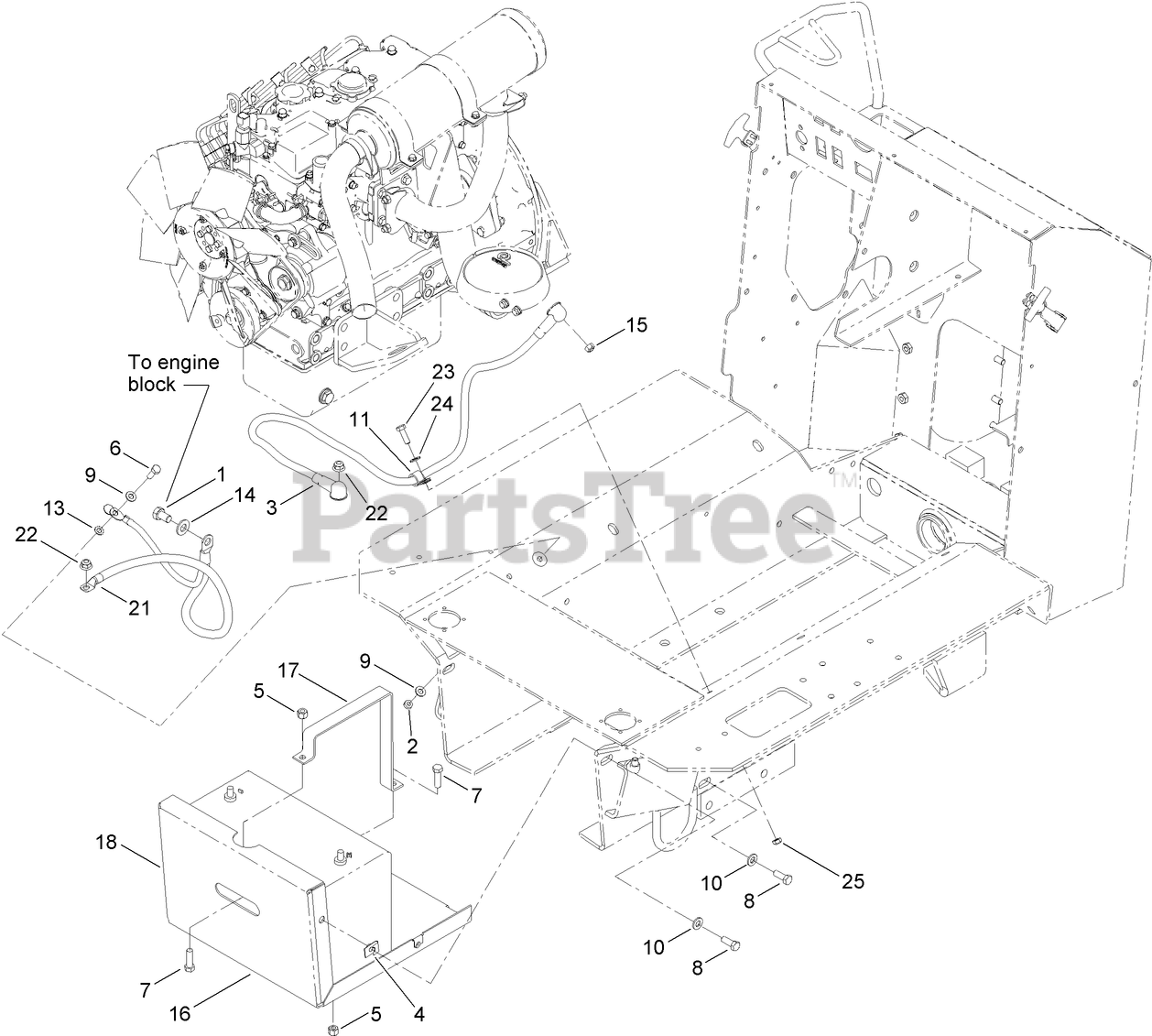

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 54-8100

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 97-1203

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

3

Toro 122-0113

CABLE-BATTERY, POSITIVE

$104.99

$

Usually ships in 3-6 days

0

4

Toro AU131-634

NUT-SPRING

$4.99

$

Usually ships in 3-6 days

0

5

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

8

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

13

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 11

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

16

BATTERY (1000CCA)

Note: Not serviced separately

$

$

Not available

16

BATTERY (1000CCA)

Note: Obtain locally.

$

$

Not available

17

Toro AUH436777-03

BRACKET-BATTERY

$103.99

$

Usually ships in 3-6 days

0

18

Toro AUH673382-01

RACK-BATTERY

$171.99

$

Usually ships in 3-6 days

0

21

Toro 122-0109

CABLE-BATTERY, NEGATIVE

$82.99

$

Usually ships in 3-6 days

0

22

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0
