25400 - Toro Pro Sneak 360 Vibratory Plow (SN: 313000001 - 313999999) (2013) HYDRAULIC PISTON MOTOR ASSEMBLY NO. AU239920A2 Parts Diagram

Pro Sneak 360 Vibratory Plow

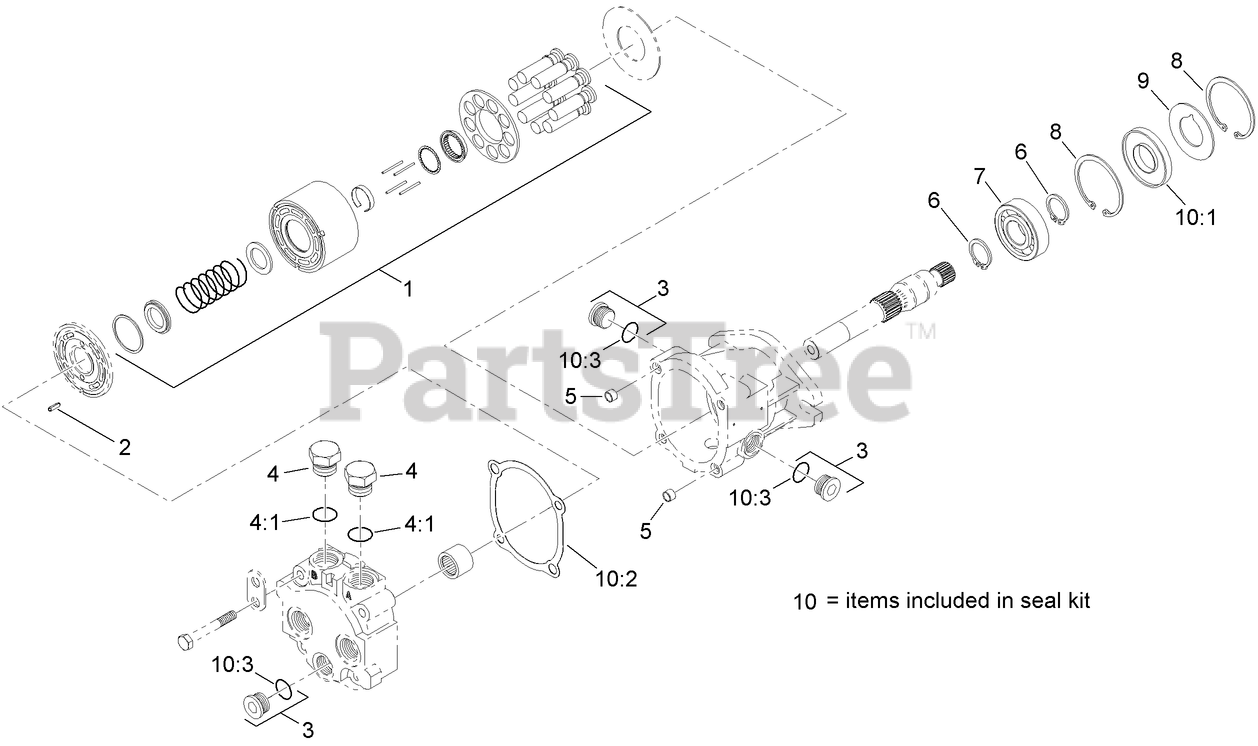

HYDRAULIC PISTON MOTOR ASSEMBLY NO. AU239920A2 Parts Diagram

  • Title
1

Toro 127-6247

CYLINDER BLOCK KIT

$2597.99

$

Usually ships in 3-6 days

0

2

Toro 83-3880

Pin-Spring

$2.99

$

Usually ships in 3-6 days

0

3

Toro 92-5717

PLUG-PIPE
(Superseded to 125-5303)

$46.99

$

Usually ships in 3-6 days

0

4

$86.99

$

Usually ships in 3-6 days

0

4:1

O-RING

Note: Not serviced separately

$

$

Not available

5

Toro 69-3230

PIN-SPRING

$36.99

$

Usually ships in 3-6 days

0

6

Toro 69-3170

RING-RETAINING

$17.99

$

Usually ships in 3-6 days

0

7

Toro 75-0460

BEARING-BALL

$257.99

$

Usually ships in 3-6 days

0

8

Toro 69-3200

RING-RETAINING

$30.99

$

Usually ships in 3-6 days

0

9

Toro 95-4400

WASHER-BACKUP

$11.99

$

Usually ships in 3-6 days

0

10

Toro 127-6246

SEAL KIT

$350.99

$

Usually ships in 3-6 days

0

10:1

Toro 69-3190

SEAL-LIP

$130.99

$

Usually ships in 3-6 days

0

10:2

Gasket-Cap, End

Note: Not serviced separately

$

$

Not available

10:3

O-RING

Note: Not serviced separately

$

$

Not available
