25432 E - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 400000000 - 999999999) HYDRAULIC CYLINDER ASSEMBLY AU305352A1 Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

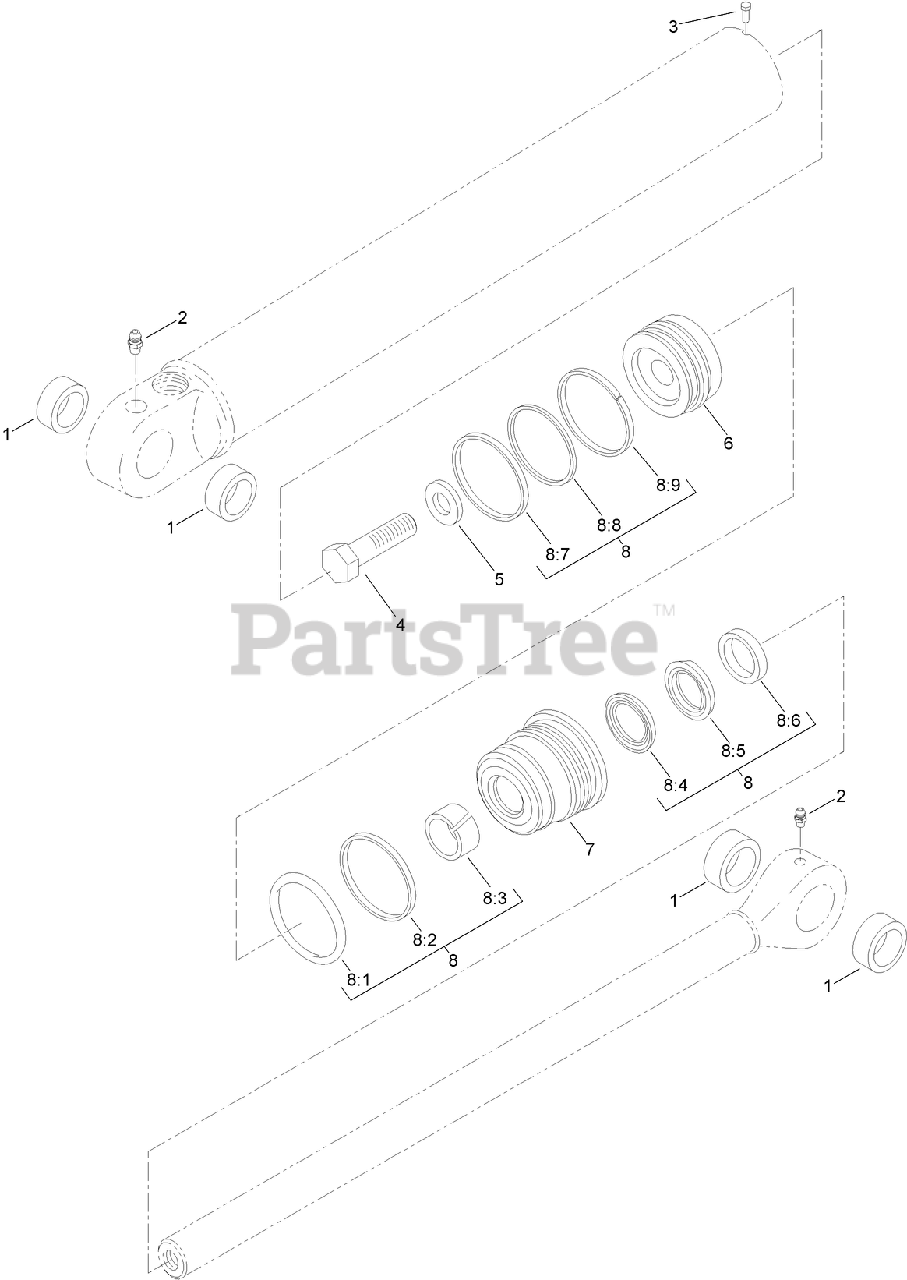

HYDRAULIC CYLINDER ASSEMBLY AU305352A1 Parts Diagram

  • Title

1

Toro AUD30930

BUSHING

$

$

Currently unavailable

2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 6

0

3

Toro AU276-2446

SCREW

$

$

Not available

4

Toro AU28-1440

BOLT

$

$

Not available

5

Toro AUG32317

WASHER

$

$

Currently unavailable

6

Toro AU305356A1

PISTON

$

$

Currently unavailable

7

Toro AU1346417C1

GLAND

$

$

Not available

8

Toro AU1543256C1

SEAL KIT

$

$

Not available

8:1

Toro AU238-5231

O-RING

$

$

Not available

8:2

Toro AUG109298

RING-BACKUP

$

$

Currently unavailable

8:3

Toro AUG102424

BEARING-ROD

$

$

Not available

8:4

SEAL-BUFFER

Note: Not serviced separately

$

$

Not available

8:5

SEAL-ROD

Note: Not serviced separately

$

$

Not available

8:6

Toro AUD95142

WIPER-ROD

$21.99

$

Usually ships in 3-6 days

0

8:7

Toro AUG102288

SEAL-Piston

$

$

Not available

8:8

Toro AUG100444

RING-LOADER

$

$

Currently unavailable

8:9

Toro AUG100449

RING-WEAR

$

$

Not available
