26624 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

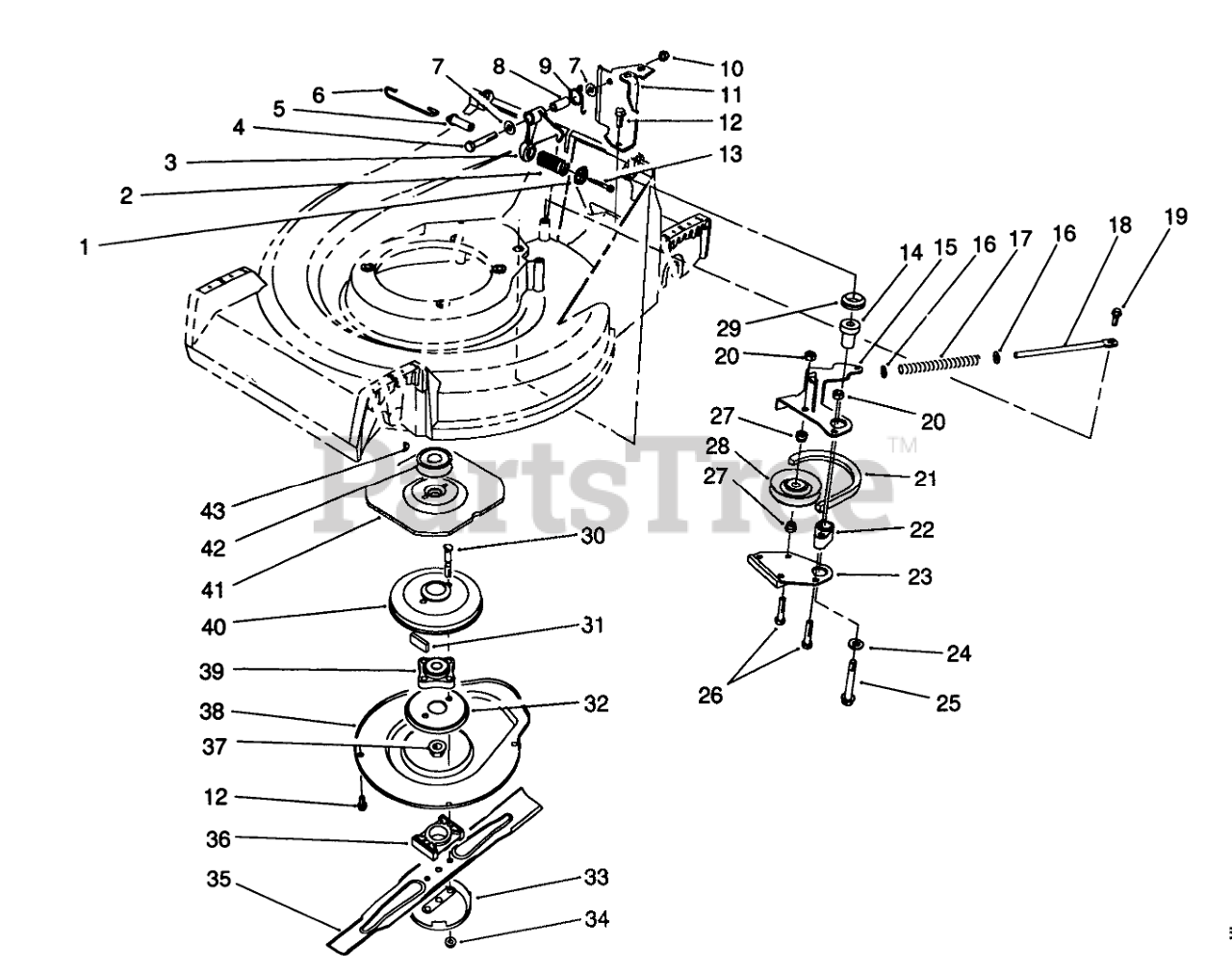

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

2

Toro 65-5260

COMPRESSION SPRING

$

$

Not available

3

Toro 65-5700

CRANK

$5.99

$

Usually ships in 3-6 days

0

4

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

5

Toro 65-5310

SPRING PIN

$

$

Not available

6

Toro 65-5470

CONTROL LINK

$

$

Not available

7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 65-5690

STRAIGHT BUSHING

$

$

Not available

9

Toro 66-0200

TORSION SPRING

$

$

Not available

10

Toro 32128-44

NUT

$2.99

$

Usually ships in 3-6 days

0

11

Toro 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 65-5720

BBC PM BUSHING

$16.99

$

Usually ships in 3-6 days

0

15

Toro 66-0090

Lever
(Superseded to 66-0090-03)

$26.99

$

Usually ships in 3-6 days

0

16

Toro 65-5390

PLAIN FLAT WASHER-PLTD

$

$

Not available

17

Toro 65-5270

COMPRESSION SPRING

$

$

Not available

18

Toro 65-5320

SPRING ROD

$

$

Not available

19

Toro 65-5670

SCREW-SHOULDER

$

$

Not available

20

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 65-5740

V-BELT

$26.99

$

Usually ships in 3-6 days

0

22

Toro 65-5070

BRAKE PLATE HUB

$16.99

$

Usually ships in 3-6 days

0

23

Toro 65-5780

BRAKE SHOE

$76.99

$

Usually ships in 3-6 days

0

24

Toro 65-5380

WASHER-PLAIN

$

$

Not available

25

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

26

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

27

Toro 65-5130

IDLER PULLEY HUB

$10.99

$

Usually ships in 3-6 days

0

28

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, Qty 16

0

29

Toro 253-151

V-RING SEAL

$

$

Not available

30

Toro 42-3190

BOLT-BLADE

$11.99

$

In Stock, Qty 20+

0

31

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 8

0

32

Toro 65-5330

Screen-BBC
(Superseded to 65-5330-03)

$

$

Not available

33

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

34

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

35

Toro 62-7700

Key
(Superseded to 62-7700-03)

$34.99

$

In Stock, Qty 12

0

36

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

In Stock, only 1 left!

0

37

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

38

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available

39

Toro 42-6890

HUB ASM

$93.99

$

In Stock, only 1 left!

0

40

Toro 62-3890

BRAKE DRUM

$

$

Not available

41

Toro 65-5300

FLYWHEEL - BBC
(Superseded to 65-5300-03)

$

$

Not available

42

Toro 62-7560

PULLEY

$41.99

$

In Stock, only 2 left!

0

43

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0
