26624 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

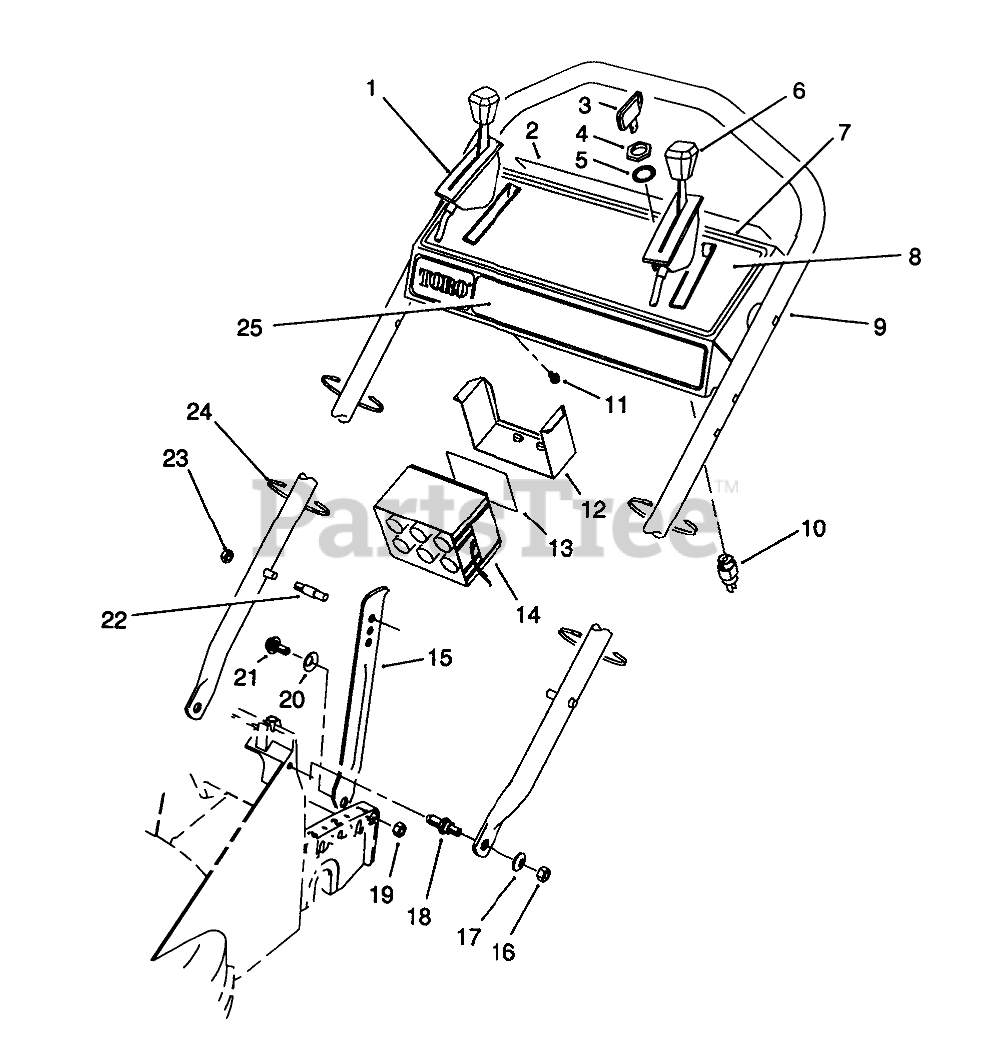

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5530

Control-Ground Speed Bend Type #3 Sheath Lg. 51-1/4" Wire Lg. 2-1/8"
(Superseded to 74-3560)

$53.99

$

Usually ships in 3-6 days

0

2

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

3

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 13

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

6

Toro 66-0230

ControI-Throttle Bend Type #2 Sheath Lg. 44-3/4" Wire Lg. 2-1/2"
(Superseded to 66-0236)

$109.99

$

Usually ships in 3-6 days

0

7

Toro 65-5760

Panel-Control
(Superseded to 13-2229)

$132.99

$

Usually ships in 3-6 days

0

8

Toro 63-9040

DECAL - CONTROL PANEL

$

$

Not available

9

Toro 65-5770

HANDLE

$

$

Not available

10

Toro 46-5780

Switch-Starter (Incl. Ref. #4-5)

$29.99

$

In Stock, Qty 15

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

13

Toro 55-8190

Decal
(Superseded to 92-8659)

$13.99

$

Usually ships in 3-6 days

0

14

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

In Stock, only 2 left!

0

15

Toro 65-5730

HANDLE LATCH

$

$

Not available

16

Toro 3296-66

Nut-Lock
(Superseded to 3296-4)

$0.99

$

In Stock, Qty 10

0

17

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

18

Toro 65-5090

SHOULDER SCREW STUD

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3290-478

WASHER-BELLEVILLE

$1.99

$

Usually ships in 3-6 days

0

21

Toro 65-5180

SHOULDER SCREW LATCH

$

$

Not available

22

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

23

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

25

Toro 65-5650

DECAL - KEY LECTRIC

$

$

Not available

Toro 49-8312

WIRE HARNESS

$101.99

$

Usually ships in 3-6 days

0

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0
