26635 BG - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

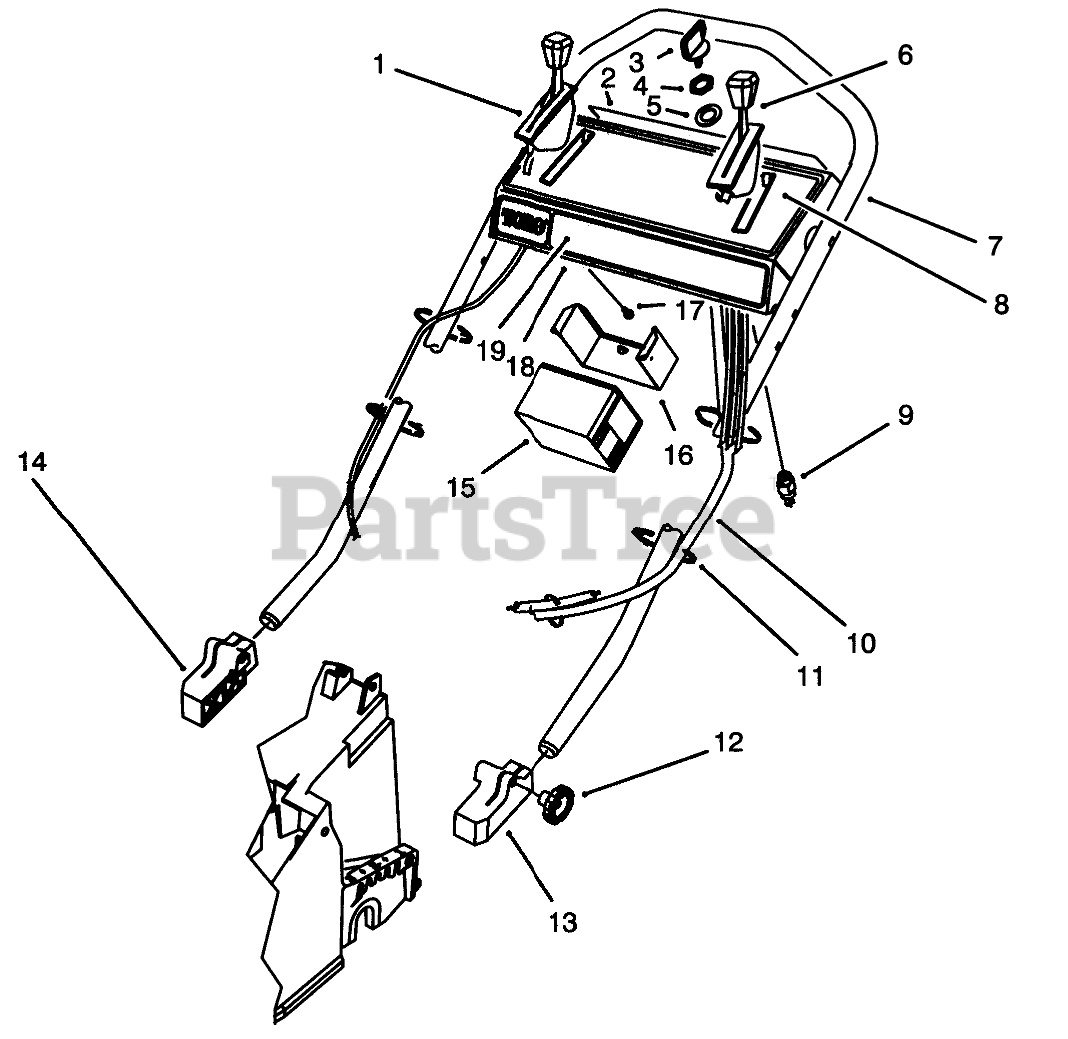

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 76-2713

GROUND SPEED CONTROL

$87.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

6

Toro 66-0236

THROTTLE CONTROL

$109.99

$

Usually ships in 3-6 days

0

7

Toro 71-9690

HANDLE PVC DIP

$

$

Not available

8

Toro 71-9875

DECAL-INSTRUCTION KEY

$

$

Not available

9

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, Qty 15

0

10

Toro 80-4791

Harness-Wire
(Superseded to 80-4794)

$

$

Not available

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

12

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

13

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

14

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

15

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

16

Toro 63-8480

BATTERY RETAINER

$

$

Not available

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 16-1739

Panel-Control (Incl. Ref. #2, 8 & 19)

$

$

Not available

19

Toro 71-9871

DECAL - PANEL KEY

$

$

Not available

Toro 22-4710

Charger
(Superseded to 98-2391)

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0
