26635 BG - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

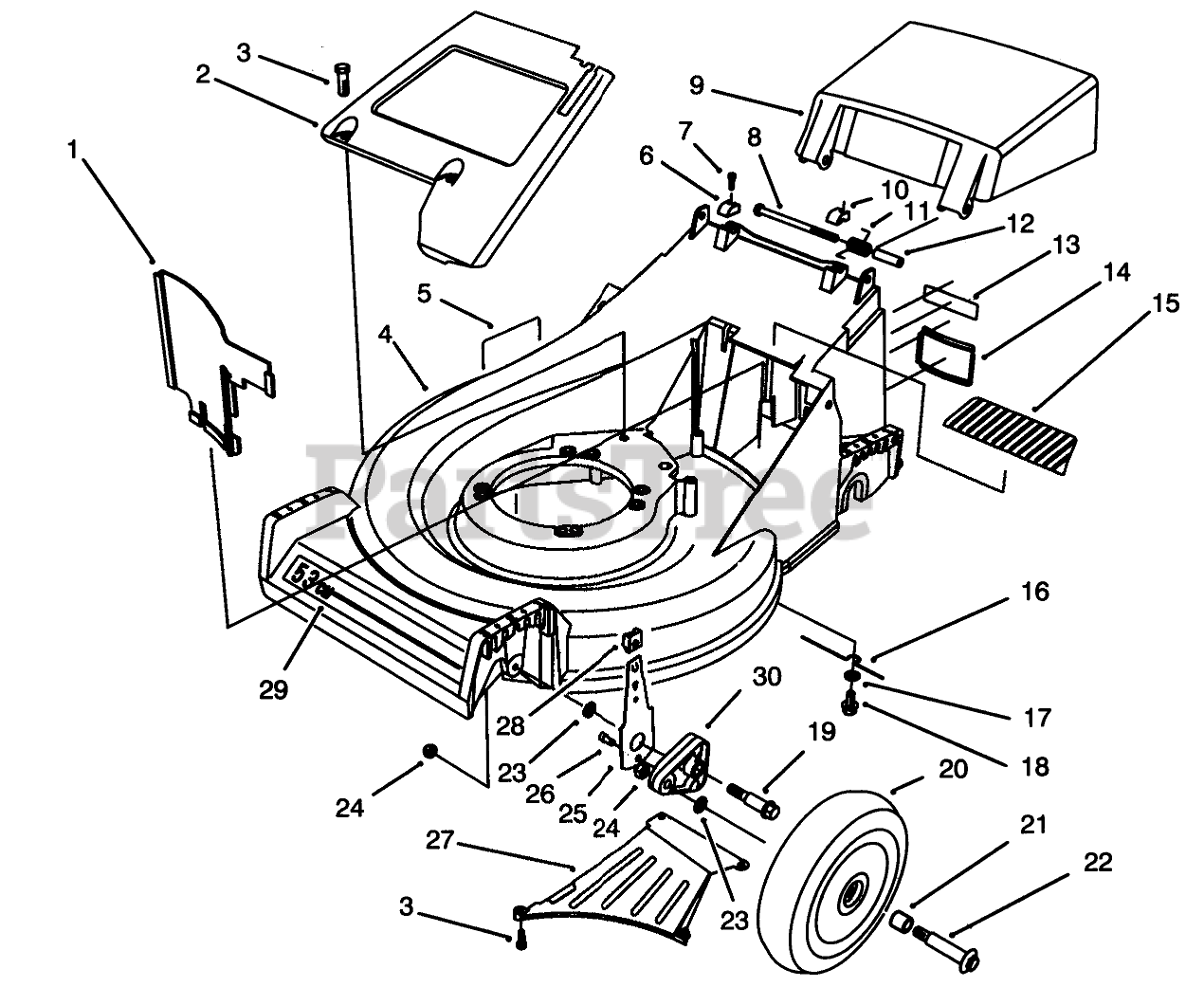

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

2

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$46.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 16-1769

Housing-53cm (Incl. Ref. #5 & 29)

$

$

Not available

5

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

6

Toro 71-7910

CAP-HINGE BOLT, RH

$4.99

$

Usually ships in 3-6 days

0

7

Toro 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

8

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

9

Toro 71-9800

Door Discharge
(Superseded to 17-1569)

$102.99

$

Usually ships in 3-6 days

0

10

Toro 71-7900

CAP-HINGE BOLT, LH

$4.99

$

Usually ships in 3-6 days

0

11

Toro 71-9840

SPRING-DOOR

$12.99

$

Usually ships in 3-6 days

0

12

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

13

Toro 66-0680

DECAL FRENCH REGUL.

$

$

Not available

14

Toro 71-9650

COVER-ACCESS

$7.99

$

Usually ships in 3-6 days

0

15

Toro 71-9920

COVER-TOP

$

$

Not available

16

Toro 66-0620

RETAINER-BELT

$

$

Not available

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

19

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

20

Toro 14-9949

Wheel & Tire Assembly (Incl. Ref. #21)
(Superseded to 51-2751)

$30.99

$

In Stock, only 4 left!

0

21

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

22

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

23

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 66-0540

FRONT SPRING ARM ASM

$16.99

$

Usually ships in 3-6 days

0

26

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

27

Toro 71-9640

Ramp-Discharge
(Superseded to 71-9640-03)

$

$

Not available

28

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

29

Toro 71-9870

DECAL

$

$

Not available

30

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

Toro 17368

Decal-Front (Model No. 26635BG Only)

Note: Not illustrated

$

$

Currently unavailable

Toro 11715

Decal-Triangle (Model No. 26630BG Only)

Note: Not illustrated

$

$

Currently unavailable

Toro 17738

Decal-Safety (Model No. 26630BG Only)

Note: Not illustrated

$

$

Currently unavailable

Toro 18076

Spacer, Drive Gear
(Superseded to 703641)

Note: Not illustrated

$

$

Not available
