26638 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) REAR AXLE ASSEMBLY Parts Diagram

Walk-Behind Mower

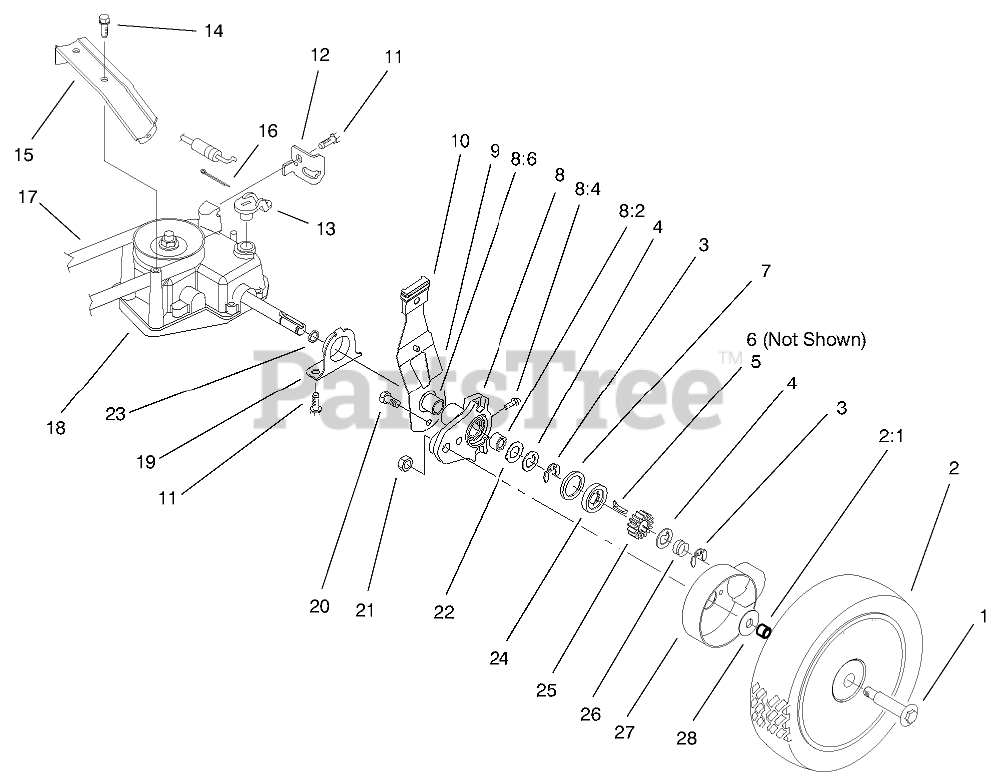

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 6

0

2

Toro 99-8136

WHEEL AND GEAR ASM

$62.99

$

Usually ships in 3-6 days

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

5

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

6

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

7

Toro 65-4710

RING-FRICTION

$2.99

$

In Stock, Qty 20+

0

8

Toro 65-5042

PIVOT ARM ASM

$55.99

$

Usually ships in 3-6 days

0

8:2

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

8:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 8

0

8:6

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

9

Toro 65-5440

SPRING ARM ASM

$23.99

$

Usually ships in 3-6 days

0

10

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 76-2930

RETAINER-CABLE

$

$

Not available

13

Toro 76-0920

LEVER-SHIFT

$6.49

$

Usually ships in 3-6 days

0

14

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

15

Toro 65-5190

Bracket-BeltGuide
(Superseded to 65-5190-03)

$19.99

$

Usually ships in 3-6 days

0

16

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

17

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 20+

0

18

Toro 62-6673

GEARCASE ASM

$753.99

$

Usually ships in 3-6 days

0

19

Toro 66-0360

CAP-END

$8.99

$

Usually ships in 3-6 days

0

20

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

21

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0

22

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

23

Toro 237-153

O-RING

$3.49

$

In Stock, only 3 left!

0

24

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

25

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

26

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

27

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, Qty 19

0

28

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0
