26682 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

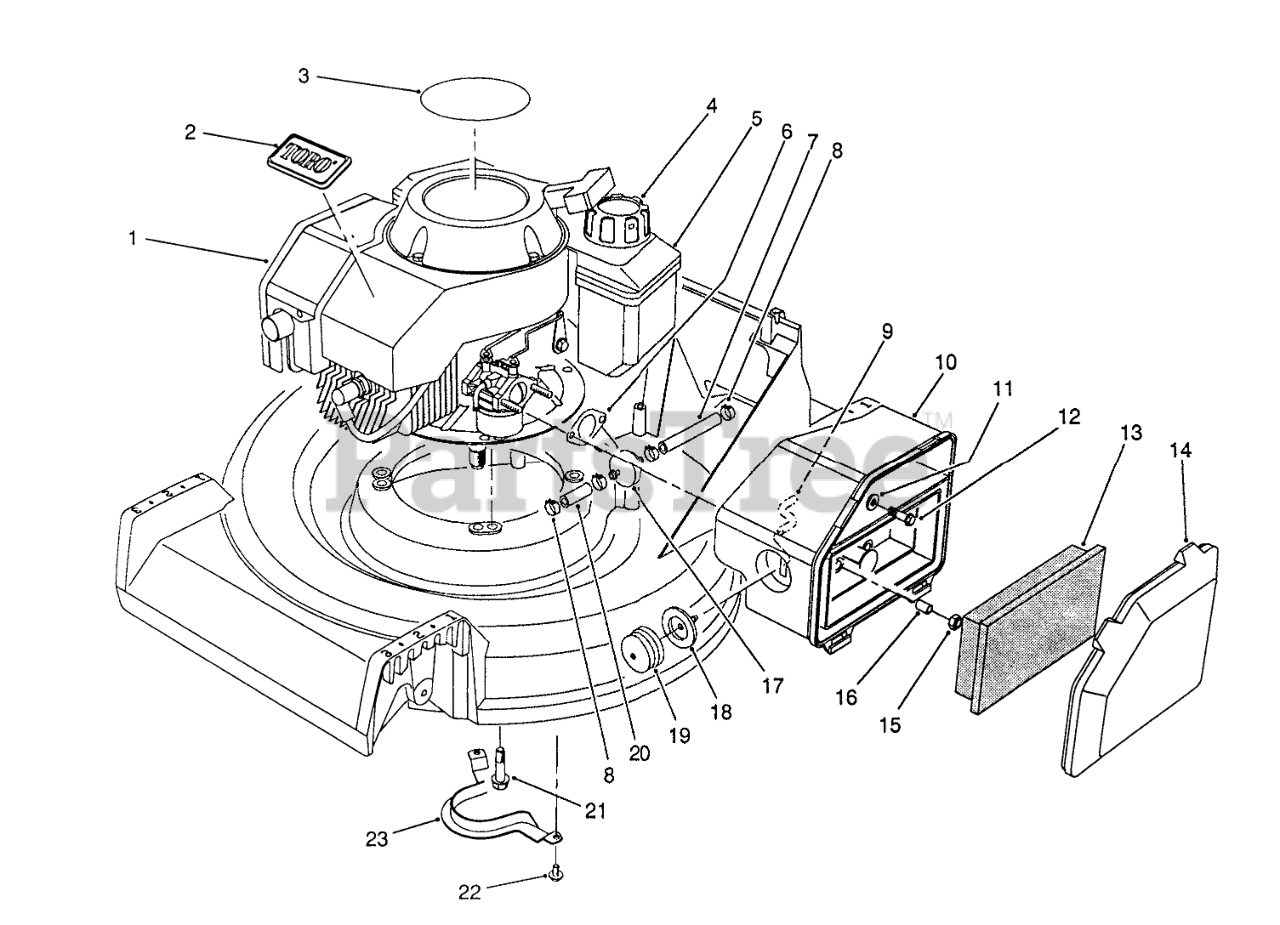

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 51-0402

Engine
(Superseded to 98-2049)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 3 left!

0

3

Toro 66-0510

DECAL - 2 CYC RECOIL

$

$

Not available

4

Toro 55-3575

GAS CAP ASM

$17.99

$

In Stock, only 3 left!

0

5

Toro 81-0162

FUEL TANK ASM
(Superseded to 99-5263)

$

$

Not available

6

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

7

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 15

0

9

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, Qty 8

0

10

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

11

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

13

Toro 63-9380

ELEMENT-AIR CLEANER

$11.99

$

In Stock, Qty 7

0

14

Toro 63-9340

COVER-AIR CLEANER

$49.99

$

In Stock, only 2 left!

0

15

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

16

Toro 62-3980

SPACER

$2.49

$

Usually ships in 3-6 days

0

17

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

18

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

19

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

20

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

21

Toro 66-9300

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0
