29519 - Toro 30" Stand-On Aerator (SN: 400000000 - 999999999) ELECTRICAL ASSEMBLY Parts Diagram

30" Stand-On Aerator

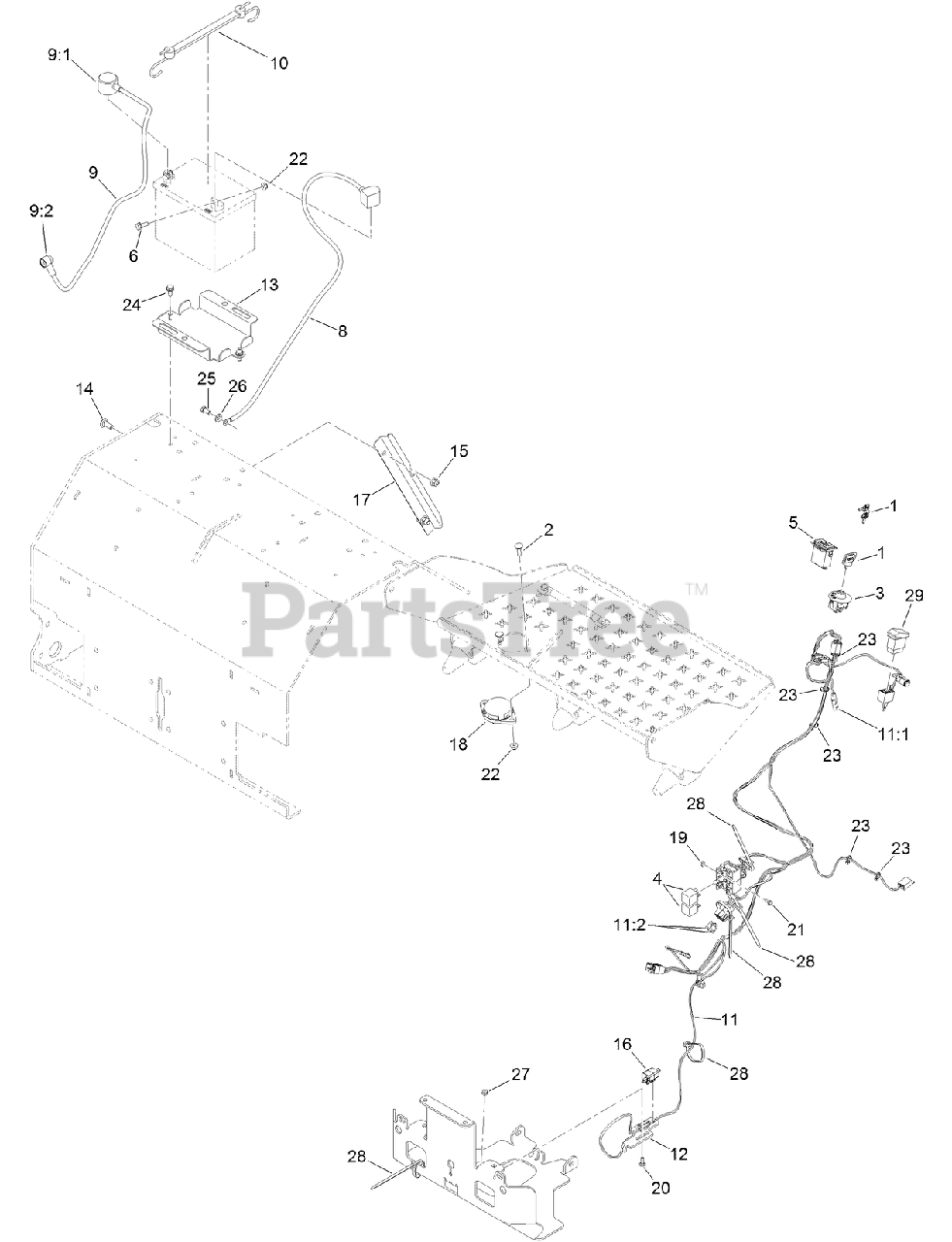

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-603511

KEYS-IGNITION (SPARE PAIR)

$2.49

$

In Stock, Qty 20+

0

1

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

2

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

3

Toro 137-4100

SWITCH-IGNITION

$37.99

$

In Stock, Qty 20+

0

4

Toro 1-643275

RELAY

$22.99

$

In Stock, Qty 20+

0

5

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 6

0

6

Toro 3234-5

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

8

Toro 117-6422

CABLE-BATTERY, BLACK

$32.99

$

Usually ships in 3-6 days

0

9

Toro 109-7630

POSITIVE BATTERY CABLE ASM

$42.99

$

In Stock, only 3 left!

0

9:1

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

9:2

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

10

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

11

Toro 126-9480

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$297.99

$

Usually ships in 3-6 days

0

11:1

Toro 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

11:2

Toro 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, only 4 left!

0

12

Toro 116-7589

MOUNT-SWITCH

$41.99

$

Usually ships in 3-6 days

0

13

Toro 116-9383-03

BRACKET-BATTERY

$41.99

$

Usually ships in 3-6 days

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

17

Toro 116-9394-03

GUARD-HARNESS

$20.99

$

Usually ships in 3-6 days

0

18

Toro 92-6282

SWITCH-SEAT

$33.99

$

In Stock, only 3 left!

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 12

0

21

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

25

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0

26

Toro 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

29

Toro 95-8999

SWITCH

$42.99

$

In Stock, only 2 left!

0
