29519 - Toro 30" Stand-On Aerator (SN: 400000000 - 999999999) TINE ASSEMBLY Parts Diagram

30" Stand-On Aerator

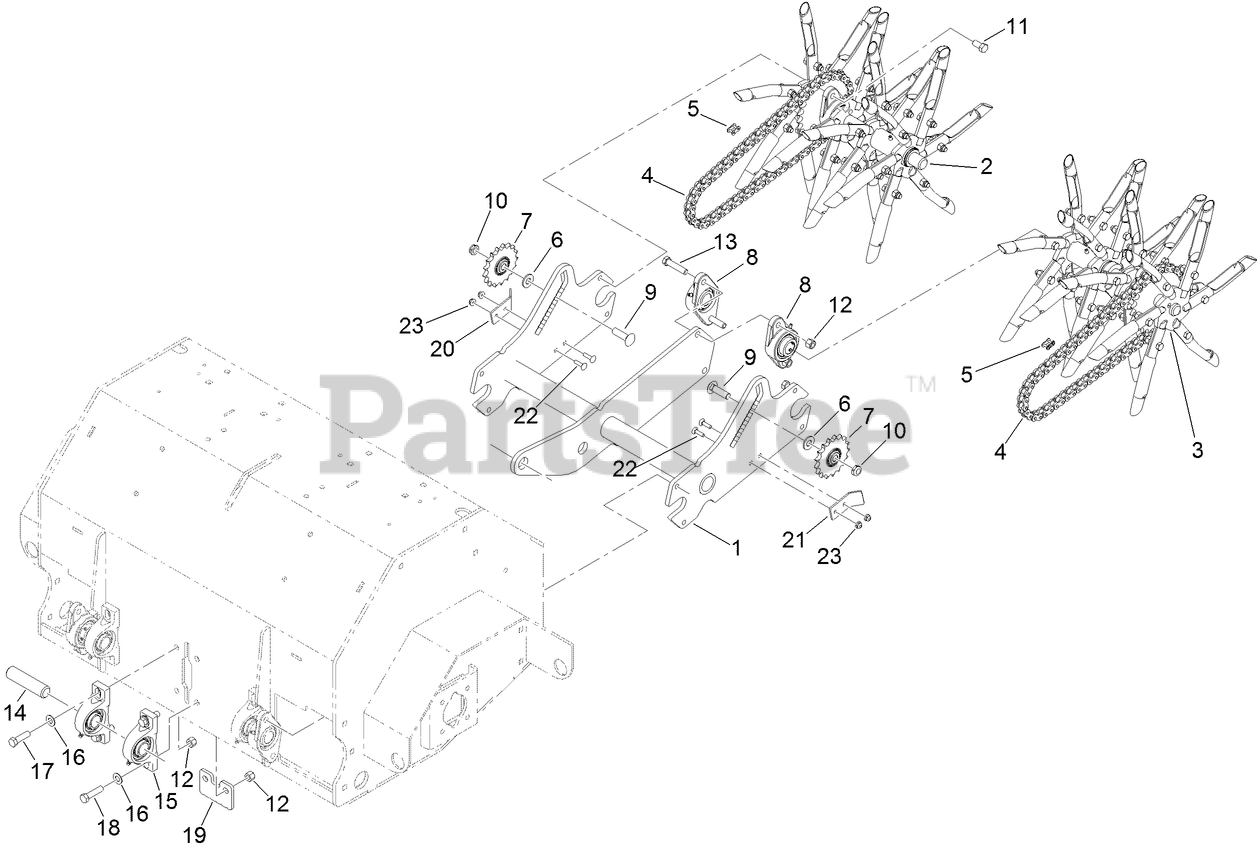

TINE ASSEMBLY Parts Diagram

  • Title

1

Toro 126-4817-03

ARM-TRAIL
(Superseded to 135-5952-03)

$477.99

$

Usually ships in 3-6 days

0

2

Toro 116-6738

RH TINE WHEEL ASM
(Superseded to 135-2507)

$1008.99

$

Usually ships in 3-6 days

0

3

Toro 116-6739

LH TINE WHEEL ASM
(Superseded to 135-2510)

$1008.99

$

Usually ships in 3-6 days

0

4

Toro 126-8808

CHAIN-ROLLER

$205.99

$

In Stock, only 2 left!

0

5

Toro 116-6897

LINK-CONNECTING

$7.99

$

In Stock, Qty 6

0

6

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

7

Toro 126-9274

SPROCKET-IDLER
(Superseded to 126-9108)

$103.99

$

In Stock, Qty 11

0

8

Toro 116-6777

BEARING-FLANGE, 2 BOLT

$44.99

$

In Stock, only 4 left!

0

9

Toro 3233-14

SCREW-CARR

$16.99

$

In Stock, Qty 17

0

10

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Toro 116-7109

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, only 2 left!

0

12

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 324-8

SCREW-HH

$5.99

$

In Stock, Qty 14

0

14

Toro 116-6629

SHAFT

$20.99

$

Usually ships in 3-6 days

0

15

Toro 116-6756

BEARING-PILLOW BLOCK

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$52.99

$

In Stock, only 3 left!

0

16

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

17

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 116-7327-01

PLATE-DOWNSTOP

$9.99

$

Usually ships in 3-6 days

0

20

Toro 126-4192-03

GUARD-CHAIN, RH

$13.99

$

In Stock, only 2 left!

0

21

Toro 126-4193-03

GUARD-CHAIN, LH

$13.99

$

Usually ships in 3-6 days

0

22

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 15

0

23

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
