29645 - Toro 50cm Mulching Walk-Behind Mower (SN: 314000001 - 314999999) (2014) HANDLE ASSEMBLY Parts Diagram

50cm Mulching Walk-Behind Mower

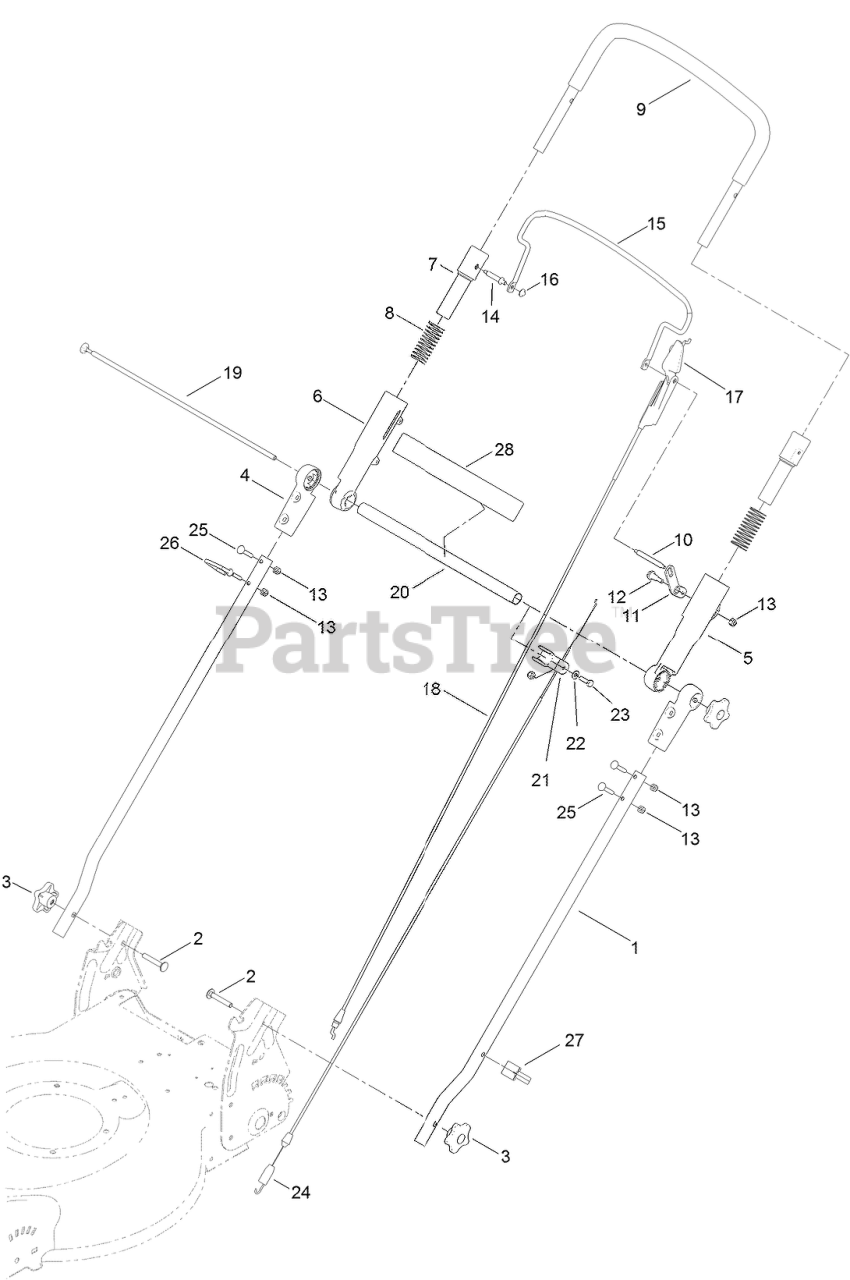

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-2334-03

HANDLE-LOWER

$32.99

$

Usually ships in 3-6 days

0

2

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

4

Toro 107-3865

MOUNT-HANDLE, LOWER

$12.99

$

In Stock, only 1 left!

0

5

Toro 112-1544

SLEEVE-OUTER, LH

$16.99

$

In Stock, only 3 left!

0

6

Toro 112-1545

SLEEVE-OUTER, RH

$16.99

$

In Stock, only 3 left!

0

7

Toro 112-8754

SLEEVE-INNER

$6.99

$

In Stock, Qty 11

0

8

Toro 107-3869

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 7

0

9

Toro 108-0974

UPPER HANDLE ASM

$83.99

$

In Stock, only 1 left!

0

10

Toro 108-1008

PIN-BAIL, LH

$6.49

$

In Stock, Qty 6

0

11

Toro 107-3893

LEVER-TRACTION

$3.99

$

In Stock, Qty 15

0

12

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, Qty 11

0

13

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

14

Toro 108-0959

PIN-HANDLE

$6.49

$

In Stock, only 3 left!

0

15

Toro 110-1819-03

BAIL-BRAKE

$25.99

$

Usually ships in 3-6 days

0

16

Toro 108-9378

RETAINER-PUSH ON

$1.49

$

Usually ships in 3-6 days

0

17

Toro 112-8764

STOP-PIVOT

$4.99

$

In Stock, Qty 7

0

18

Toro 121-5820

CABLE-BRAKE

$23.99

$

Usually ships in 3-6 days

0

19

Toro 107-3871

ROD-THREADED

$18.99

$

In Stock, only 2 left!

0

20

Toro 107-3867-03

TUBE-CROSS

$24.99

$

Usually ships in 3-6 days

0

21

Toro 112-8801

CLAMP-CABLE

$11.99

$

In Stock, only 1 left!

0

22

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 121-2338

CABLE-TRACTION

$30.99

$

Usually ships in 3-6 days

0

25

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 11

0

26

Toro 107-3908

GUIDE-ROPE, UPPER

$4.49

$

In Stock, Qty 5

0

27

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

28

Toro 120-3907

DECAL-ADS

$9.49

$

Usually ships in 3-6 days

0
