30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 007000001 - 007999999) (1987) MAGNETIC FLYWHEEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

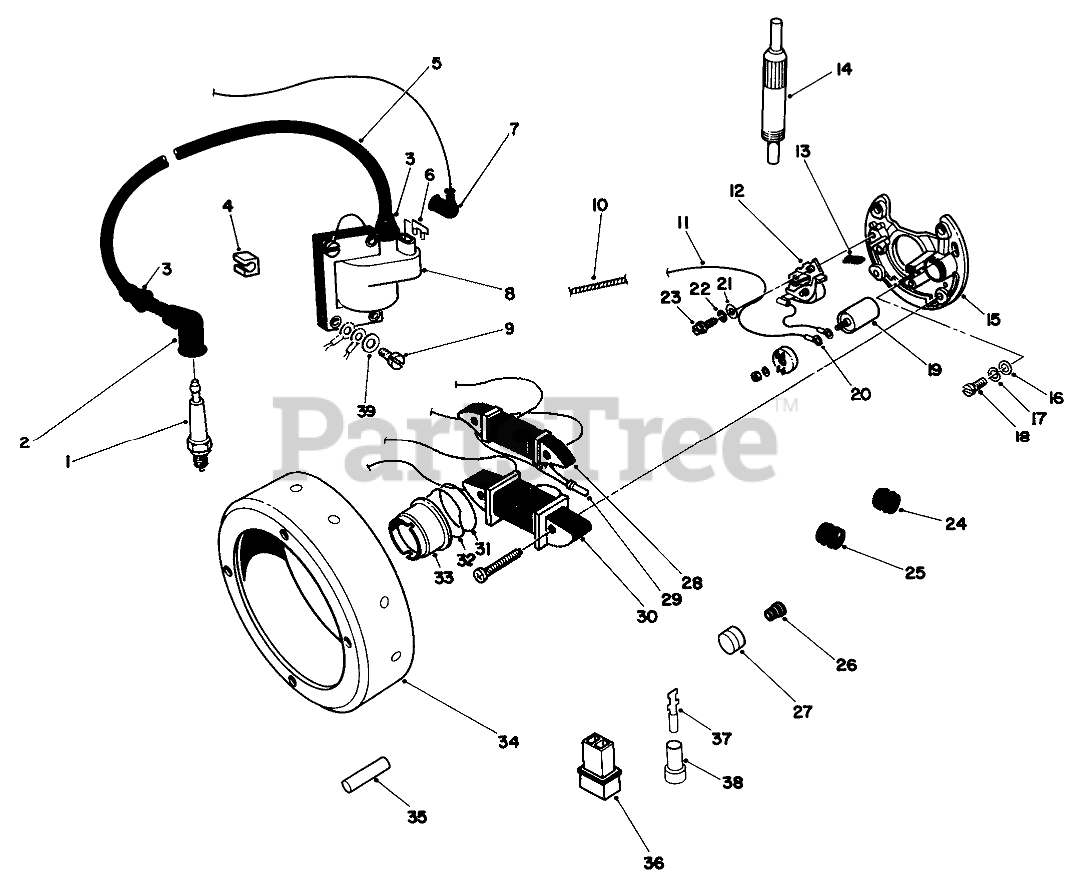

MAGNETIC FLYWHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 55-6430

Spark Plug

$

$

Not available

2

Toro 55-6420

SPARK PLUG CAP

$

$

Not available

3

Toro 55-6230

Rubber Socket

$

$

Not available

4

Toro 59-9100

Clamp

$

$

Not available

5

Toro 55-6220

Cable-Ignition

$

$

Not available

6

Toro 55-6590

Connector

$

$

Not available

7

Toro 55-6570

Cap

$

$

Not available

8

Toro 59-9090

Coil-Ignition

$

$

Not available

9

Toro 59-9080

Capscrew-Socket Head

$

$

Not available

10

Toro 55-6300

Band-Spiral
(Superseded to 55-6610)

$

$

Not available

11

Toro 55-6600

Wire

$

$

Not available

12

Toro 55-6190

POINT SET

$

$

Not available

13

Toro 55-6310

Lubricating Wick

$

$

Not available

14

Toro 55-6490

Gauge-Timing

$

$

Not available

15

Toro 59-9060

Plate-Armature

$

$

Not available

16

Toro 55-6360

Washer

$

$

Not available

17

Toro 55-6290

Lockwasher

$

$

Not available

18

Toro 55-6350

Socket-Capscrew

$

$

Not available

19

Toro 55-6200

Condenser

$

$

Not available

20

Toro 59-9140

Terminal

$

$

Not available

21

Toro 59-9120

Washer

$

$

Not available

22

Toro 59-9130

Lockwasher

$

$

Not available

23

Toro 59-9110

Capscrew-Socket Head

$

$

Not available

24

Toro 55-6540

Grommet

$

$

Not available

25

Toro 55-6550

Grommet

$

$

Not available

26

Toro 55-6380

Grommet

$

$

Not available

27

Toro 55-6370

PLUG

$

$

Not available

28

Toro 55-6520

Lighting Coil

$

$

Not available

29

Toro 55-6580

Connector

$

$

Not available

30

Toro 55-6530

Coil-Lighting

$

$

Not available

31

Toro 55-6340

Washer

$

$

Not available

32

Toro 55-6330

Locking Ring

$

$

Not available

33

Toro 55-6320

Cam

$

$

Not available

34

Toro 59-9050

Flywheel-Magnetic

$

$

Not available

35

Toro 55-6560

Sleeve

$

$

Not available

36

Toro 55-6650

Connector

$

$

Not available

37

Toro 55-6660

Pin

$

$

Not available

38

Toro 55-6640

Connector

$

$

Not available

39

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 59-9070

Repair Kit (Incl. Ref. #12, 13, 19 & 21-23)

Note: Not Illustrated.

$

$

Not available
