30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 008000001 - 008999999) (1988) AIR CLEANER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

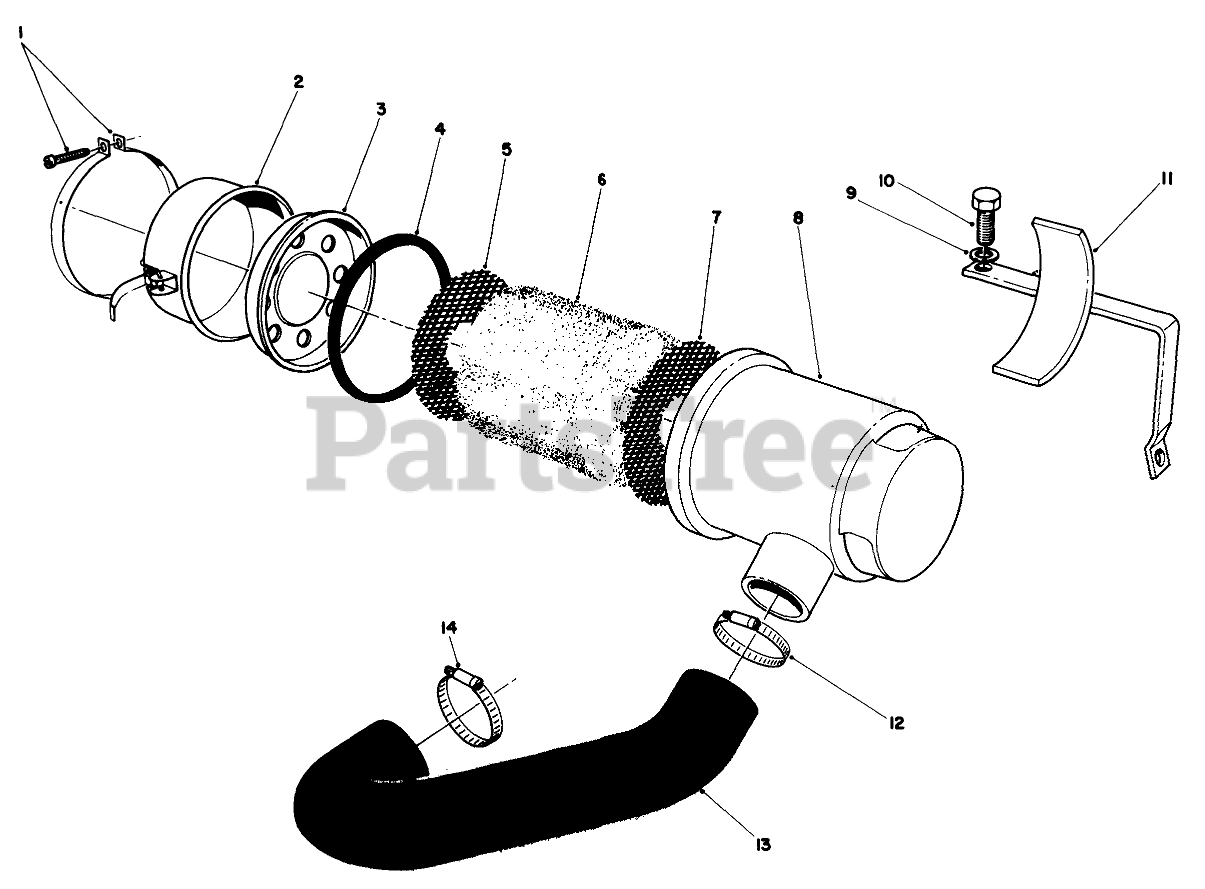

AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 55-5980

Tension Clamp

$

$

Not available

2

Toro 55-6690

OIL PAN

$

$

Not available

3

Toro 55-6710

PAN

$

$

Not available

4

Toro 55-6680

Gasket

$

$

Not available

5

Toro 55-6720

SCREEN

$

$

Not available

6

Toro 55-6670

Cartridge-Filter

$

$

Not available

7

Toro 55-6730

SCREEN

$

$

Not available

8

Toro 55-6030

Oil Bath Air Cleaner Assembly (Incl. Ref. #2-7)

$

$

Not available

9

Toro 55-5070

Lockwasher

$

$

Not available

10

Toro 55-6020

Screw-Hex Head

$

$

Not available

11

Toro 55-5970

Support

$

$

Not available

12

Toro 55-6000

Clamp-Tension

$

$

Not available

13

Toro 55-6040

HOSE

$

$

Not available

14

Toro 55-6010

Clamp-Tension

$

$

Not available

Toro 59-9040

Repair Set

$

$

Not available
