30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

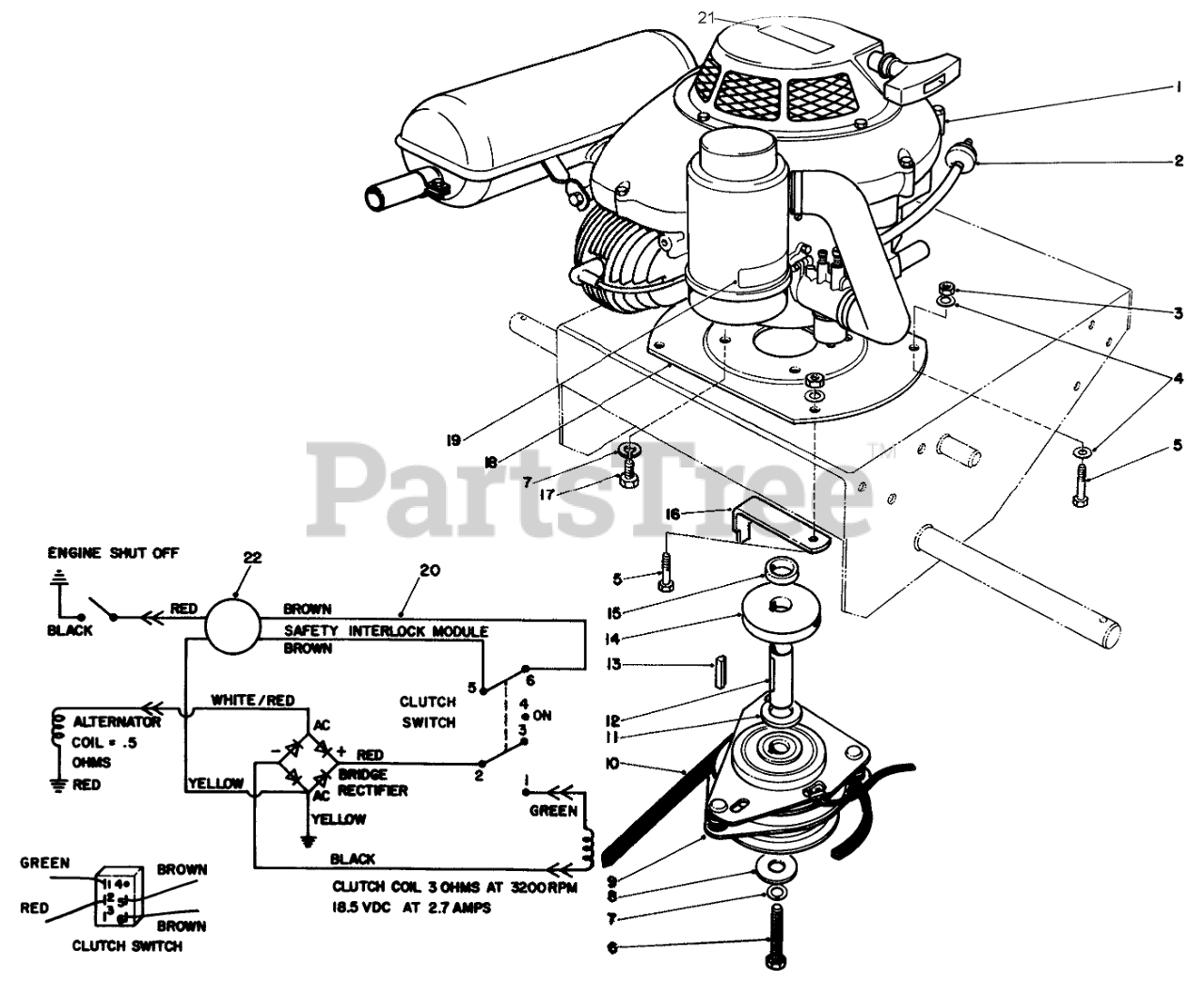

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 71-3020

Engine Assembly
(Superseded to 71-3021)

$

$

Not available

2

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 54-3260

CAPSCREW

$57.99

$

Usually ships in 3-6 days

0

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

8

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

9

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

Usually ships in 3-6 days

0

10

Toro 54-2750

V-BELT, DRIVE

$52.99

$

Usually ships in 3-6 days

0

11

Toro 51-3280

SPACER-LOWER

$

$

Not available

12

Toro 71-3170

CRANK ADAPTER JLO

$

$

Not available

13

Toro 54-2930

CRANKSHAFT KEY

$23.99

$

Usually ships in 3-6 days

0

14

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

15

Toro 54-2940

UPPER SPACER

$

$

Not available

16

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$19.99

$

Usually ships in 3-6 days

0

17

Toro 54-3250

CAPSCREW

$

$

Not available

18

Toro 54-2910

ENGINE PLATE

$

$

Not available

19

Toro 55-7450

DECAL

$

$

Not available

20

Toro 71-3160

WIRE HARNESS JLO

$

$

Not available

21

Toro 55-4120

DECAL

$

$

Not available

22

Toro 51-3250

Module
(Superseded to 77-4990)

$183.99

$

Usually ships in 3-6 days

0
