30114 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) FUEL SYSTEM-ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

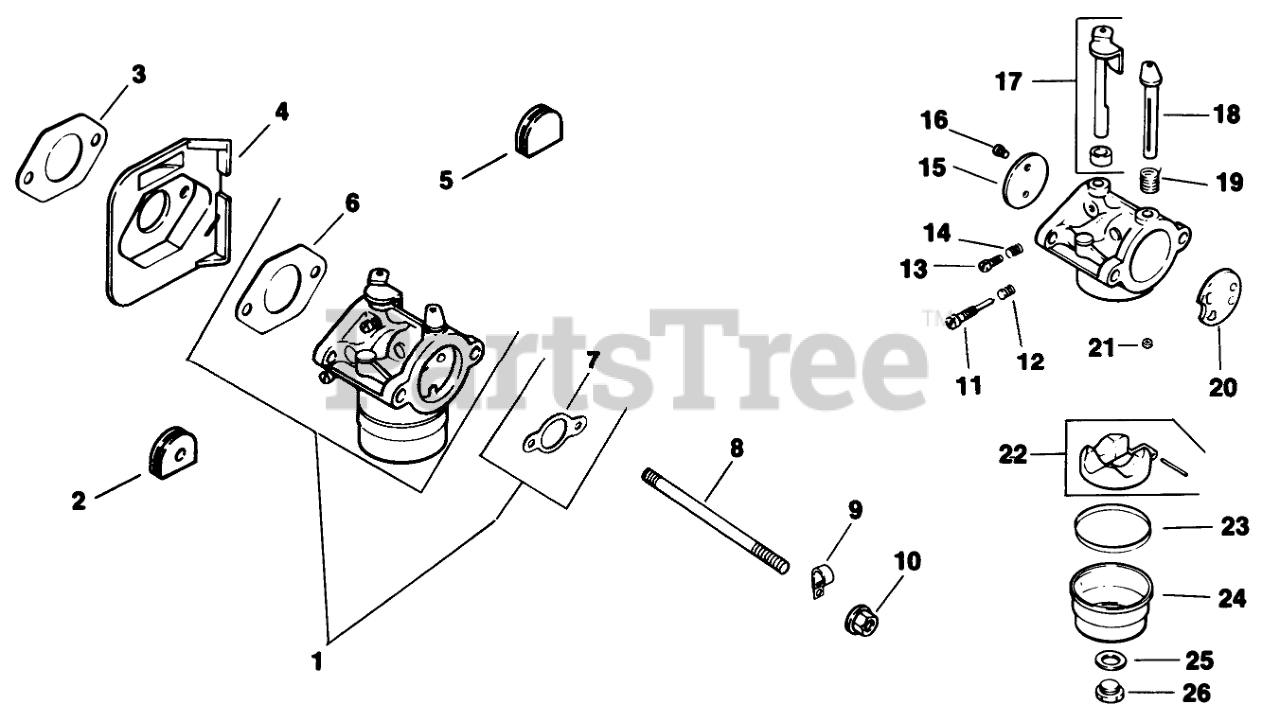

FUEL SYSTEM-ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title
1

Toro 12_853_01

Kit-Carburetor

$

$

Currently unavailable

2

12_313_01

Grommet

$

$

Not available

3

12_041_01

Gasket

$

$

Not available

4

Toro 12_265_01

Deflector

$

$

Currently unavailable

5

Toro 12_313_05

Grommet

$

$

Currently unavailable

6

12_041_01

Gasket

$

$

Not available

7

12_041_02

Gasket

$

$

Not available

$

$

Currently unavailable

9

$

$

Currently unavailable

$

$

Currently unavailable

11

12_368_01

Needle-Idle

$

$

Not available

12

12_089_09

Spring-Idle

$

$

Not available

13

12_086_04

Screw-Idle

$

$

Not available

14

12_089_09

Spring-Idle

$

$

Not available

15

12_146_03

Plate-Throttle

$

$

Not available

16

Toro 25_086_27

Screw-Throttle Plate

$

$

Currently unavailable

17

12_144_09

Shaft-Throttle

$

$

Not available

18

12_144_08

Shaft-Choke

$

$

Not available

19

12_089_10

Spring

$

$

Not available

20

12_146_02

Plate-Choke

$

$

Not available

21

Toro 12_337_01

Jet-Main

$

$

Currently unavailable

22

Toro 12_757_02

Kit-Float

$

$

Currently unavailable

23

12_041_05

Gasket-Bowl

$

$

Not available

24

12_104_01

Bowl

$

$

Not available

25

12_041_06

Gasket

$

$

Not available

26

12_086_05

Screw-Bowl

$

$

Not available

Toro 12_757_01

Kit-Carburetor Repair

$

$

Currently unavailable

Toro 12_755_09

Kit-High Altitude

$

$

Currently unavailable
