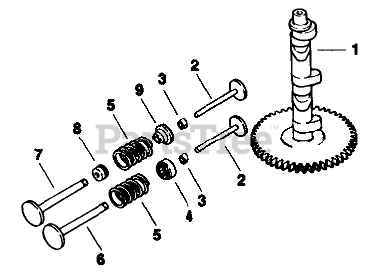

30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) CAMSHAFT & VALVES-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

CAMSHAFT & VALVES-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title

1

Toro 52_012_09

Camshaft

$

$

Currently unavailable

2

Toro 52_019_03

Tappet

$

$

Currently unavailable

3

41_755_10

Kit-Retainer

$

$

Not available

4

52_413_01

Rotator

$

$

Not available

5

Toro 25_089_01

Spring-Valve

$

$

Currently unavailable

6

Toro 52_016_05

Valve-Exhaust

$

$

Currently unavailable

7

Toro 52_017_08

Valve-Intake

$

$

Currently unavailable

8

Toro 52_032_13

Seal-Valve Stem

$

$

Currently unavailable

9

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 11
