30124 - Toro 32" Soft Bag, 3 bu. for Floating Mid-Size Mowers (SN: 008000001 - 008999999) (1988) CHUTE & BAG ASSEMBLY Parts Diagram

32" Soft Bag, 3 bu. for Floating Mid-Size Mowers

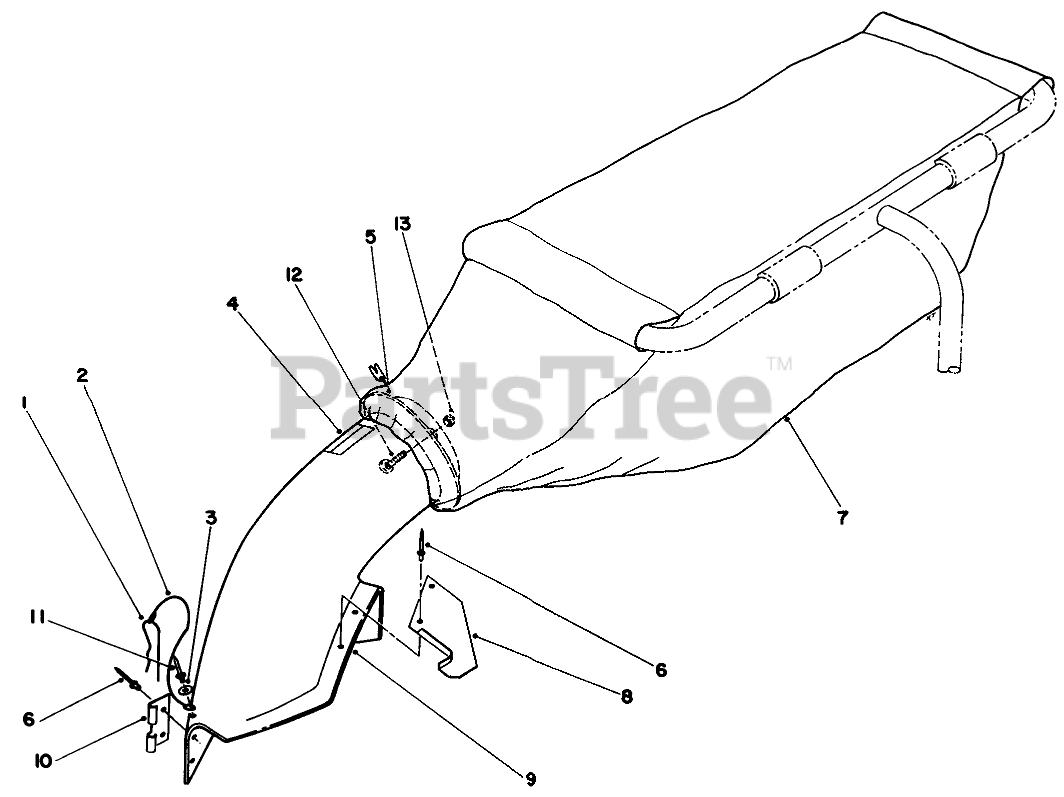

CHUTE & BAG ASSEMBLY Parts Diagram

  • Title

1

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

In Stock, only 2 left!

0

2

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

3

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

4

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

5

Toro 67-6690

Ring-Bagger
(Superseded to 67-6690-03)

$

$

Not available

6

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, Qty 6

0

7

Toro 67-6580

BAG ASSEMBLY

$

$

Not available

8

Toro 33-2090

CHUTE SUPT BRKT

$36.99

$

Usually ships in 3-6 days

0

9

Toro 67-6800

Chute Assembly (Incl. Ref. #1-6, 8, 10, & 11)

$442.99

$

Usually ships in 3-6 days

0

10

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$24.99

$

Usually ships in 3-6 days

0

11

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

12

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
