30124 - Toro 32" Soft Bag, 3 bu. for Floating Mid-Size Mowers (SN: 069000001 - 069999999) (1996) FRAME ASSEMBLY Parts Diagram

32" Soft Bag, 3 bu. for Floating Mid-Size Mowers

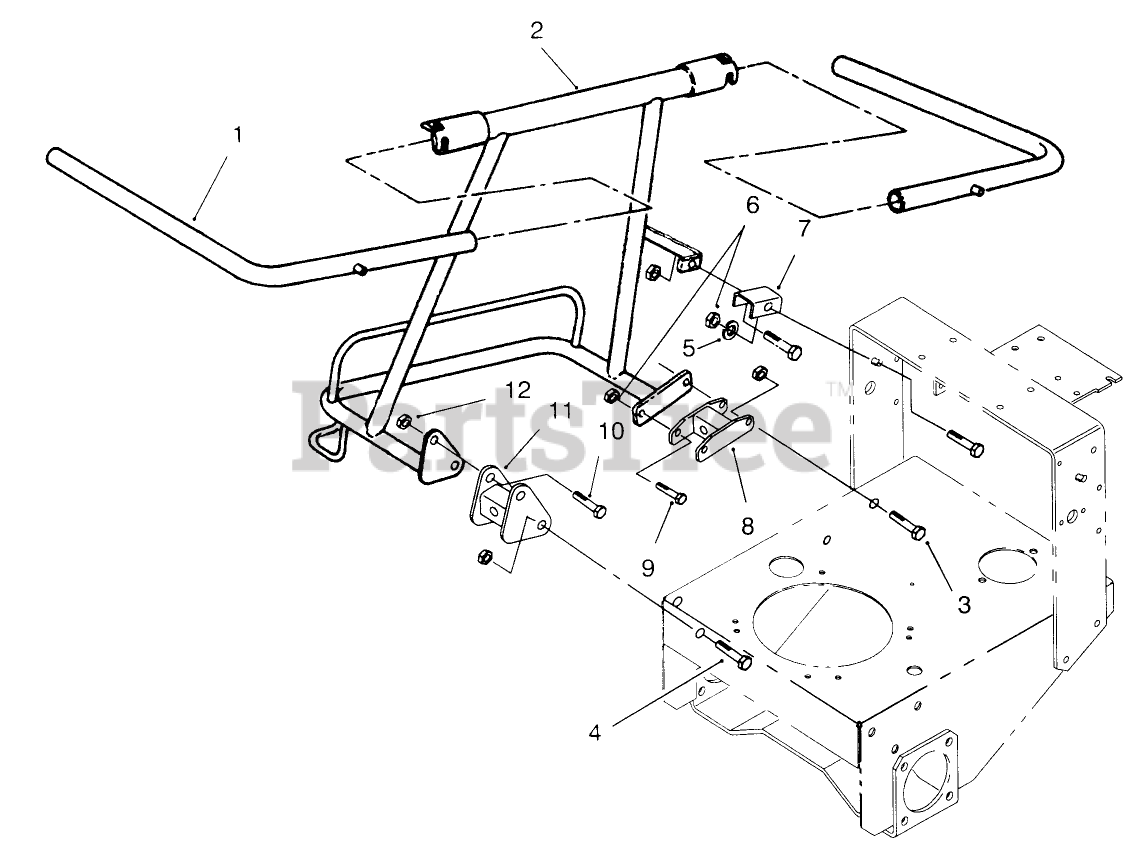

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 67-6640

Frame Bagger
(Superseded to 67-6640-03)

$

$

Not available

2

Toro 74-1040

Support-Bagger
(Superseded to 98-0672-03)

$1130.99

$

Usually ships in 3-6 days

0

3

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 3234-32

SCREW-HHF

$9.99

$

In Stock, only 1 left!

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 93-4371

Bracket
(Superseded to 93-4371-03)

$18.99

$

Usually ships in 3-6 days

0

8

Toro 93-4369

Adapter
(Superseded to 93-4369-03)

$

$

Not available

9

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

10

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

11

Toro 93-4370

Adapter
(Superseded to 93-4370-03)

$120.99

$

Usually ships in 3-6 days

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

Toro 93-4372

Kit-Adapter, 32" Bagger (Incl. Ref. 6-14)

$

$

Not available

13

Toro 68-3560

Elbow-Exhaust
(Superseded to 68-3560-03)

Note: Not illustrated

$

$

Not available

14

Toro 2412-111

CLAMP

Note: Not illustrated

$4.99

$

Usually ships in 3-6 days

0
