30132 - Toro Electric Start Kit (SN: 005000001 - 005999999) (1985) BATTERY ASSEMBLY Parts Diagram

Electric Start Kit

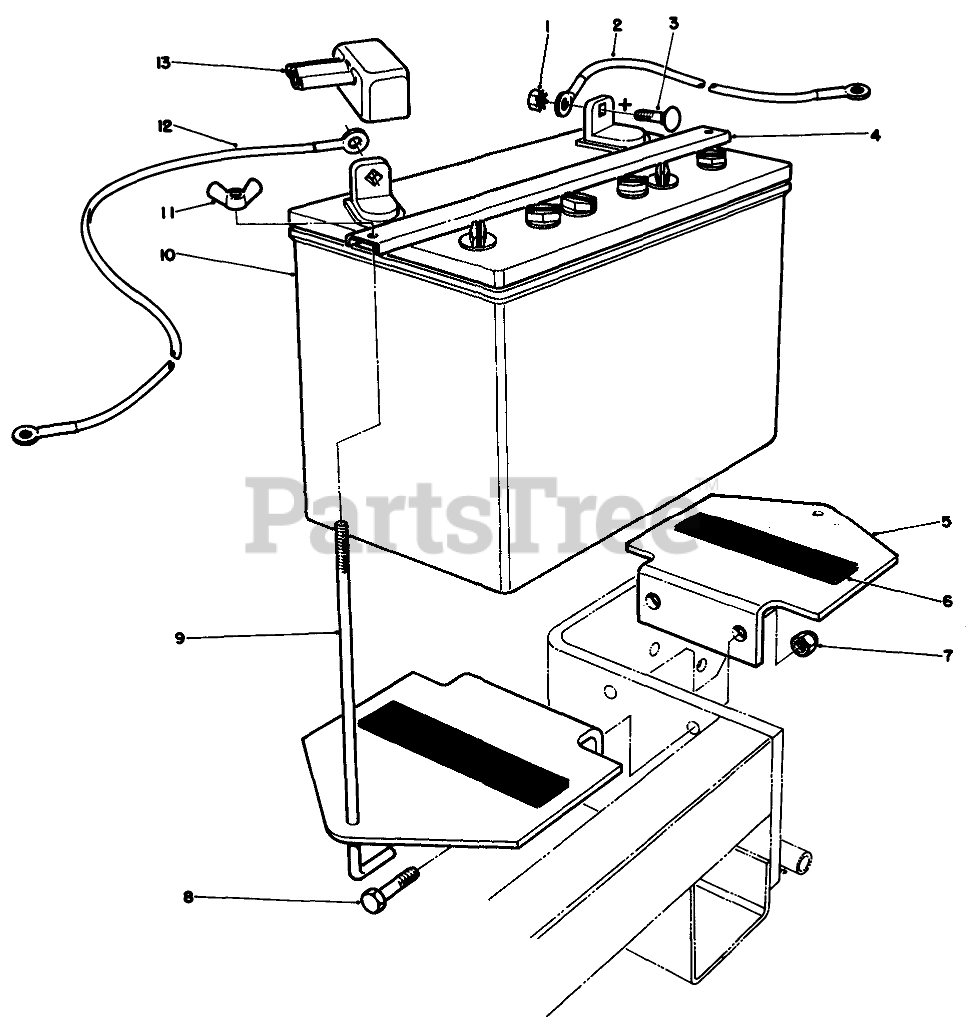

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

2

Toro 28-3890

WIRE ASM

$

$

Not available

3

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 54-2950

BATTERY STRAP R/B

$

$

Not available

5

Toro 54-2960

Holder-Battery
(Superseded to 92-2350-01)

$

$

Not available

6

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

8

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

10

Toro 49-7030

Battery

$

$

Not available

11

Toro 32103-19

WING NUT

$1.49

$

In Stock, only 2 left!

0

12

Toro 54-3090

WIRE ASM

$36.99

$

Usually ships in 3-6 days

0

13

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0
