30136 - Toro 36" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) CARRIER FRAME ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

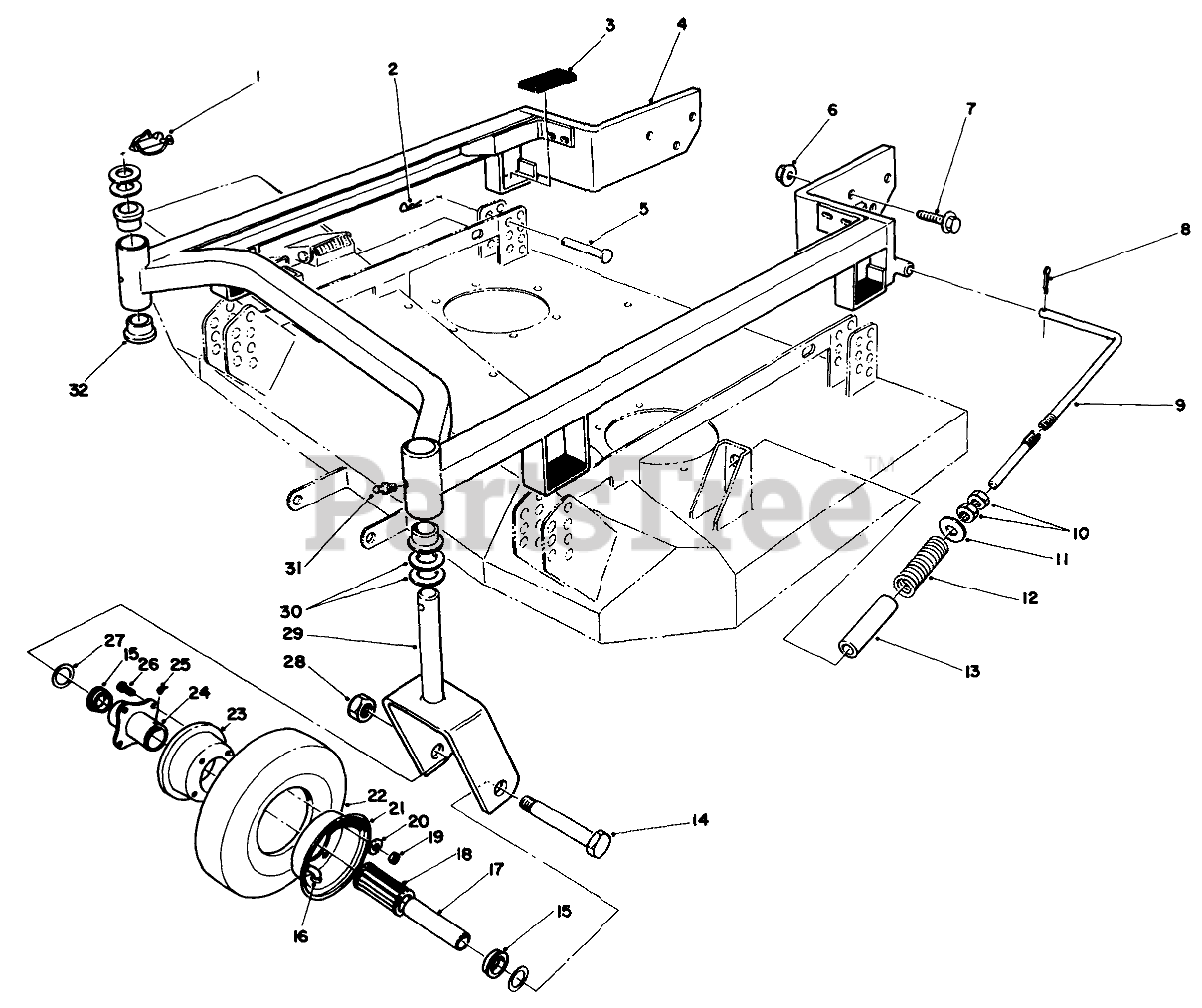

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

3

Toro 51-3720

Cushion-Rubber
(Superseded to 74-0350)

$7.99

$

In Stock, Qty 5

0

4

Toro 51-3740

Frame-Carrier (Incl. Ref. #32)

$

$

Not available

5

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

6

Toro 32128-27

NUT-LOCK, FLANGE

$4.49

$

Usually ships in 3-6 days

0

7

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

9

Toro 51-3490

ADJUSTING SHAFT
(Superseded to 920037)

$

$

Not available

10

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

11

Toro 51-3500

WASHER

$2.99

$

Usually ships in 3-6 days

0

12

Toro 47-0960

SPRING-COMPRESSION

$84.99

$

Usually ships in 3-6 days

0

13

Toro 51-3480

SLEEVE-TUBE, 36 INCH

$

$

Not available

14

Toro 328-9

SCREW-HH

$20.99

$

In Stock, only 1 left!

0

15

Toro 54-8840

RETAINER

$6.49

$

In Stock, Qty 7

0

16

Toro 54-8880

TUBE

$

$

Not available

17

Toro 54-8860

Bushing-Spanner
(Superseded to 27-1200)

$15.99

$

In Stock, only 4 left!

0

18

Toro 54-8850

BEARING-ROLLER

$29.99

$

In Stock, only 2 left!

0

19

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 54-8910

WHEEL HALF-FEMALE

$37.99

$

Usually ships in 3-6 days

0

22

Toro 54-8870

TIRE-8 Inch (4-PLY)

$78.99

$

Usually ships in 3-6 days

0

23

Toro 54-8900

WHEEL HALF-MALE

$37.99

$

Usually ships in 3-6 days

0

24

Toro 54-8830

HUB-CENTERED

$

$

Not available

25

Toro 302-10

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

26

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 57-4250

SPACER-WHEEL

$9.99

$

Usually ships in 3-6 days

0

28

Toro 32153-6

NUT-LOCK

$4.49

$

Usually ships in 3-6 days

0

29

Toro 40-0370

FORK-Castor
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

30

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

31

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

32

Toro 28-9290

Bushing
(Superseded to 94-1291)

$10.99

$

In Stock, Qty 16

0

Toro 12-1519

WHEEL

Note: Not Illustrated.

$

$

Not available
