30137 - Toro 37" Recycler Mower Deck (SN: 099000001 - 099999999) (1999) CARRIER FRAME ASSEMBLY Parts Diagram

37" Recycler Mower Deck

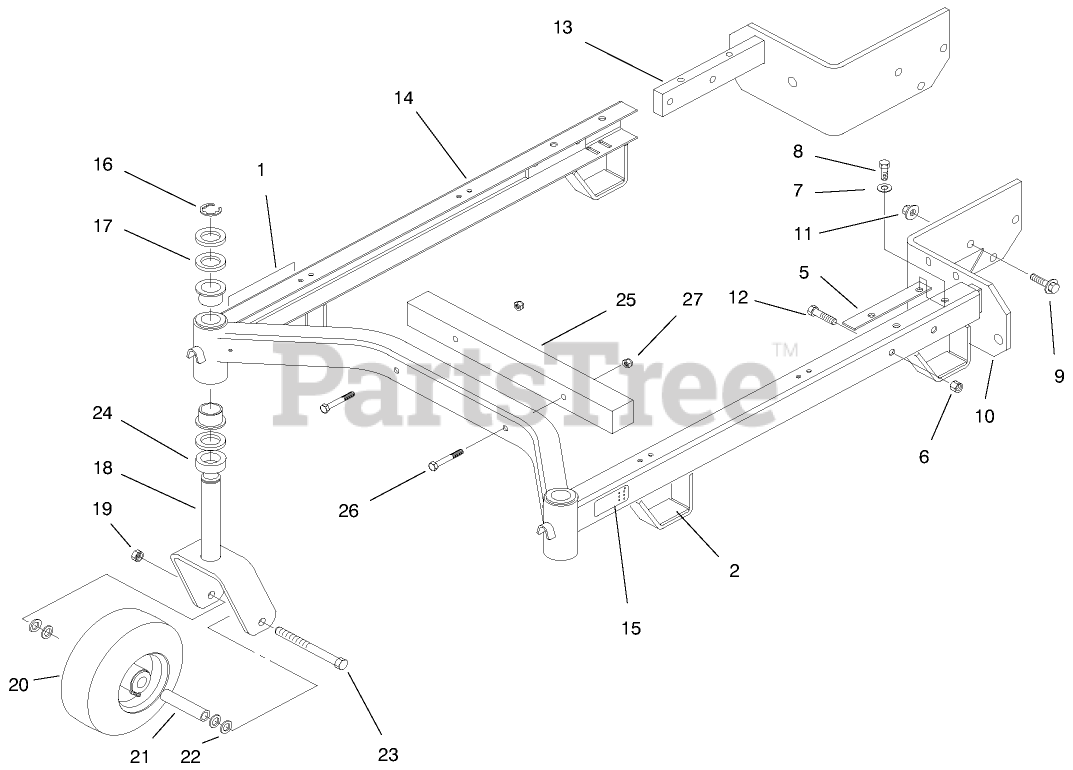

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 85-7450

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

2

Toro 74-0340

CUSHION-RUBBER

$4.99

$

In Stock, only 4 left!

0

5

Toro 62-6980

SHIM-CARRIER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3235-21

SCREW W/PATCH

$

$

Not available

9

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 86-7100

Bracket-LH
(Superseded to 92-8923)

$479.99

$

Usually ships in 3-6 days

0

11

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 86-7110

Bracket RH
(Superseded to 92-8924-01)

$

$

Not available

14

Toro 94-4166

WA - SUSPENSION

$

$

Not available

15

Toro 85-7460

DECAL-HOC, RH

$28.99

$

Usually ships in 3-6 days

0

16

Toro 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

17

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

18

Toro 98-2857

Castor Fork
(Superseded to 98-2857-01)

$

$

Not available

19

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

20

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

20:1

Toro 62-5580

BEARING-OUTSIDE

Note: Not illustrated

$6.99

$

In Stock, Qty 20+

0

20:2

Toro 62-5570

BEARING-ROLLER

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0

20:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 13

0

20:4

Toro 302-11

FITTING-LUBE, 45 DEG

Note: Not illustrated

$1.49

$

In Stock, only 4 left!

0

21

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 16

0

22

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

24

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

25

Toro 80-3340

Weight
(Superseded to 106-0820)

$314.99

$

Usually ships in 3-6 days

0

26

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
