30137 - Toro 37" Recycler Mower Deck (SN: 099000001 - 099999999) (1999) SPINDLE AND BLADE ASSEMBLY Parts Diagram

37" Recycler Mower Deck

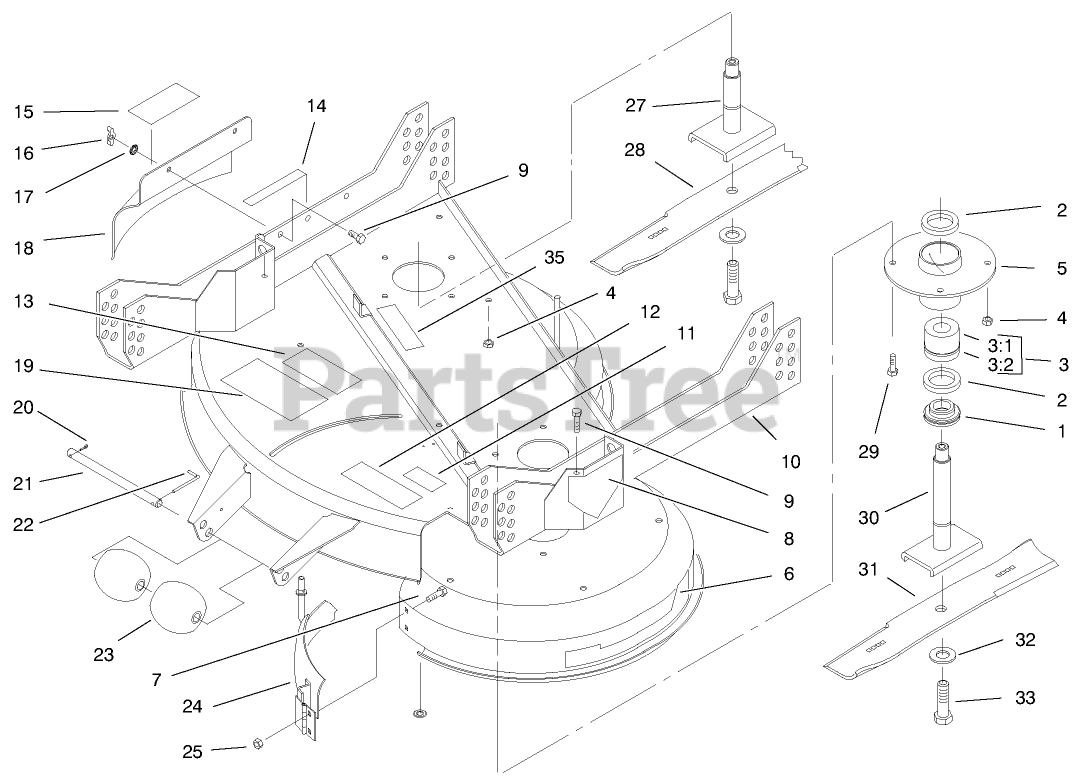

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 27-0950

SPACER

$31.99

$

Usually ships in 3-6 days

0

2

Toro 253-139

SEAL-OIL

$12.99

$

In Stock, Qty 15

0

3

Toro 46-8530

BEARING ASM

$94.99

$

In Stock, Qty 16

0

3:1

Toro 27-0960

BEARING ASM

$60.99

$

In Stock, only 3 left!

0

3:2

Toro 27-5970

SPACER-SET, MATCHED

$62.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 82-5990

SPINDLE HOUSING

$

$

Not available

6

Toro 84-4340

DECAL - 37"

$

$

Not available

7

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

8

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 99-8510

DECK SUPPORT

$

$

Not available

11

Toro 88-1270

Decal-Safety

$

$

Not available

12

Toro 85-7080

DECAL - DISCHARGE DOOR

$

$

Not available

13

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 3 left!

0

14

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

15

Toro 82-7490

DECAL - DANGER

$

$

Not available

16

Toro 32103-27

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

17

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

18

Toro 86-9870

Cover-Discharge
(Superseded to 99-8512)

$494.99

$

Usually ships in 3-6 days

0

19

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

20

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

21

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 6

0

22

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

23

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 6

0

24

Toro 92-2932

Cover-Front
(Superseded to 92-2932-01)

$444.99

$

Usually ships in 3-6 days

0

25

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

27

Toro 84-4430

SHAFT-SPINDLE

$279.99

$

Usually ships in 3-6 days

0

28

Toro 93-0106

Blade
(Superseded to 93-0106-03)

$35.99

$

In Stock, only 2 left!

0

29

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 51-3552

SHAFT-SPINDLE

$311.99

$

Usually ships in 3-6 days

0

31

Toro 93-0107

Blade
(Superseded to 93-0107-03)

$43.99

$

In Stock, only 1 left!

0

32

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

35

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0
