30144 - Toro 44" Side-Discharge Mower Deck (SN: 800001 - 801221) (1988) CUTTING UNIT ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

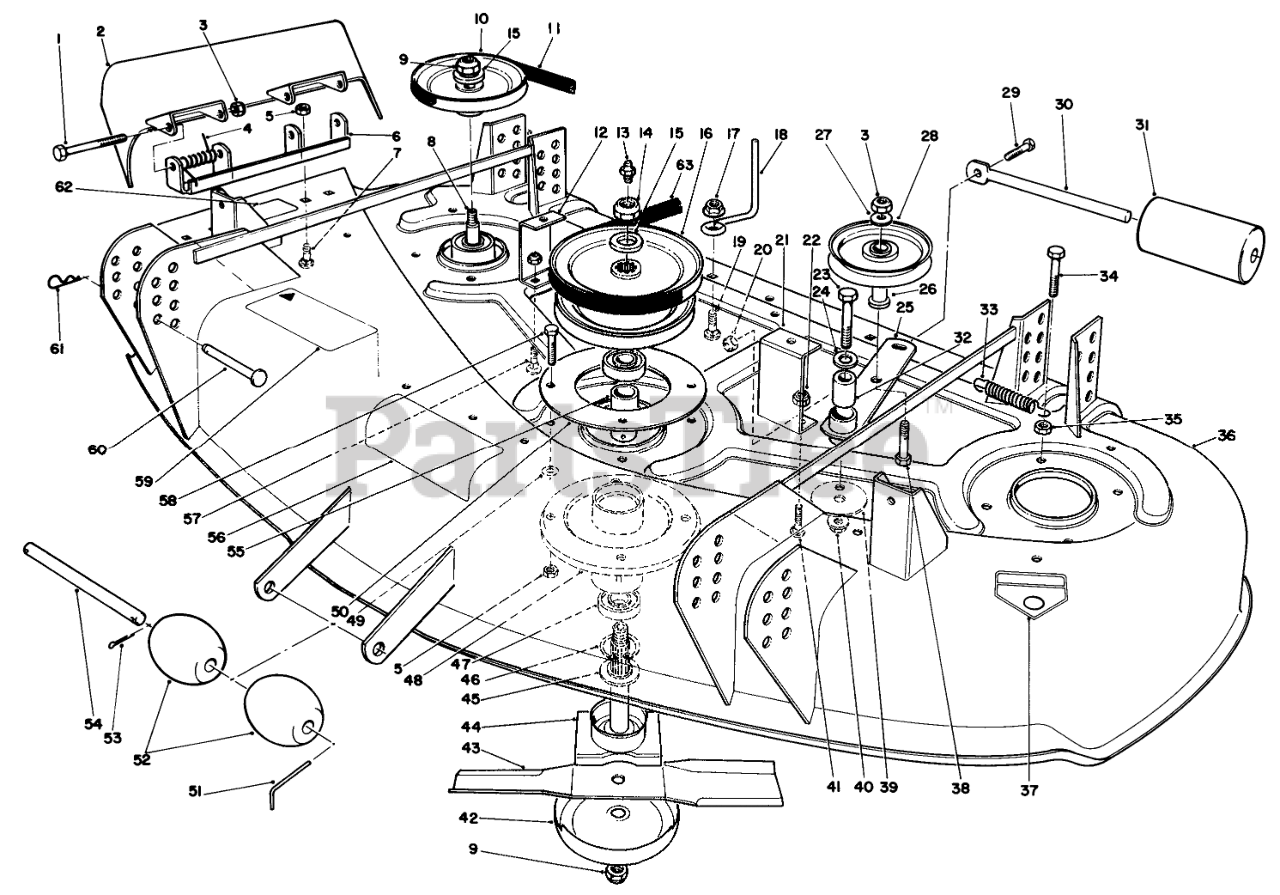

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

2

Toro 57-6970

Deflector-Grass
(Superseded to 13-3899)

$

$

Not available

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

4

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

6

Toro 55-8320

PIVOT BRKT WA R/B

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 17

0

8

Toro 47-0094

SPDL/BLD RET.WA

$

$

Not available

9

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 5

0

10

Toro 55-7690

DECK PULLEY

$

$

Not available

11

Toro 27-1160

V-BELT

$55.99

$

In Stock, Qty 13

0

12

Toro 54-3230

Bracket-Cover RH
(Superseded to 54-3230-03)

$

$

Not available

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

14

Toro 3296-63

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

15

Toro 62-5420

WASHER

$

$

Not available

16

Toro 57-4140

PULLEY WA

$

$

Not available

17

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 7

0

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 54-3240

Bracket-Cover
(Superseded to 54-3240-03)

$

$

Not available

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 54-2710

Idler Arm
(Superseded to 14-8649)

$113.99

$

Usually ships in 3-6 days

0

26

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 9

0

27

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 4 left!

0

28

Toro 65-5940

PULLEY-IDLER

$36.99

$

In Stock, only 4 left!

0

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 62-4480

ROD-ROLLER

$19.99

$

Usually ships in 3-6 days

0

31

Toro 36-1740

ROLLER-DECK

$39.99

$

In Stock, Qty 5

0

32

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

33

Toro 54-2730

Spring-Extension

$15.99

$

In Stock, only 1 left!

0

34

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

36

Toro 54-2900

Housing
(Superseded to 94-5836)

$

$

Not available

37

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

38

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

39

Toro 20-9530

WASHER-END

$35.99

$

Usually ships in 3-6 days

0

40

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

41

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

42

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

43

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$29.99

$

In Stock, Qty 20+

0

44

Toro 57-4130

SPDL/BLD RET.WA

$348.99

$

Usually ships in 3-6 days

0

45

Toro 62-5430

IDLER SPACER

$10.99

$

Usually ships in 3-6 days

0

46

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 20+

0

47

Toro 251-318

BEARING-BALL

$17.99

$

In Stock, only 3 left!

0

48

Toro 60-9670

Spindle
(Superseded to 79-1050-03)

$230.99

$

Usually ships in 3-6 days

0

49

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 55-8280

DECK RING
(Superseded to 55-8280-01)

$

$

Not available

51

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

52

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 6

0

53

Toro 5272-11

Pin-Cotter

$

$

Currently unavailable

54

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 6

0

55

Toro 55-7680

BEARING SPACER

$

$

Not available

56

Toro 42-6860

DECAL

$

$

Not available

57

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

58

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Toro 42-6430

CAUTION DECAL

$

$

Not available

60

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

61

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

62

Toro 26-7970

DECAL-CAUTION, BLADE

$16.99

$

Usually ships in 3-6 days

0

63

Toro 54-2750

V-BELT, DRIVE

$52.99

$

Usually ships in 3-6 days

0

Toro 55-4940

Blade
(Superseded to 55-4940-03)

$34.99

$

In Stock, only 1 left!

0
