30146 - Toro 44" Recycler Mower Deck (SN: 079000001 - 079999999) (1997) DECK, DEFLECTORS, AND COVERS Parts Diagram

44" Recycler Mower Deck

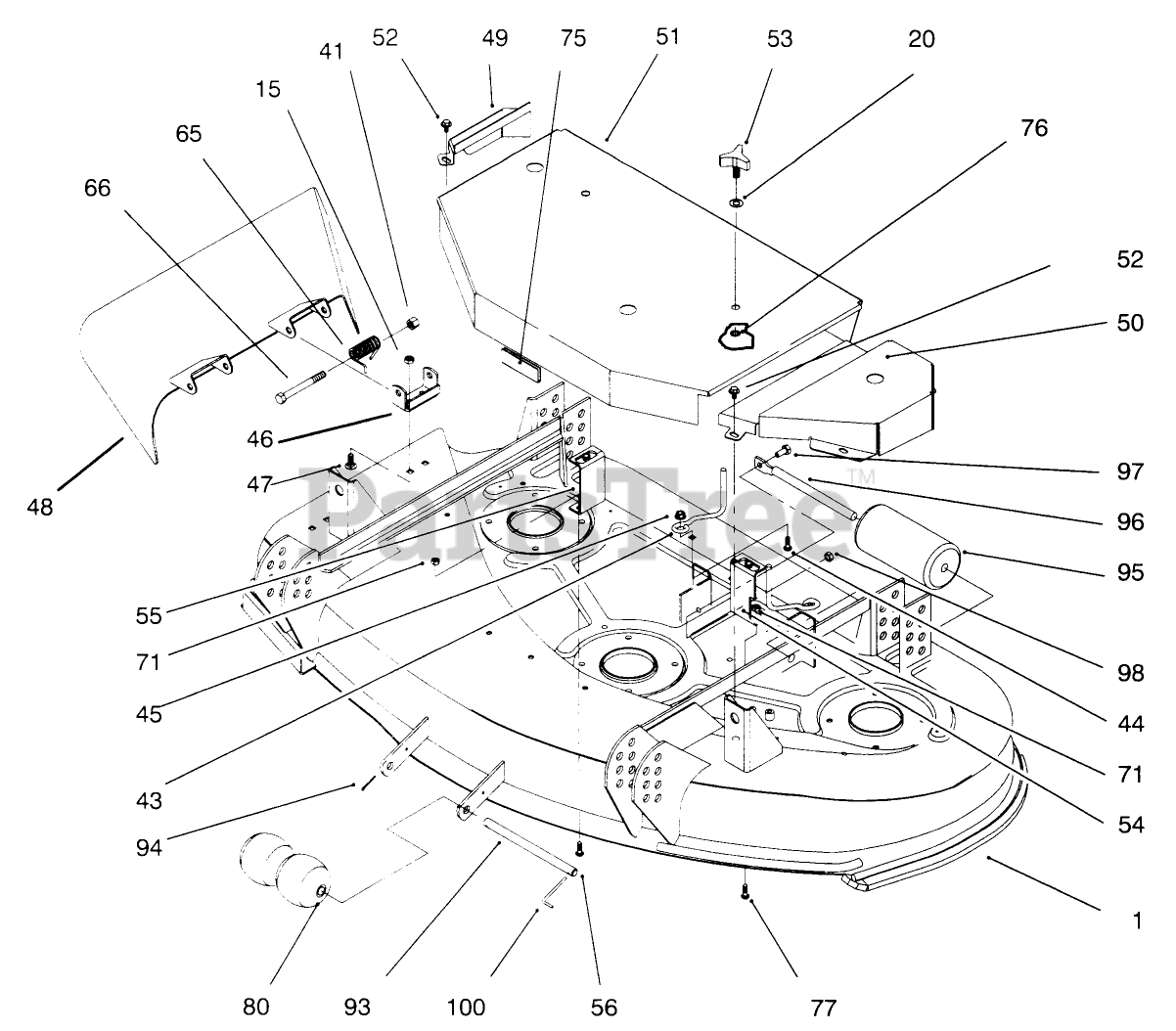

DECK, DEFLECTORS, AND COVERS Parts Diagram

  • Title

1

Toro 94-6785

44" Recycler Deck
(Superseded to 94-5836)

$

$

Not available

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

43

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 7

0

44

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

45

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

46

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

47

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 19

0

48

Toro 57-6970

Deflector-Grass
(Superseded to 13-3899)

$

$

Not available

49

Toro 54-2250

Cover-RH
(Superseded to 54-2250-01)

$

$

Not available

50

Toro 54-2220

Cover-LH
(Superseded to 54-2220-01)

$142.99

$

Usually ships in 3-6 days

0

51

Toro 54-3190

Cover-Deck
(Superseded to 54-3190-01)

$

$

Not available

52

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

53

Toro 62-6520

KNOB

$7.99

$

In Stock, only 2 left!

0

54

Toro 54-3240

Bracket-Cover
(Superseded to 54-3240-03)

$

$

Not available

55

Toro 54-3230

Bracket-Cover RH
(Superseded to 54-3230-03)

$

$

Not available

56

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 12

0

65

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

66

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

71

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

75

Toro 29-0641

TRIM-JIFFY

$5.99

$

In Stock, only 3 left!

0

76

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 9

0

77

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

80

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 8

0

93

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 6

0

94

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

95

Toro 36-1740

ROLLER-DECK

$39.99

$

In Stock, Qty 5

0

96

Toro 62-4480

ROD-ROLLER

$19.99

$

Usually ships in 3-6 days

0

97

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

98

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

100

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0
