30154 - Toro 52" Recycler Mower Deck (SN: 079000001 - 079999999) (1997) CARRIER FRAME Parts Diagram

52" Recycler Mower Deck

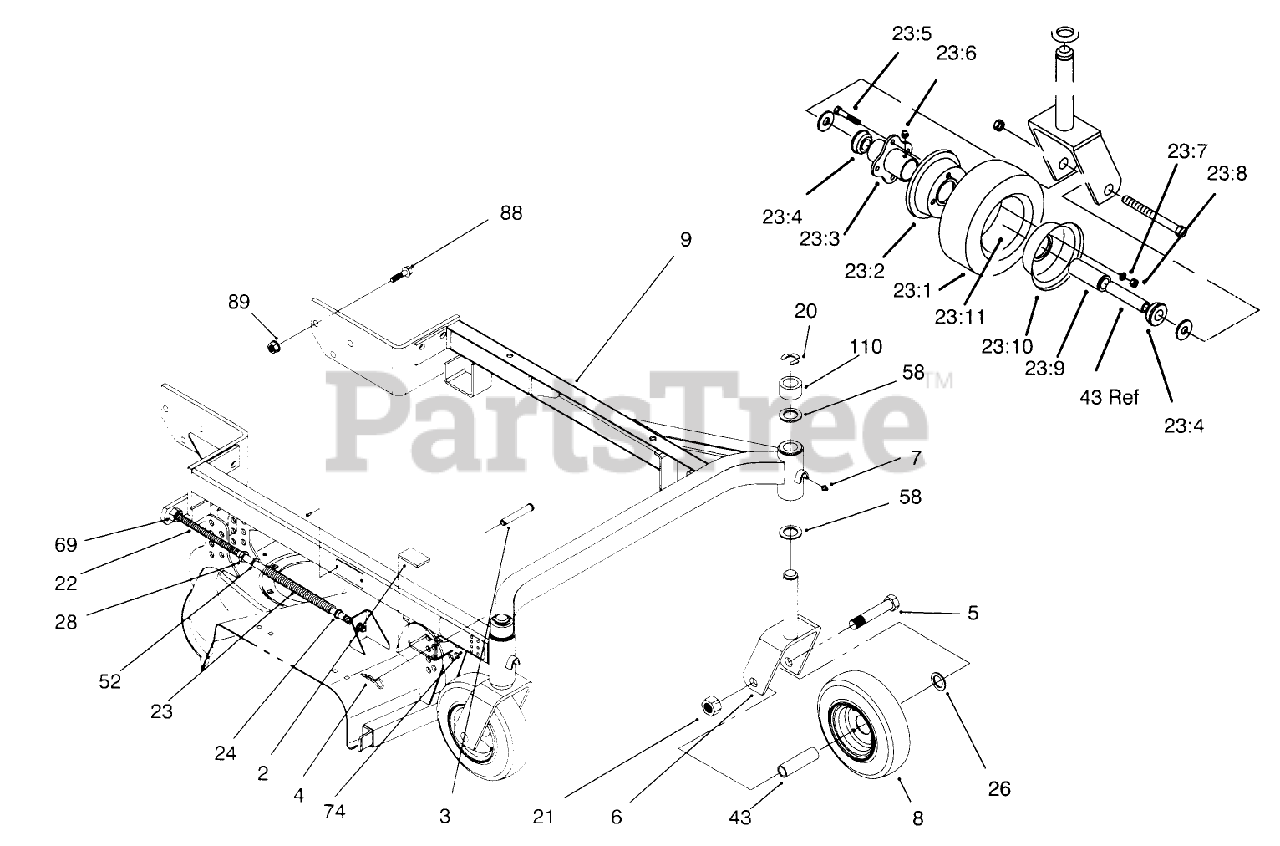

CARRIER FRAME Parts Diagram

  • Title

2

Toro 74-0350

CUSHION-RUBBER

$7.99

$

In Stock, Qty 5

0

3

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

4

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

5

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

6

Toro 74-0251

Fork
(Superseded to 74-0251-01)

$

$

Not available

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

8:10

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

8:11

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

8:1

Toro 68-8960

TIRE

$64.99

$

In Stock, only 1 left!

0

8:1

Toro 68-9840

PNEUMATIC WHEEL ASM
(Superseded to 68-8970)

$127.99

$

Usually ships in 3-6 days

0

8:2

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

8:2

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

8:3

Toro 62-5570

BEARING-ROLLER

$20.99

$

Usually ships in 3-6 days

0

8:3

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

8:4

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

8:5

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

8:6

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 1 left!

0

8:7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8:8

Toro 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

8:9

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 16

0

9

Toro 94-4185

WA - CARRIER FRAME 52"

$

$

Not available

20

Toro 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

21

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

22

Toro 74-0310

SHAFT-ADJUSTING

$56.99

$

In Stock, only 3 left!

0

23

Toro 74-0290

SPRING

$23.99

$

Usually ships in 3-6 days

0

24

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

26

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

43

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 16

0

52

Toro 41-8440

WASHER

$1.99

$

In Stock, Qty 5

0

58

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

59

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

60

Toro 42-6482

Plate-Serial

$

$

Currently unavailable

69

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

74

Toro 85-7460

DECAL-HOC, RH

$28.99

$

Usually ships in 3-6 days

0

77

Toro 85-7450

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

88

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

89

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

110

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0
