30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

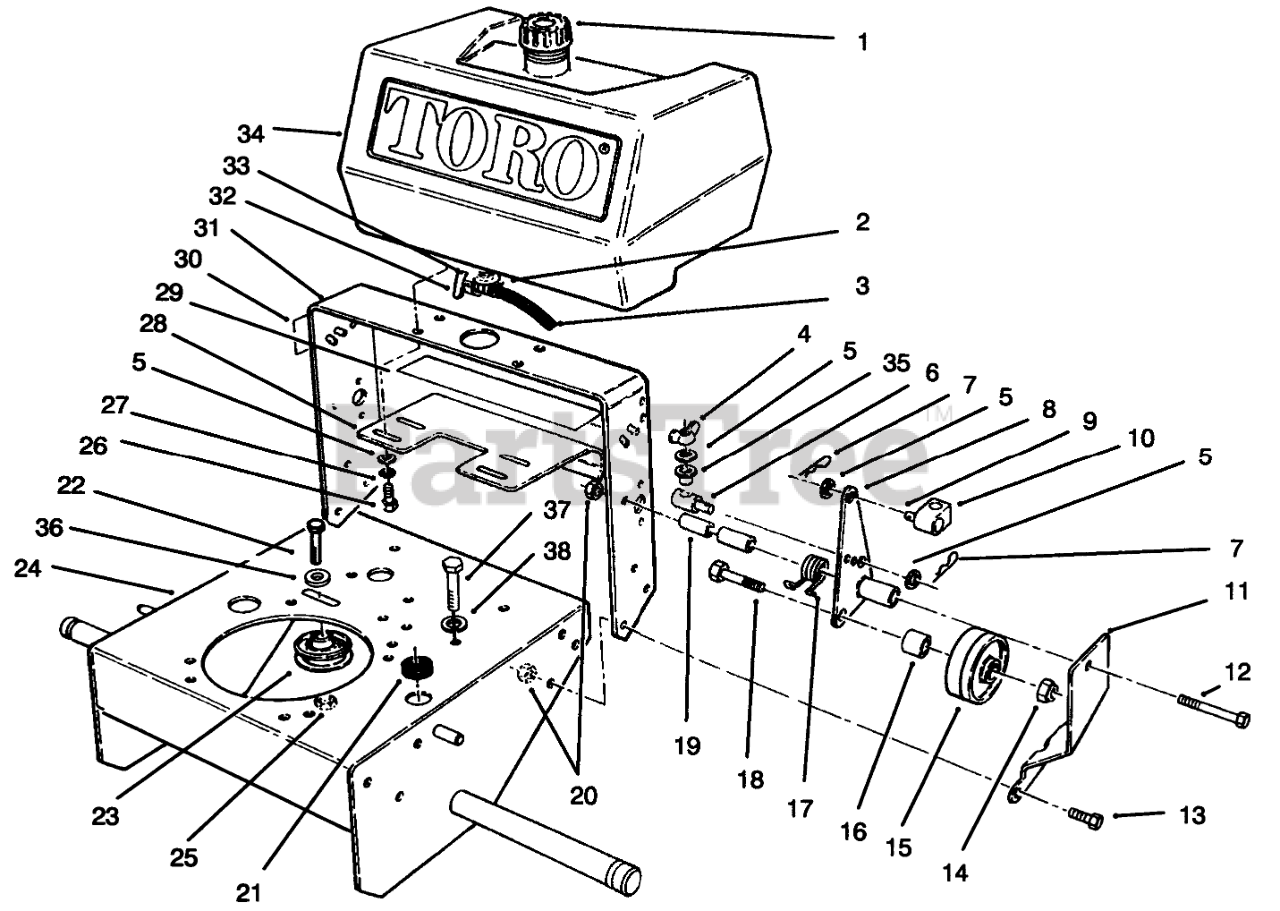

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 55-3570

GAS CAP ASM
Usually ships in 1 day

$

$12.29

0

2

Toro Part# 2412-98

CLAMP-HOSE
Usually ships in 1 day

$

$1.11

0

3

Toro Part# 47-2982

HOSE-FUEL
(Superseded to 110-4894)
Usually ships in 1 day

$

$6.71

0

4
Usually ships in 5 to 8 days

$

$4.43

0

5

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

6

Toro Part# 68-9690

FITTING-ROD
Usually ships in 5 to 8 days

$

$44.60

0

7

Toro Part# 3290-307

PIN-COTTER
(Superseded to 1-806003)
Usually ships in 1 day

$

$1.00

0

8

Toro Part# 74-0220

BRACKET-Idler, LH
(Superseded to 74-0220-01)
Usually ships in 5 to 8 days

$

$61.37

0

Toro Part# 74-0230

Bracket-Idler, RH
(Superseded to 74-0230-01)

Note: Not illustrated

Usually ships in 5 to 8 days

$

$61.37

0

9

Toro Part# 283-6

PIN-CLEVIS
Usually ships in 1 day

$

$1.61

0

10

Toro Part# 74-0521

FITTING-ROD
Usually ships in 1 day

$

$11.93

0

11

Toro Part# 67-6380

Bracket-LH
(Superseded to 67-6380-01)
Usually ships in 5 to 8 days

$

$88.20

0

Toro Part# 67-6370

Bracket-RH
(Superseded to 67-6370-01)

Note: Not illustrated

Usually ships in 5 to 8 days

$

$88.20

0

12
Usually ships in 1 day

$

$2.23

0

13

Toro Part# 323-6

SCREW-HH
Usually ships in 1 day

$

$2.21

0

14

Toro Part# 3296-23

NUT-LOCK, NI
Usually ships in 1 day

$

$0.89

0

15

Toro Part# 51-4480

IdlerWheel
(Superseded to 99-5879)
Usually ships in 5 to 8 days

$

$48.40

0

16

Toro Part# 51-4490

WHEEL IDLER SPACER
Usually ships in 5 to 8 days

$

$14.11

0

17

Toro Part# 51-4380

SPRING-TORSION, LH
Usually ships in 5 to 8 days

$

$15.64

0

Toro Part# 51-4370

SPRING-TORSION, RH

Note: Not illustrated

Usually ships in 5 to 8 days

$

$15.64

0

18

Toro Part# 51-4450

SCREW-LEVELER
Usually ships in 5 to 8 days

$

$10.86

0

19

Toro Part# 74-0040

SPACER-PIVOT, IDLER
Usually ships in 5 to 8 days

$

$4.41

0

20

Toro Part# 3296-39

NUT-LOCK, NI
Usually ships in 1 day

$

$2.23

0

21
Usually ships in 1 day

$

$2.24

0

22

Toro Part# 323-9

SCREW-HH
Usually ships in 1 day

$

$1.00

0

23

Toro Part# 51-4810

PULLEY-IDLER
Usually ships in 1 day

$

$40.24

0

24

Toro Part# 93-1161

Frame
(Superseded to 93-1161-01)
Usually ships in 5 to 8 days

$

$1080.86

0

Usually ships in 1 day

$

$0.70

0

26

Toro Part# 322-4

SCREW-HH
Usually ships in 1 day

$

$0.64

0

27

Toro Part# 3253-4

WASHER-LOCK
Usually ships in 1 day

$

$0.73

0

28

Toro Part# 66-7400

Plate
(Superseded to 66-7400-01)
Usually ships in 5 to 8 days

$

$76.49

0

29

Toro Part# 82-7750

DECAL-GROUND SPEED
Usually ships same day

Not available

$

$

30

Toro Part# 74-0490

DECAL-FUEL SHUT OFF
Usually ships in 5 to 8 days

$

$6.48

0

31

Toro Part# 74-0360

Frame Rear
(Superseded to 74-0360-01)
Usually ships same day

Not available

$

$

32

Toro Part# 74-0510

VALVE-FUEL
Usually ships in 1 day

$

$25.79

0

33
Usually ships in 1 day

$

$7.65

0

34

Toro Part# 82-8440

Fuel Tank Assembly (Incl. Ref. # 32 & 33)
Usually ships in 5 to 8 days

$

$366.73

0

35

Toro Part# 52-2890

BUSHING-NYLON
Usually ships in 5 to 8 days

$

$2.31

0

36

Toro Part# 3256-24

WASHER-FLAT
Usually ships in 1 day

$

$0.58

0

Usually ships in 1 day

$

$2.90

0

38

Toro Part# 3255-7

WASHER-LOCK/EXT
Usually ships in 5 to 8 days

$

$1.67

0
