30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079500101 - 079999999) (1997) BLOWER HOUSING AND BAFFLES-ENGINE KOHLER MODEL NO. CV131 SPEC 21524 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

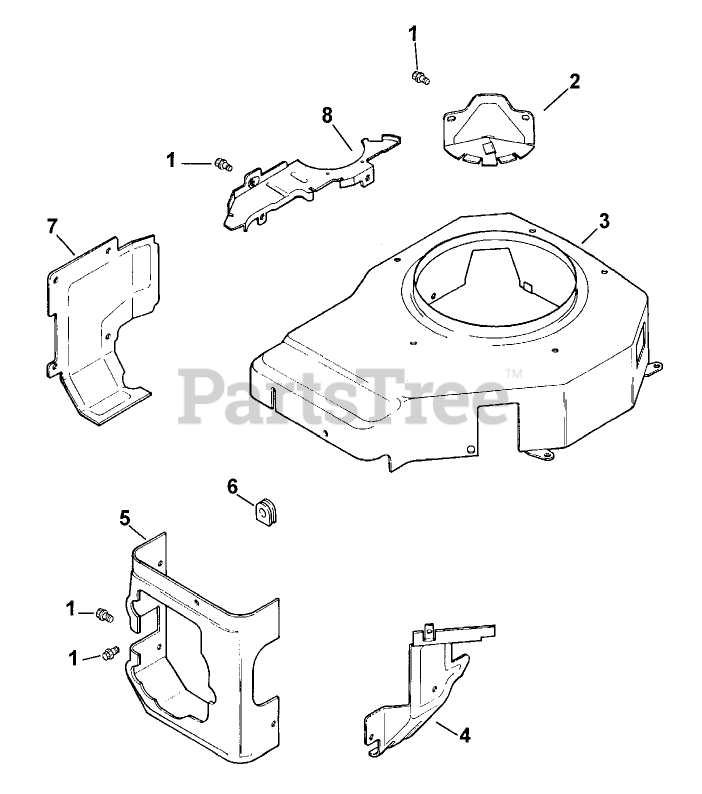

BLOWER HOUSING AND BAFFLES-ENGINE KOHLER MODEL NO. CV131 SPEC 21524 Parts Diagram

  • Title
1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 14

0

2

1209629

Cover-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1202737

Housing-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1206305

Baffle-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1206308

Baffle-Cyl. Head

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1231303

Grommet-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1206301

Baffle-Cylinder

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1214607

Plate-Blower Housing

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213366

Decal-Horsepower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213366

Decal-Horsepower

Note: Not illustrated

$

$

Not available
