30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

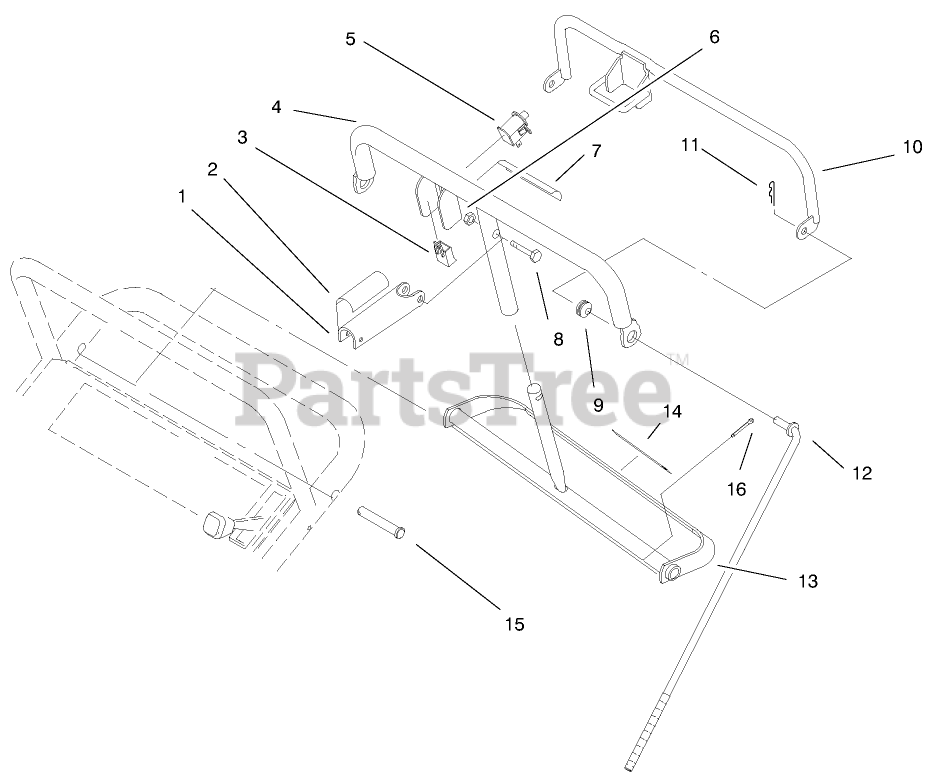

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$38.99

$

Usually ships in 3-6 days

0

2

Toro 93-7442

DECAL-LEVER, PARKING

$21.99

$

Usually ships in 3-6 days

0

3

Toro 218-595

CONNECTOR-BODY

$

$

Not available

4

Toro 82-7690

Bar
(Superseded to 82-7690-03)

$273.99

$

Usually ships in 3-6 days

0

5

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 93-7298

DECAL-BAR, CONTROL

$37.99

$

In Stock, only 1 left!

0

8

Toro 32105-1

SCREW-SHH

$1.49

$

In Stock, Qty 8

0

9

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

10

Toro 82-7680

Bail
(Superseded to 82-7680-03)

$148.99

$

Usually ships in 3-6 days

0

11

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

12

Toro 82-7631

ROD-CONTROL

$61.99

$

Usually ships in 3-6 days

0

13

Toro 99-8501

Control Pivot
(Superseded to 106-5477-03)

$196.99

$

Usually ships in 3-6 days

0

14

Toro 93-7299

DECAL-REVERSE

$29.99

$

Usually ships in 3-6 days

0

15

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

16

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0
