30167 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 079000001 - 079999999) (1997) COOLING EQUIPMENT KAWASAKI MODEL B400V TYPE R300 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

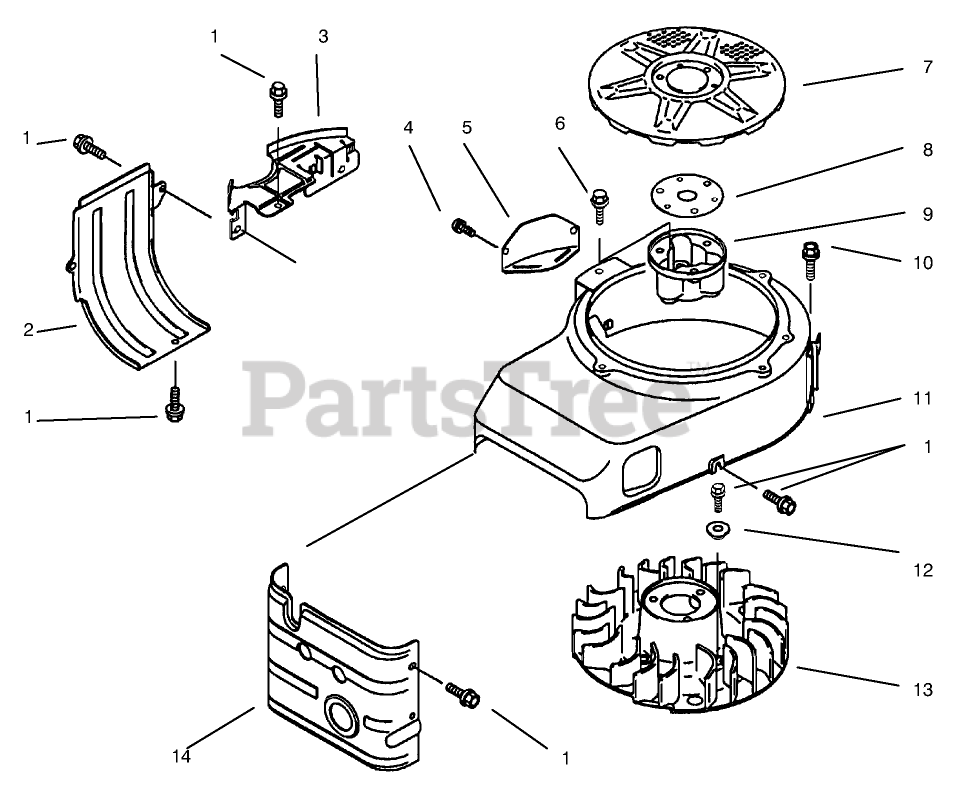

COOLING EQUIPMENT KAWASAKI MODEL B400V TYPE R300 Parts Diagram

  • Title
1

Toro 130G0610

Bolt-Flanged (6X10)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

2

Toro 49089-2199-9H

Shroud

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

3

Toro 59066-2295-9H

Fan Housing

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

4

Toro 234b0408

Screw

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

5

Kawasaki 14024-2038-9H

Cover
(Superseded to 14024-2038-9B)

Note: Obtain Parts from Kawasaki.

$

$

Not available

6

Toro 130b0820

Bolt-Flange

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

7

Kawasaki 14037-2104-9H

Screen

Note: Obtain Parts from Kawasaki.

$

$

Not available

8

Kawasaki 92025-2003

Shim T-1.20
(Superseded to M88579)

Note: Obtain Parts from Kawasaki.

$

$

Not available

9

Kawasaki 11044-2084

Bracket

Note: Obtain Parts from Kawasaki.

$

$

Not available

10

Toro 130go614

Bolt-Flange

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

11

Toro 59066-2677-9H

Housing-Fan

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

12

Kawasaki 92143-2179

Collar

Note: Obtain Parts from Kawasaki.

$

$

Not available

13

Kawasaki 59041-2081

Fan

Note: Obtain Parts from Kawasaki.

$

$

Not available

14

Toro 49089-2181-9H

Shroud

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable
