30169 - Toro ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 17hp

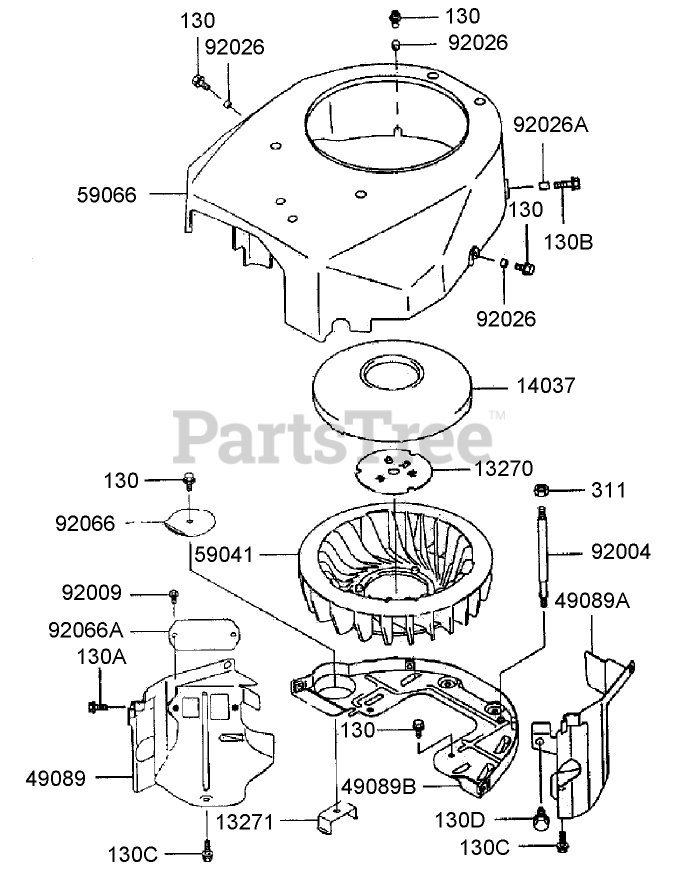

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH500V-AS25 Parts Diagram

  • Title

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, only 2 left!

0

130C

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 10

0

130D

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 9

0

13270

Kawasaki 13270-7007

Plate

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, Qty 8

0

13271

Kawasaki 13271-7002

Plate

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7002

Screen
(Superseded to 14037-7015-9H)

Note: Obtain Parts From Kawasaki

$35.99

$

Usually ships in 2-5 days

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49089

Kawasaki 49089-7001

Shroud-Engine
(Superseded to 49089-7034)

Note: Obtain Parts From Kawasaki

$26.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7002

Shroud-Engine

Note: Obtain Parts From Kawasaki

$28.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7003

Shroud-Engine
(Superseded to 49089-7032)

Note: Obtain Parts From Kawasaki

$32.99

$

In Stock, only 1 left!

0

59041

Toro 59041-7001

Fan

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

59066

Kawasaki 59066-7002

Housing-Fan

Note: Obtain Parts From Kawasaki

$

$

Not available

92004

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 5

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 5

0

92026A

Toro 92026-7003

Spacer

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

92066

Kawasaki 92066-7004

Plug

Note: Obtain Parts From Kawasaki

$7.99

$

Usually ships in 2-5 days

0

92066A

Kawasaki 92066-7004

Plug

Note: Obtain Parts From Kawasaki

$7.99

$

Usually ships in 2-5 days

0
