30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 039000001 - 039999999) (1993) STARTING SYSTEM - ENGINE KOHLER MODEL NO. CV14T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

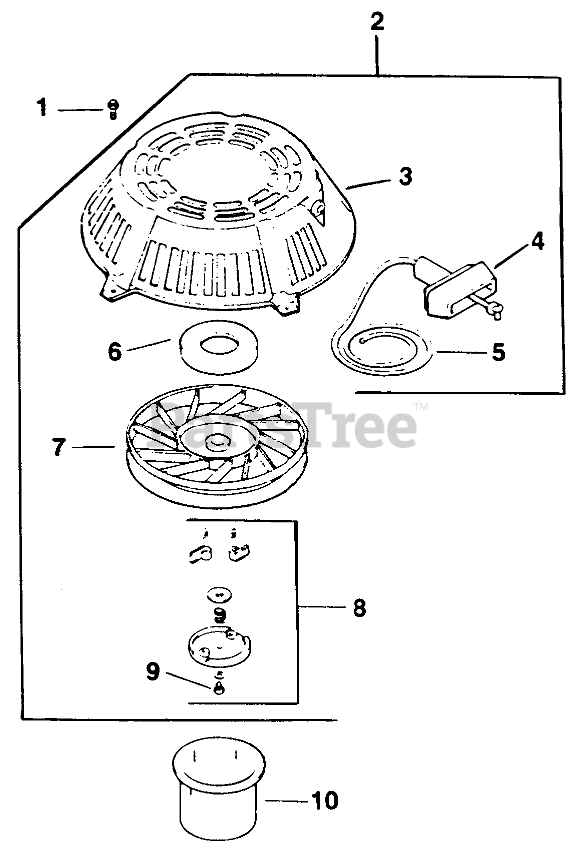

STARTING SYSTEM - ENGINE KOHLER MODEL NO. CV14T-1412 Parts Diagram

  • Title

1

Toro SM-0545010

Screw

$

$

Currently unavailable

2

12_165_01

Starter (Incl. Ref. #3-9)

$

$

Not available

3

12_081_01

Housing-Starter

$

$

Not available

4

Toro 234452

Handle

$

$

Currently unavailable

5

Toro 12-160-01

Rope-Starter

$

$

Currently unavailable

6

12_089_06

Spring & Keeper

$

$

Not available

7

12_093_01

Pullet

$

$

Not available

8

Toro 12_757_06

Kit-Dog Replacement (Incl Ref. #9)

$

$

Currently unavailable

9

Toro 41_086_09

Screw

$

$

Currently unavailable

10

Toro 15_109_01

Cup-Drive

$

$

Currently unavailable

12_113_07

Decal

Note: Not Illustrated.

$

$

Not available
