30176 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 069000001 - 690001912) (1996) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

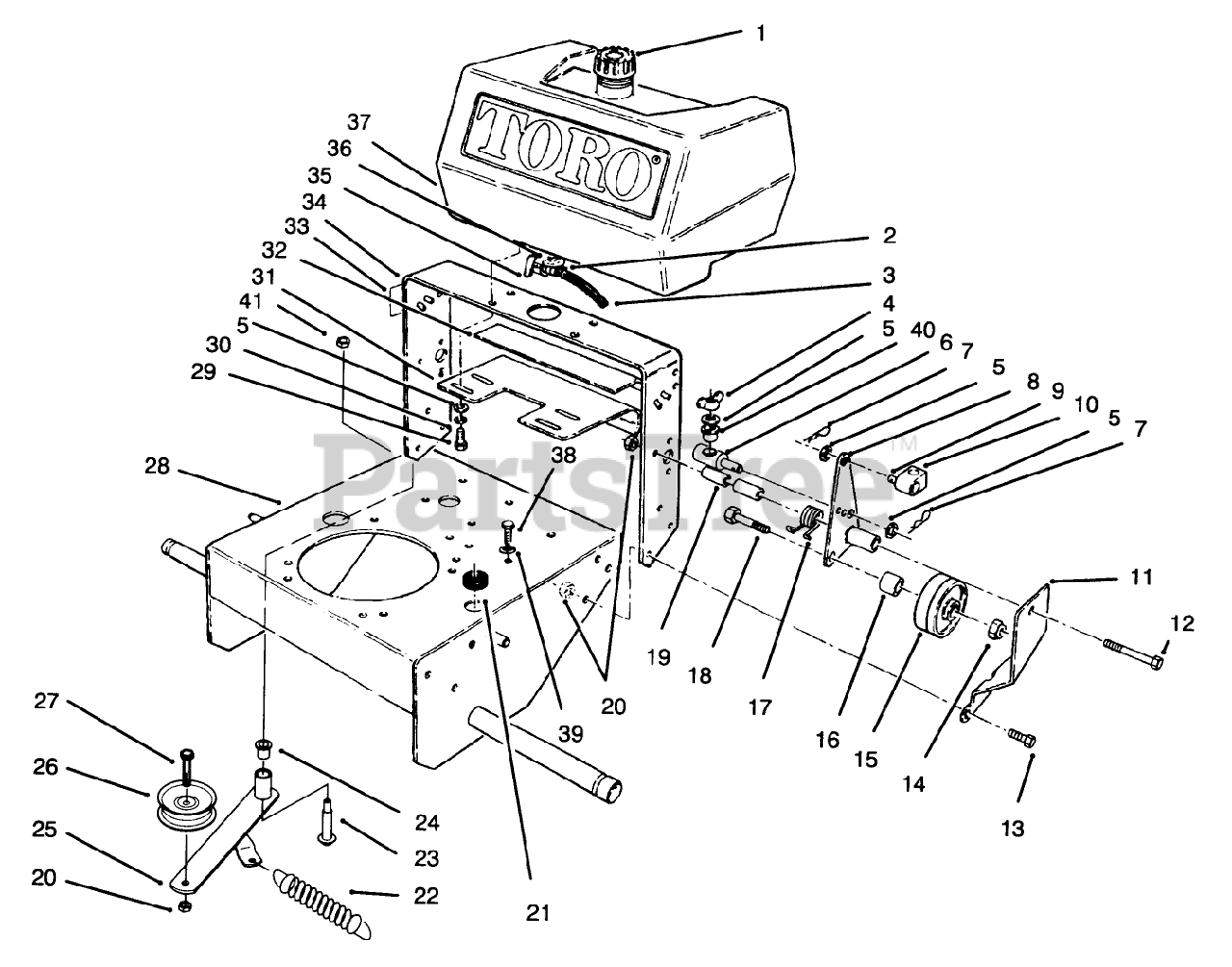

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

2

Toro 2412-103

CLAMP

$3.49

$

Usually ships in 3-6 days

0

3

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$8.49

$

In Stock, only 1 left!

0

4

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 68-9690

FITTING-ROD

$54.99

$

Usually ships in 3-6 days

0

7

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

8

Toro 74-0220

BRACKET-Idler, LH
(Superseded to 74-0220-01)

$

$

Not available

Toro 74-0230

Bracket-Idler, RH
(Superseded to 74-0230-01)

Note: Not illustrated

$75.99

$

Usually ships in 3-6 days

0

9

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

10

Toro 74-0521

FITTING-ROD

$14.99

$

In Stock, only 1 left!

0

11

Toro 67-6380

Bracket-LH
(Superseded to 67-6380-01)

$108.99

$

Usually ships in 3-6 days

0

Toro 67-6370

Bracket-RH
(Superseded to 67-6370-01)

Note: Not illustrated

$108.99

$

Usually ships in 3-6 days

0

12

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$59.99

$

Usually ships in 3-6 days

0

16

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

17

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

Toro 51-4370

SPRING-TORSION, RH

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0

18

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

19

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

22

Toro 68-2190

SPRING

$64.99

$

In Stock, only 3 left!

0

23

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

24

Toro 256-155

BUSHING-FLANGE

$2.49

$

In Stock, Qty 5

0

25

Toro 16-7509

Lever-Idler (Incl. Ref. #24)

$181.99

$

Usually ships in 3-6 days

0

26

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 2 left!

0

27

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 93-1156

Frame
(Superseded to 93-1156-01)

$

$

Not available

29

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 66-7400

Plate
(Superseded to 66-7400-01)

$

$

Not available

32

Toro 82-7750

DECAL-GROUND SPEED

$

$

Not available

33

Toro 74-0490

DECAL-FUEL SHUT OFF

$7.99

$

Usually ships in 3-6 days

0

34

Toro 74-0360

Frame Rear
(Superseded to 74-0360-01)

$

$

Not available

35

Toro 74-0510

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

36

Toro 237-7

O-RING

$8.99

$

Usually ships in 3-6 days

0

37

Toro 82-8440

FUEL TANK

$451.99

$

Usually ships in 3-6 days

0

38

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

39

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

40

Toro 52-2890

BUSHING-NYLON

$2.99

$

Usually ships in 3-6 days

0

41

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0
