30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 069005001 - 699999999) (1996) BLOWER HOUSING & BAFFLES Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

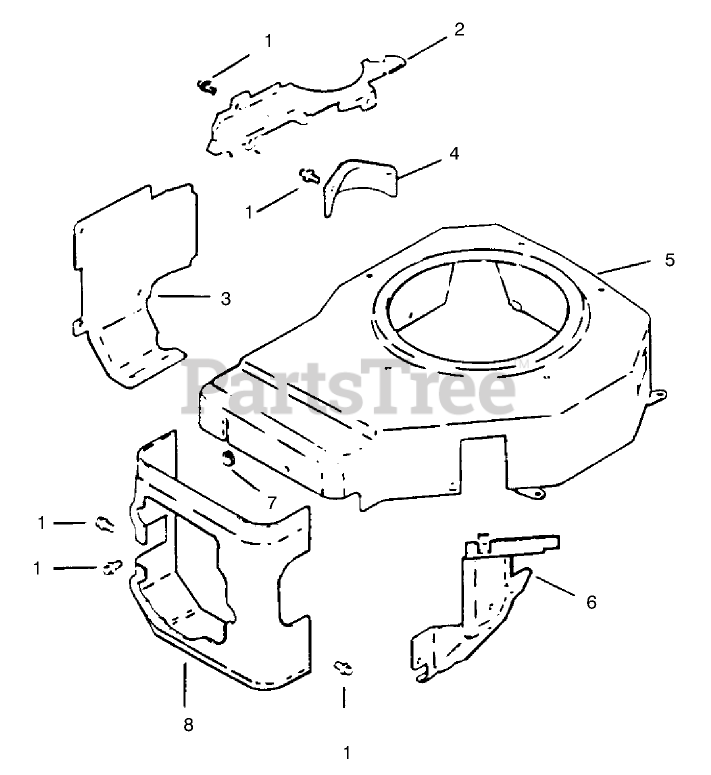

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title
1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 14

0

2

1214607

Plate-Blower Housing

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1206301

Baffle-Cylinder

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1209623

Cover-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1202711

Housing-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1206305

Baffle-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1231303

Grommet-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1206301

Baffle-Cylinder

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213331

Decal-H.p.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
