30177 - Toro ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 200000001 - 200999999) (2000) EXHAUST Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 15hp

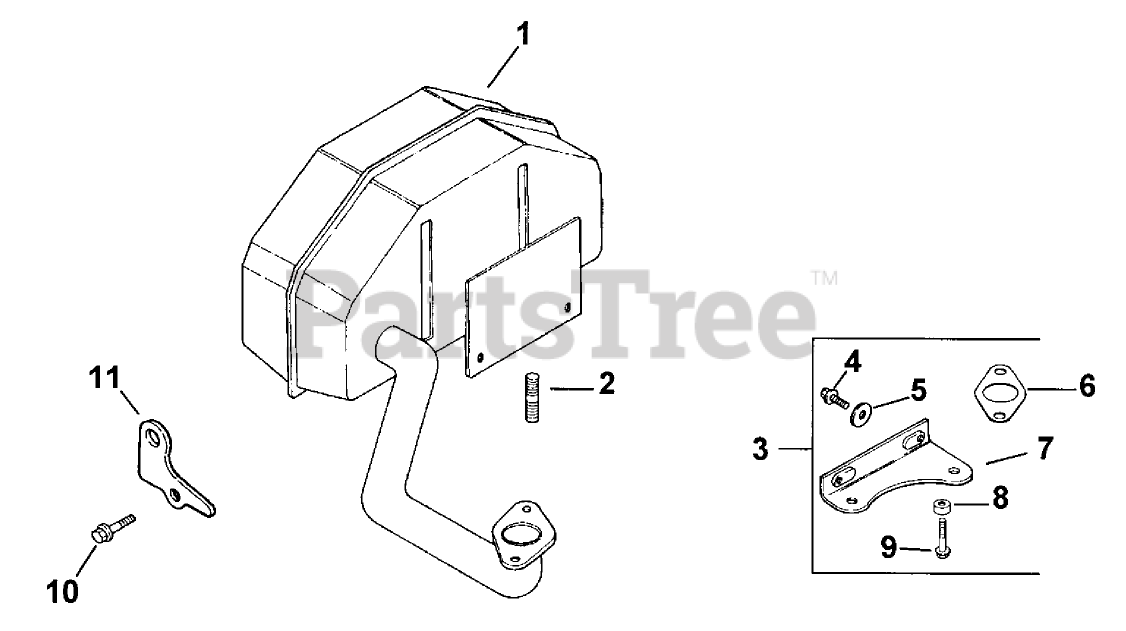

EXHAUST Parts Diagram

  • Title

1

1206803

Muffler

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available

2

Kohler M-0829033

Stud
(Superseded to M-829033)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$3.99

$

In Stock, Qty 20+

0

3

1275530

Kit-Bracket (Incl. Ref.#4-9)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available

4

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$3.49

$

In Stock, only 3 left!

0

5

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$3.99

$

In Stock, only 2 left!

0

6

1204103

Gasket-Exhaust

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available

7

1212655

Bracket-Muffler

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available

8

1246801

Washer

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available

9

1208613

Screw

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available

10

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 12

0

11

1244506

Strap-Lifting

Note: ENGINE KOHLER MODEL NO. CV15T Spec 41560 Obtain Parts From Kohler

$

$

Not available
