30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) AIR CLEANER/INTAKE ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

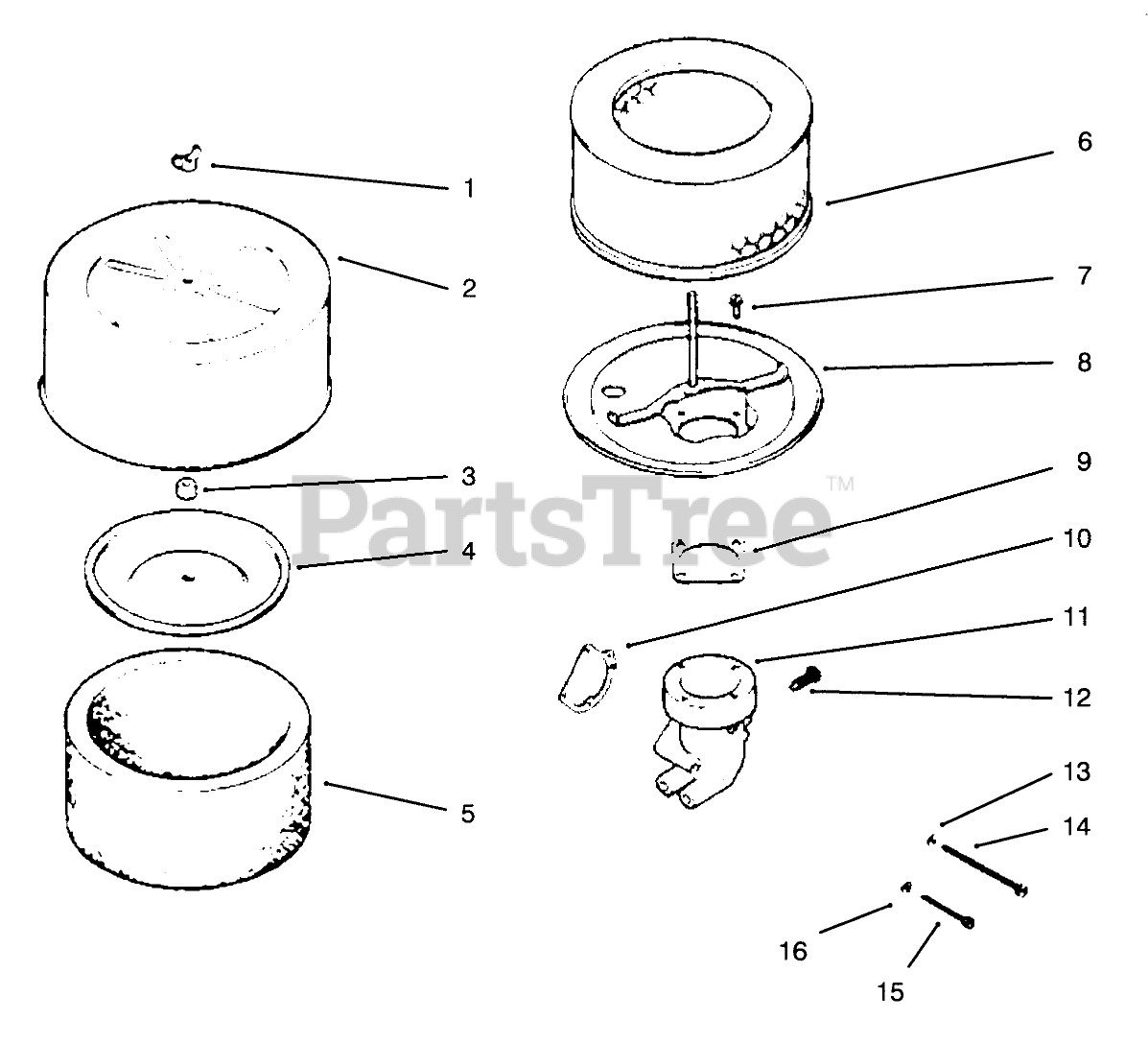

AIR CLEANER/INTAKE ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

2

4508201

Cover-Air Cleaner

$

$

Not available

3

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

In Stock, Qty 7

0

4

5208204

Cover-Inner

$

$

Not available

5

4508301

Precleaner

$

$

Not available

6

4508302

Element

$

$

Not available

7

Kohler X-67-98

Screw-H.C.
(Superseded to X-67-98-S)

$3.49

$

In Stock, Qty 9

0

8

5209406

Base-Air Cleaner

$

$

Not available

9

Kohler 277093

Gasket-Air Cleaner
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 8

0

10

2504106

Gasket

$

$

Not available

11

5275402

Elbow-Kit (Incl.Ref.#10 & 12)

$

$

Not available

12

5208611

Screw-Self Tap

$

$

Not available

13

Toro X-22-79

Washer-Flat

$

$

Currently unavailable

14

Kohler X-50-37

Screw-R.H.M.
(Superseded to X-50-37-S)

$3.99

$

In Stock, Qty 5

0

15

Kohler X-50-57

Screw-R.H.M.
(Superseded to X-50-57-S)

$5.49

$

In Stock, only 1 left!

0

16

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

2511307

Decal

Note: Not illustrated

$

$

Not available
