30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) EXHAUST KOHLER ENGINE CV18S - PS 61521 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

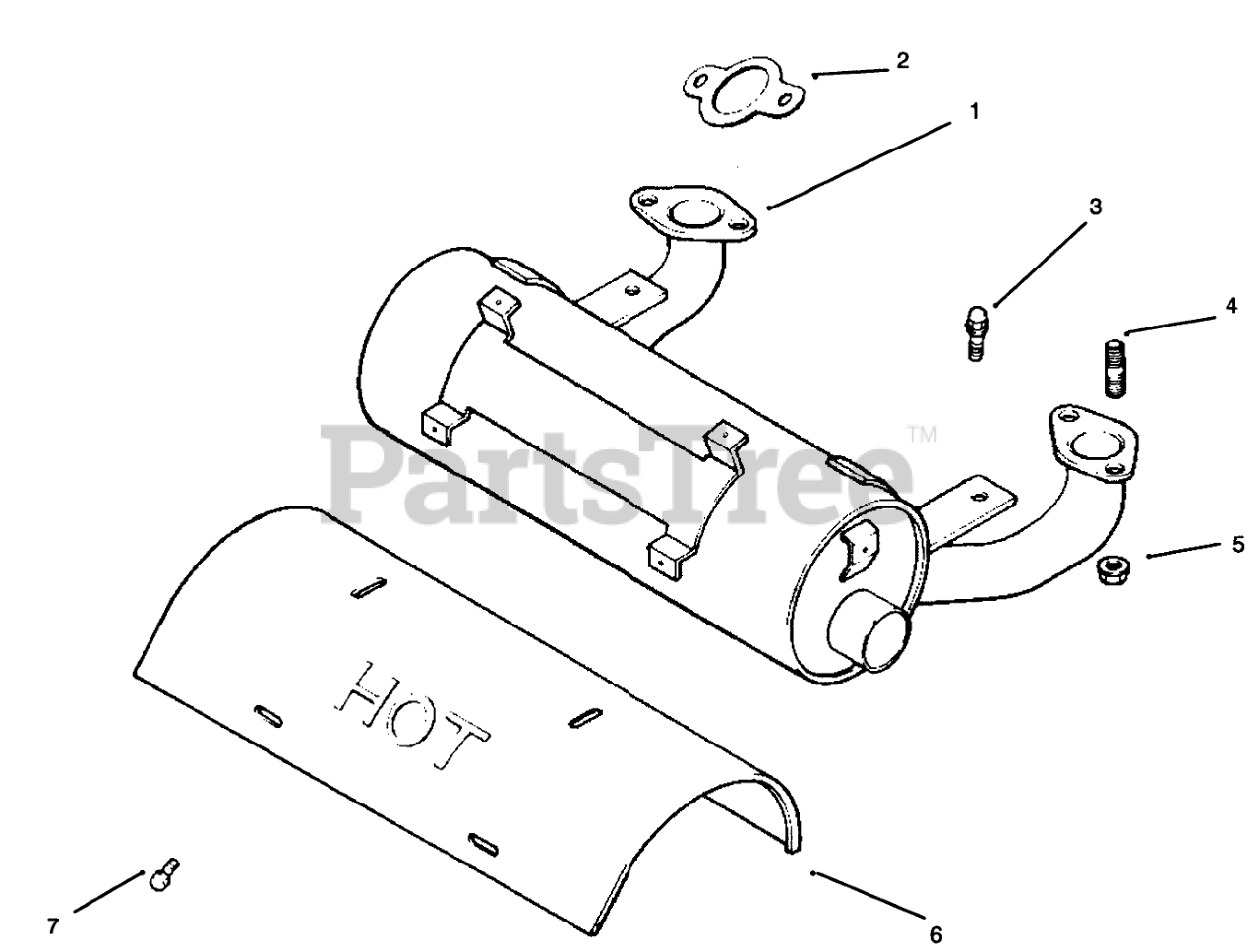

EXHAUST KOHLER ENGINE CV18S - PS 61521 Parts Diagram

  • Title

1

2406808

Muffler

$

$

Not available

2

Kohler 24 041 02

Gaskt-Exhaust
(Superseded to 24 041 02-S)

$

$

Not available

3

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, Qty 20+

0

4

Kohler M-0829033

Stud
(Superseded to M-829033)

$3.99

$

In Stock, Qty 20+

0

5

Kohler M-0841080

Nut
(Superseded to M-841080)

$2.49

$

In Stock, Qty 13

0

6

2428107

Duct-Heat Shield

$

$

Not available

7

2508640

Screw

$

$

Not available

2478205

Miniblock

Note: Not illustrated

$

$

Not available

2475503

Gasket Set

Note: Not illustrated

$

$

Not available
