30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) CYLINDER HEAD/VALVE/BREATHER-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

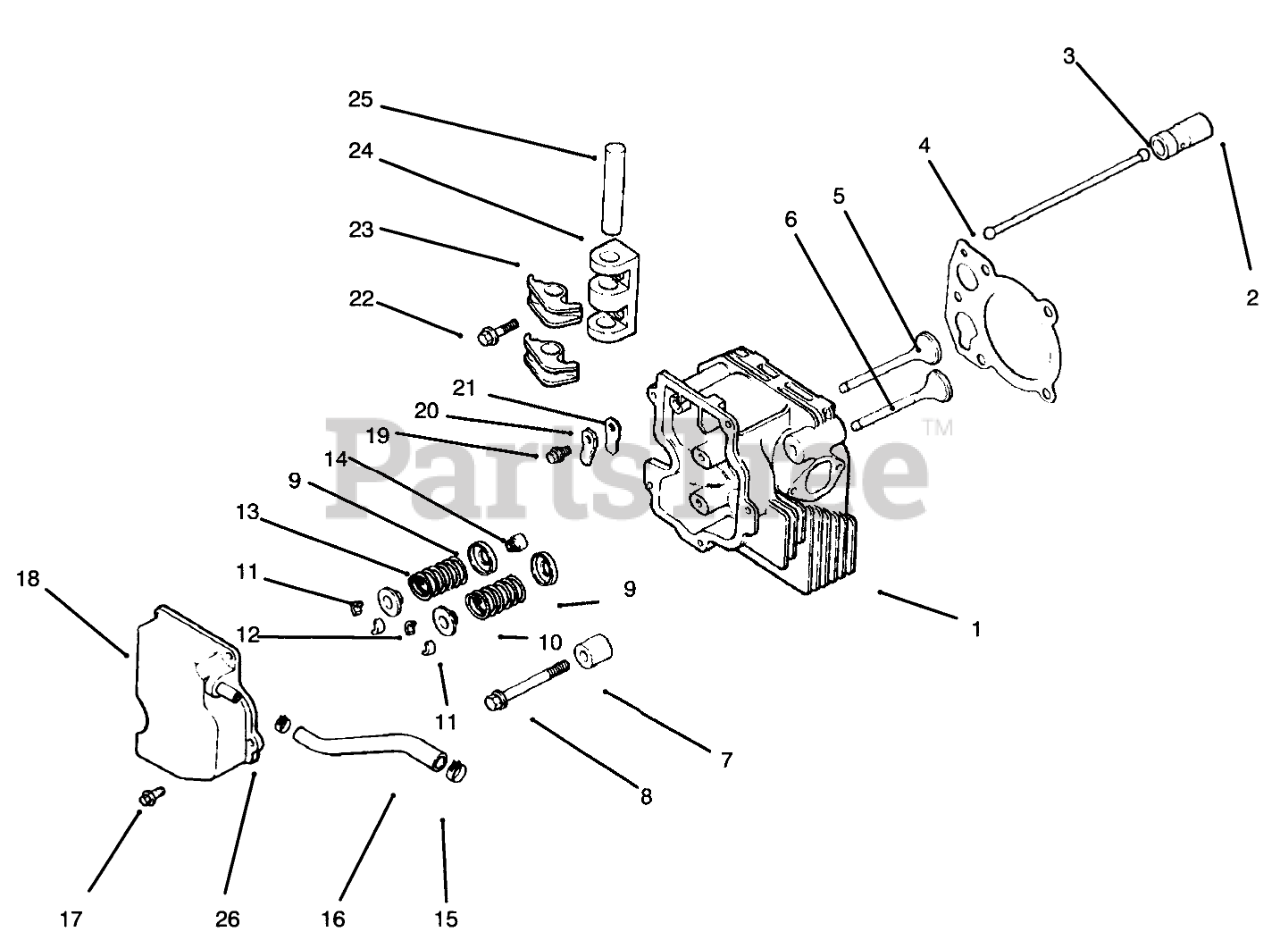

CYLINDER HEAD/VALVE/BREATHER-ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

  • Title

1

12_318_01

Cylinder Head

$

$

Not available

Toro 12_755_02

Kit Cylinder Head

Note: Not illustrated

$

$

Currently unavailable

2

Toro 12_351_01

Lifter-Valve

$

$

Currently unavailable

3

Toro 12_441_01

Rod-Push

$

$

Currently unavailable

4

12_041_04

Gasket-Cylinder Head

$

$

Not available

5

12_017_01

Valve-Intake STD

$

$

Not available

12_017_02

Valve-Intake .25

Note: Not illustrated

$

$

Not available

6

12_016_01

Valve-Exhaust STD

$

$

Not available

12_016_02

Valve-Exhaust .25

Note: Not illustrated

$

$

Not available

7

12_112_04

Spacer-Head Bolt

$

$

Not available

8

Toro SM-1040080

Screw-Cylinder Head

$

$

Currently unavailable

9

Toro 52_018_01

Retainer-Spring

$

$

Currently unavailable

10

12_089_15

Spring-Valve Intake

$

$

Not available

11

Toro 12_173_01

Cap-Valve Spring

$

$

Currently unavailable

12

Toro 12_755_03

Kit-Retainer

$

$

Currently unavailable

13

12_089_13

Spring-Valve, Intake

$

$

Not available

14

12_032_02

Seal

$

$

Not available

15

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, Qty 6

0

16

12_326_03

Hose-Breather

$

$

Not available

17

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, Qty 20+

0

18

12_096_07

Cover-Valve

$

$

Not available

19

Kohler SM-0545010

Screw

$

$

Not available

20

12_018_01

Retainer-Reed

$

$

Not available

21

Toro 12_402_01

Reed

$

$

Currently unavailable

22

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

23

Toro 12_189_01

Arm-Rocker

$

$

Currently unavailable

24

12_126_05

Bridge-Rocker Arm

$

$

Not available

25

12_144_03

Shaft-Rocker Arm

$

$

Not available

26

Kohler X-426-3

Clamp-Hose
(Superseded to X-426-3-S)

$6.49

$

Usually ships in 2-5 days

0
