30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

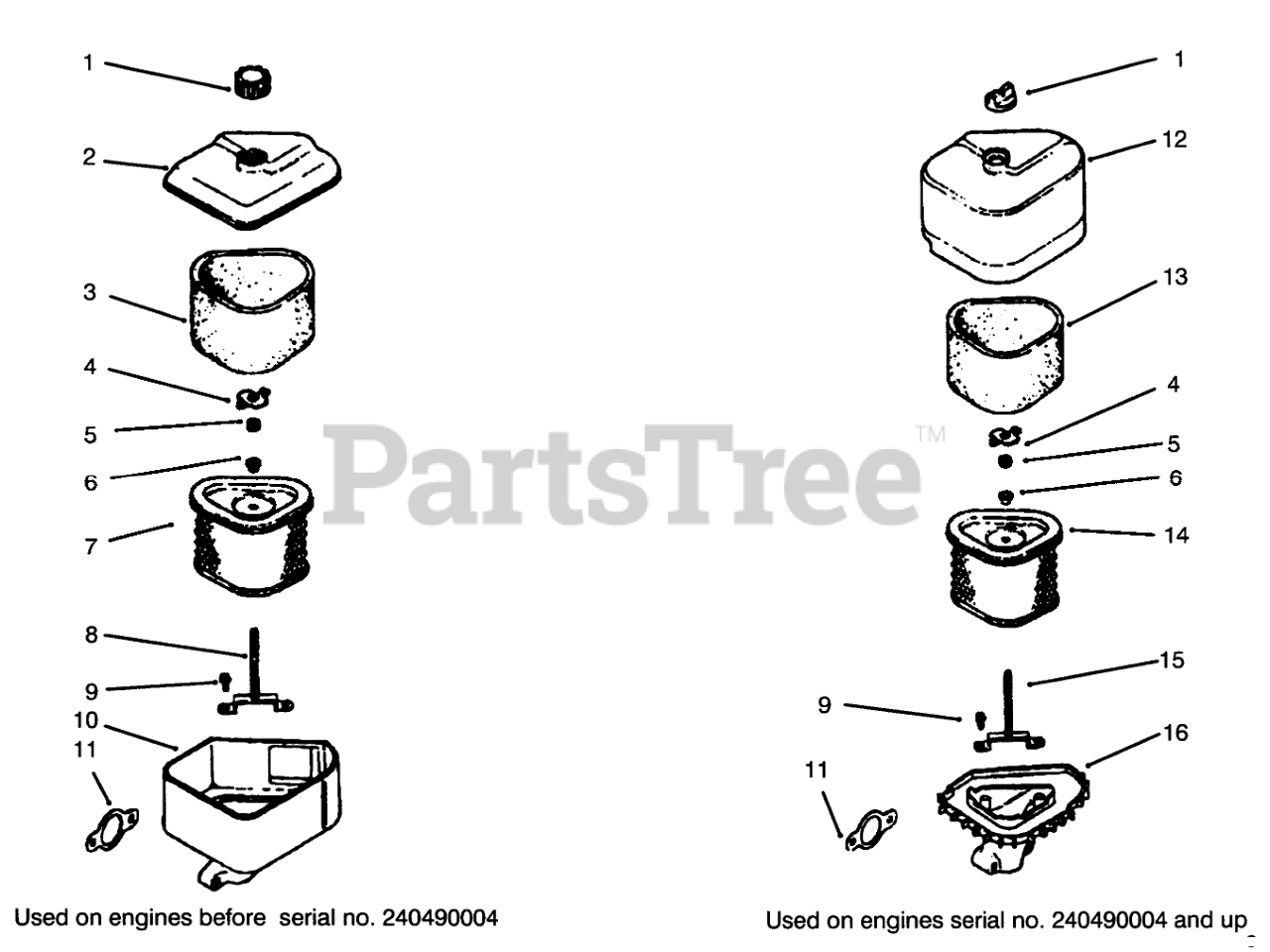

ENGINE KOHLER MODEL NO. CV14 S-1429 Parts Diagram

  • Title

1

12_341_01

Knob-Cover

$

$

Not available

2

12_096_06

Cover-Air Cleaner

$

$

Not available

3

12_083_08

Element-Precleaner

$

$

Not available

4

12_100_01

Nut-Wing

$

$

Not available

5

Toro X-25-63

Washer

$

$

Currently unavailable

6

12_313_04

Grommet

$

$

Not available

7

12_083_05

Element-Air Cleaner

$

$

Not available

8

12_072_03

Plate-Stud

$

$

Not available

9

12_086_01

Screw

$

$

Not available

10

12_094_01

Base

$

$

Not available

11

12_041_02

Gasket

$

$

Not available

12

12_096_16

Cover-Air Cleaner

$

$

Not available

13

12_083_12

Precleaner-Element

$

$

Not available

14

12_083_10

Element-Air Cleaner

$

$

Not available

15

12_072_04

Stud-Mounting Plate

$

$

Not available

16

12_094_07

Base-Air Cleaner

$

$

Not available
