30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 079000001 - 079999999) (1997) AIR CLEANER Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

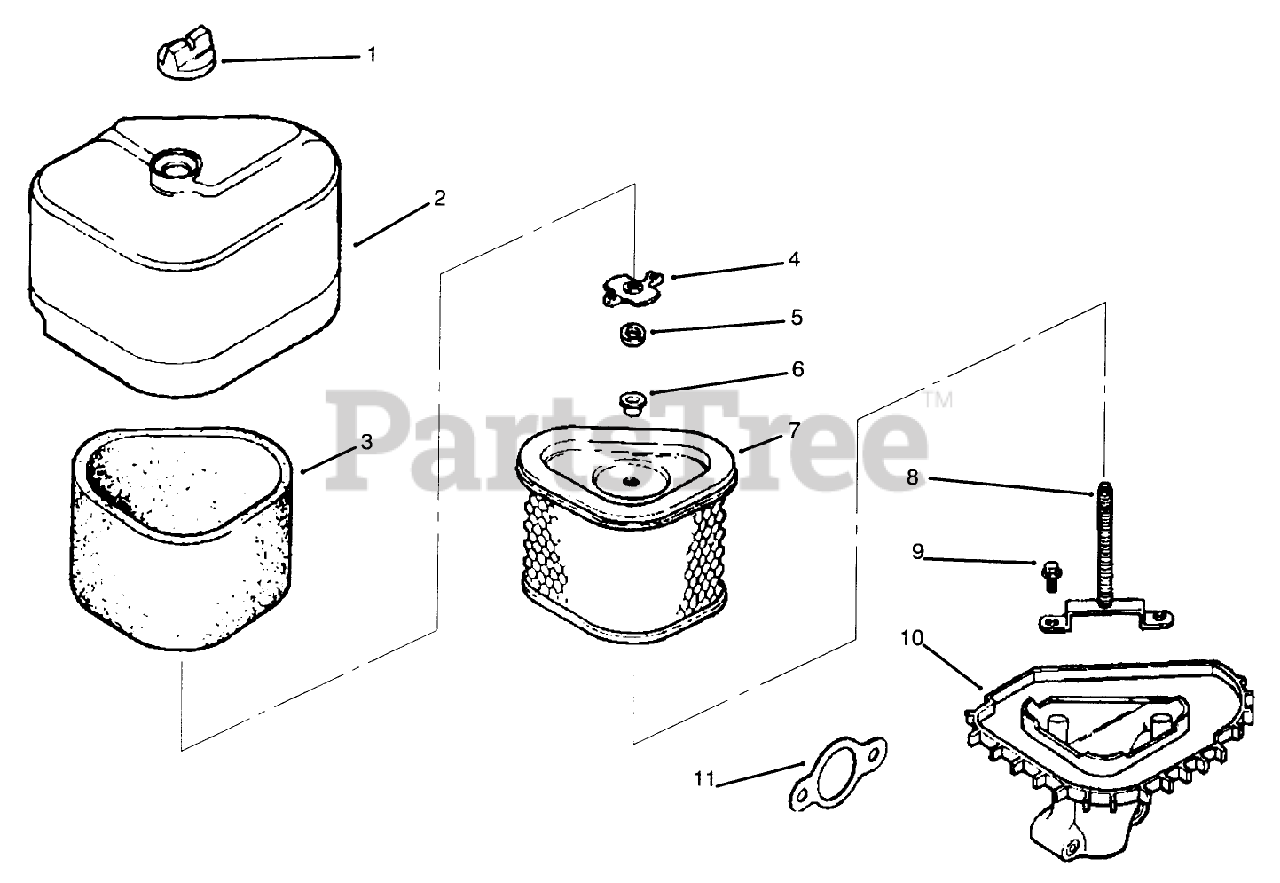

AIR CLEANER Parts Diagram

  • Title

1

2534102

Knob-Cover

$

$

Not available

2

1209616

Cover-Air Cleaner

$

$

Not available

3

1208312

Precleaner-Element

$

$

Not available

4

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

$3.99

$

In Stock, Qty 15

0

5

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

6

Toro 1231304

Grommet

$

$

Currently unavailable

7

1208310

Element-Air Cleaner

$

$

Not available

8

1207204

Stud-Mounting Plate

$

$

Not available

9

1208601

Screw

$

$

Not available

10

1209407

Base-Air Cleaner

$

$

Not available

11

1204102

Gasket-Air Cleaner

$

$

Not available

1273402

Kit-Air Cleaner (Incl. Ref. #1-11)

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

$2.49

$

In Stock, only 1 left!

0
