30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 089000001 - 089999999) (1998) BLOWER HOUSING AND BAFFLES-ENGINE KOHLER MODEL NO. C15S SPEC 41561 Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

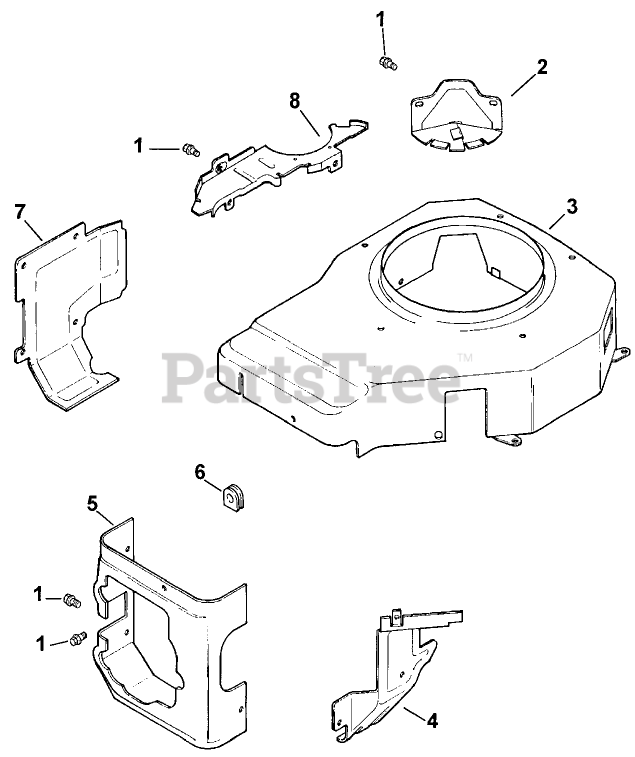

BLOWER HOUSING AND BAFFLES-ENGINE KOHLER MODEL NO. C15S SPEC 41561 Parts Diagram

  • Title
1

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 14

0

2

Kohler 12 096 39

Cover-Starter
(Superseded to 12 096 39-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

Usually ships in 2-5 days

0

3

1202709

Housing-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1206305

Baffle-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1206308

Baffle-Cyl. Head

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1231303

Grommet-Blower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1206301

Baffle-Cylinder

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1214607

Plate-Blower Housing

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213367

Decal-Hoursepower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1213367

Decal-Hoursepower

Note: Not illustrated

$

$

Not available
