30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) ENGINE AND OIL COOLER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

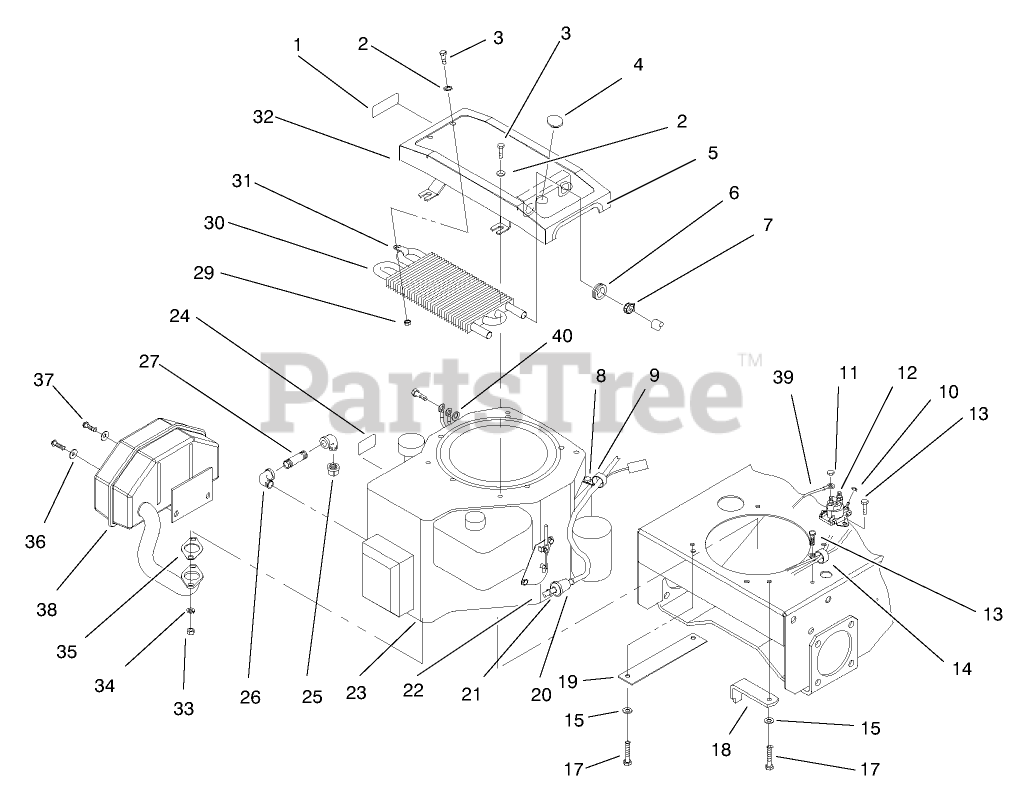

ENGINE AND OIL COOLER ASSEMBLY Parts Diagram

  • Title

1

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

2

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 2410-71

PLUG-PLASTIC

$

$

Not available

5

Toro 29-0642

TRIM-MOUNT, COOLER

$

$

Not available

6

Toro 240-9

GROMMET

$4.49

$

In Stock, only 1 left!

0

7

Toro 2412-136

CLAMP-HOSE

$12.99

$

Usually ships in 3-6 days

0

8

Toro 32144-19

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 2412-106

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

11

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

12

Toro 28-4210

SOLENOID

$64.99

$

In Stock, only 3 left!

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 2412-106

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

18

Toro 51-4540-03

RETAINER-CLUTCH

$19.99

$

Usually ships in 3-6 days

0

19

Toro 94-5847-01

COVER-PULLEY

$12.99

$

Usually ships in 3-6 days

0

20

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

22

Toro 47-2964

HOSE-FUEL
(Superseded to 110-4895)

$16.99

$

Usually ships in 3-6 days

0

23

Engine-15 HP Kohler, Cv15t Ps-41561

Note: Not serviced separately

$

$

Not available

24

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

25

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

26

Toro 74-0950

ELBOW-STREET, 90 DEG

$

$

Not available

27

Toro 289-46

NIPPLE-PIPE

$

$

Not available

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 100-6480

COOLER-OIL
(Superseded to 105-4609)

$

$

Not available

31

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

32

Toro 82-4500-03

MOUNT-COOLER

$357.99

$

Usually ships in 3-6 days

0

33

Toro 93-7034

NUT-MUFFLER

$

$

Not available

34

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 93-7032

GASKET-EXHAUST

$

$

Not available

36

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

37

Toro 93-7033

SCREW-MUFFLER

$

$

Not available

38

Toro 95-5517

MUFFLER

$

$

Not available

39

Toro 54-3092

WIRE ASM

$

$

Not available

40

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0
