30190 - Toro ProLine Walk-Behind Mower, Hydro Drive, 18hp (SN: 010000001 - 019999999) (1991) BAFFLE & SHROUD-KOHLER ENGINE MODEL NO. MV18S-TYPE 58543 Parts Diagram
ProLine Walk-Behind Mower, Hydro Drive, 18hp

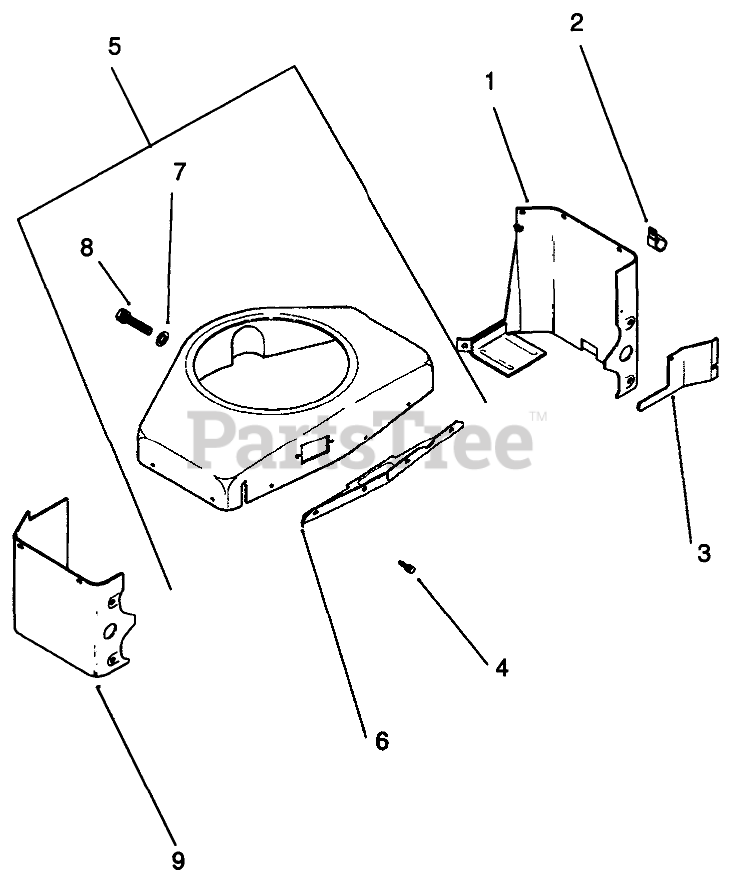

BAFFLE & SHROUD-KOHLER ENGINE MODEL NO. MV18S-TYPE 58543 Parts Diagram
Toro 52_063_21
Baffle-Cylinder Head
$
$
Currently unavailable
Toro 48_154_01
Clamp
$
$
Currently unavailable
Toro 52_063_01
Baffle-Cylinder Head
$
$
Currently unavailable
$2.49
$
In Stock, only 1 left!
Toro 82_755_01
Kit-Blower Housing
$
$
Currently unavailable
Toro 52_217_01
Support-Upper Housing
$
$
Currently unavailable
Toro 52_468_16
Washer
$
$
Currently unavailable
8
52_086_11
Screw-H.C
$
$
Not available
Toro 52_124_23
Baffle-Cylinder Head
$
$
Currently unavailable
