30190 - Toro ProLine Walk-Behind Mower, Hydro Drive, 18hp (SN: 010000001 - 019999999) (1991) ELECTRIC SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 18hp

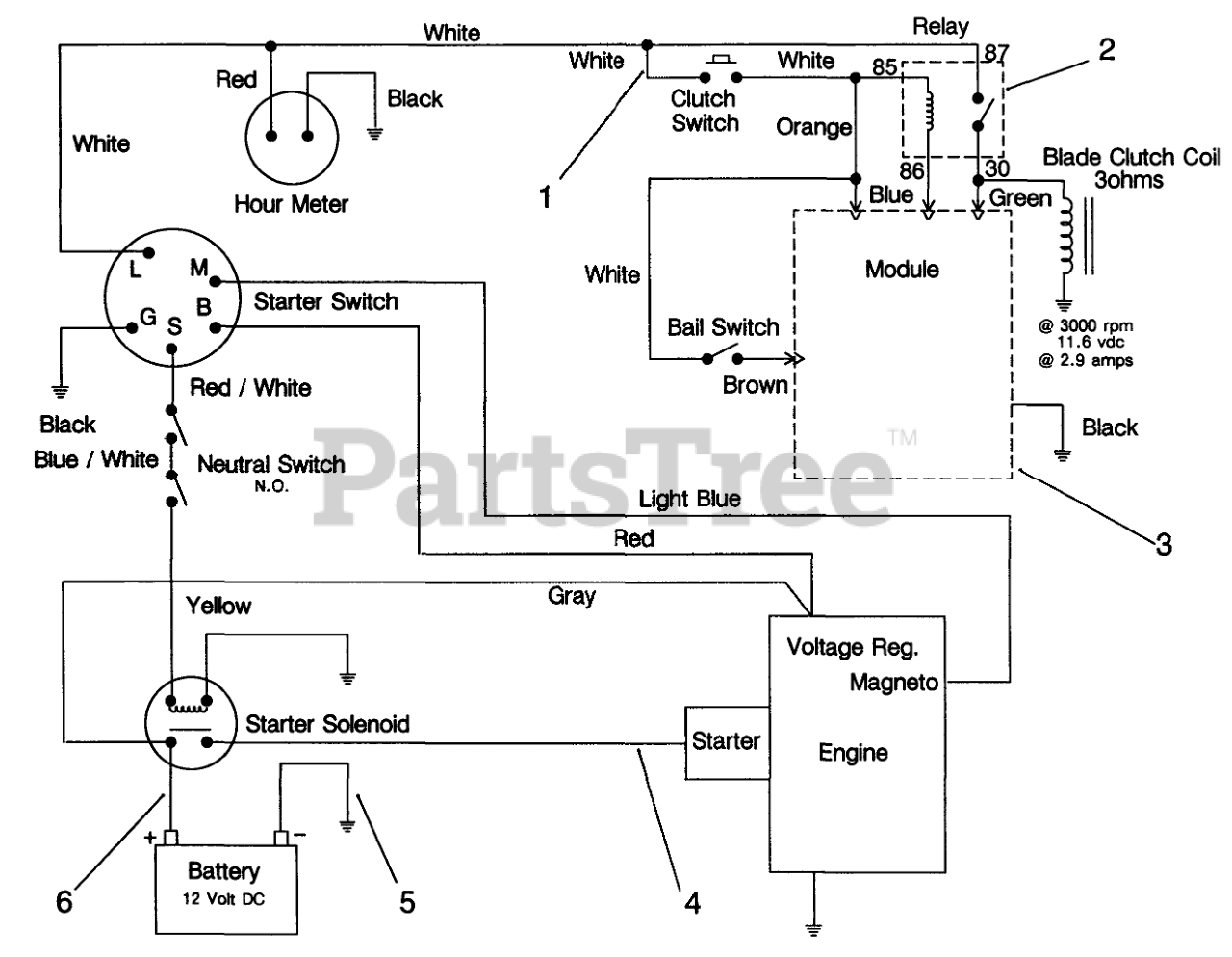

ELECTRIC SCHEMATIC Parts Diagram

  • Title

1

Toro 82-4510

WIRE HARNESS

$

$

Not available

2

Toro 63-7540

Relay
(Superseded to 63-7590)

$79.99

$

In Stock, only 1 left!

0

3

Toro 82-3850

Module
(Superseded to 94-5818)

$

$

Not available

4

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

5

Toro 54-3090

WIRE ASM

$36.99

$

Usually ships in 3-6 days

0

6

Toro 28-3893

WIRE ASM

$24.99

$

Usually ships in 3-6 days

0
