30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) ENGINE CONTROLS Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

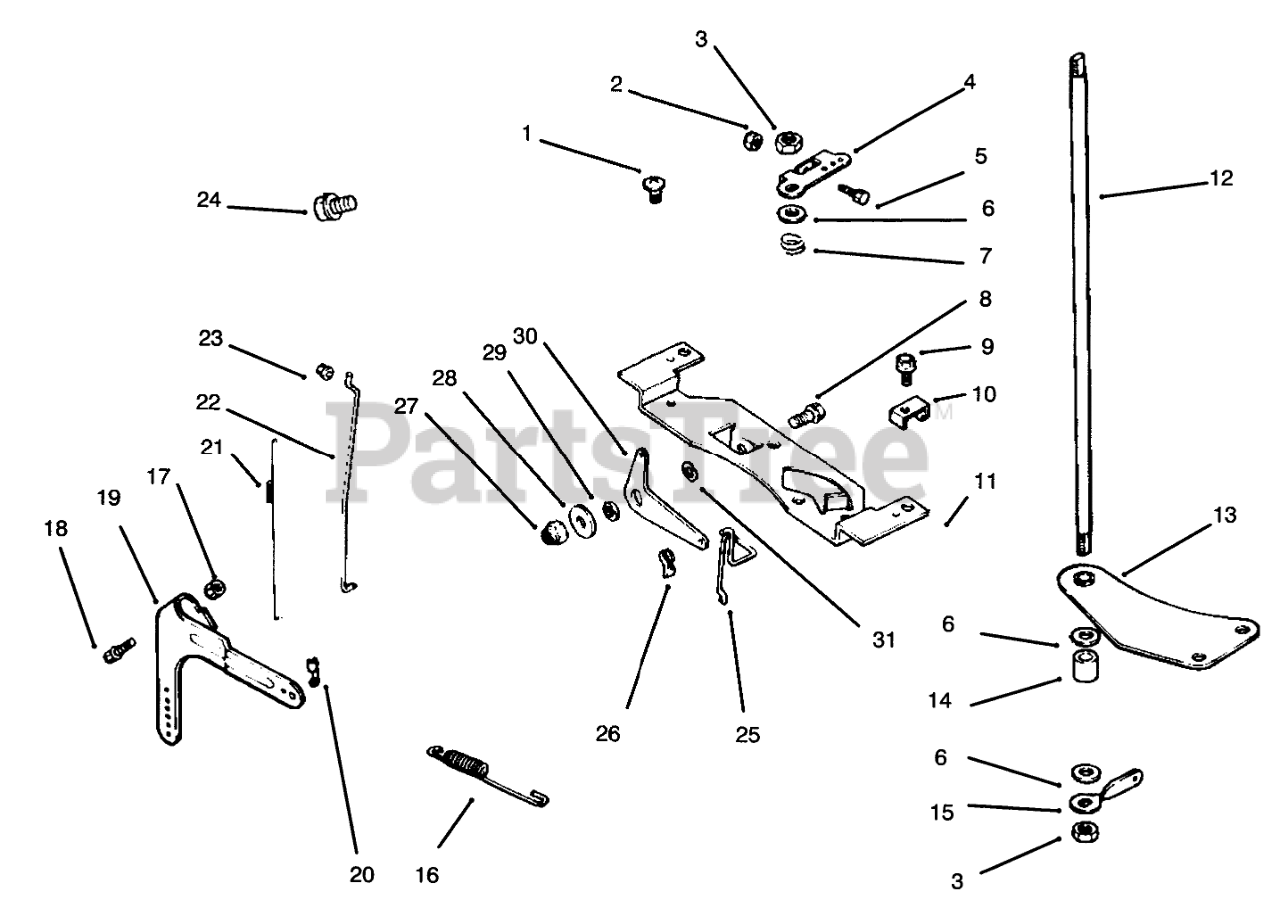

ENGINE CONTROLS Parts Diagram

  • Title

1

Toro 24_086_06

Screw

$

$

Currently unavailable

2

Kohler M-0446030

Nut
(Superseded to M-446030-S)

$2.49

$

In Stock, Qty 11

0

3

Kohler M-0647060

Nut
(Superseded to M-647060-S)

$2.49

$

In Stock, Qty 10

0

4

24_090_09

Lever-Throttle Control

$

$

Not available

5

Kohler M-0401030

Screw
(Superseded to M-401030-S)

$3.49

$

In Stock, only 3 left!

0

6

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, Qty 11

0

7

24_089_20

Spring-Throttle Shaft

$

$

Not available

8

Kohler M-0639016

Screw
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

9

Toro SM-054016

Screw

$

$

Currently unavailable

10

Toro 12_237_01

Clamp-Cable

$

$

Currently unavailable

11

24_126_47

Bracket-Control

$

$

Not available

12

24_144_11

Shaft-Throttle

$

$

Not available

13

24_126_17

Bracket-Throttle Shaft

$

$

Not available

14

Toro 52_122_10

Spacer

$

$

Currently unavailable

15

24_090_12

Lever-Throttle Control

$

$

Not available

16

Toro 24_089_18

Spring-Governor

$

$

Currently unavailable

17

Kohler SM-0641060

Nut

$

$

Not available

18

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

19

Toro 24_090_14

Lever-Governor

$

$

Currently unavailable

20

Toro 25_158_11

Bushing-Linkage

$

$

Currently unavailable

21

Toro 24_089_01

Spring-Linkage

$

$

Currently unavailable

22

Toro 24_079_04

Linkage-Throttle

$

$

Currently unavailable

23

Toro 25_158_08

Bushing-Linkage

$

$

Currently unavailable

24

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 20+

0

25

24_079_08

Linkage-Choke

$

$

Not available

26

Toro 25_158_11

Bushing-Linkage

$

$

Currently unavailable

27

Kohler M-0647060

Nut
(Superseded to M-647060-S)

$2.49

$

In Stock, Qty 10

0

28

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

$3.99

$

In Stock, only 2 left!

0

29

Toro 25_431_01

Spacer

$

$

Currently unavailable

30

24_090_20

Lever-Choke

$

$

Not available

31

Kohler 277341

Washer
(Superseded to 277341-S)

$7.49

$

Usually ships in 2-5 days

0
