30191 - Toro ProLine Walk-Behind Mower, Hydro Drive, 20hp (SN: 059000001 - 059999999) (1995) ENGINE,& COOLER Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 20hp

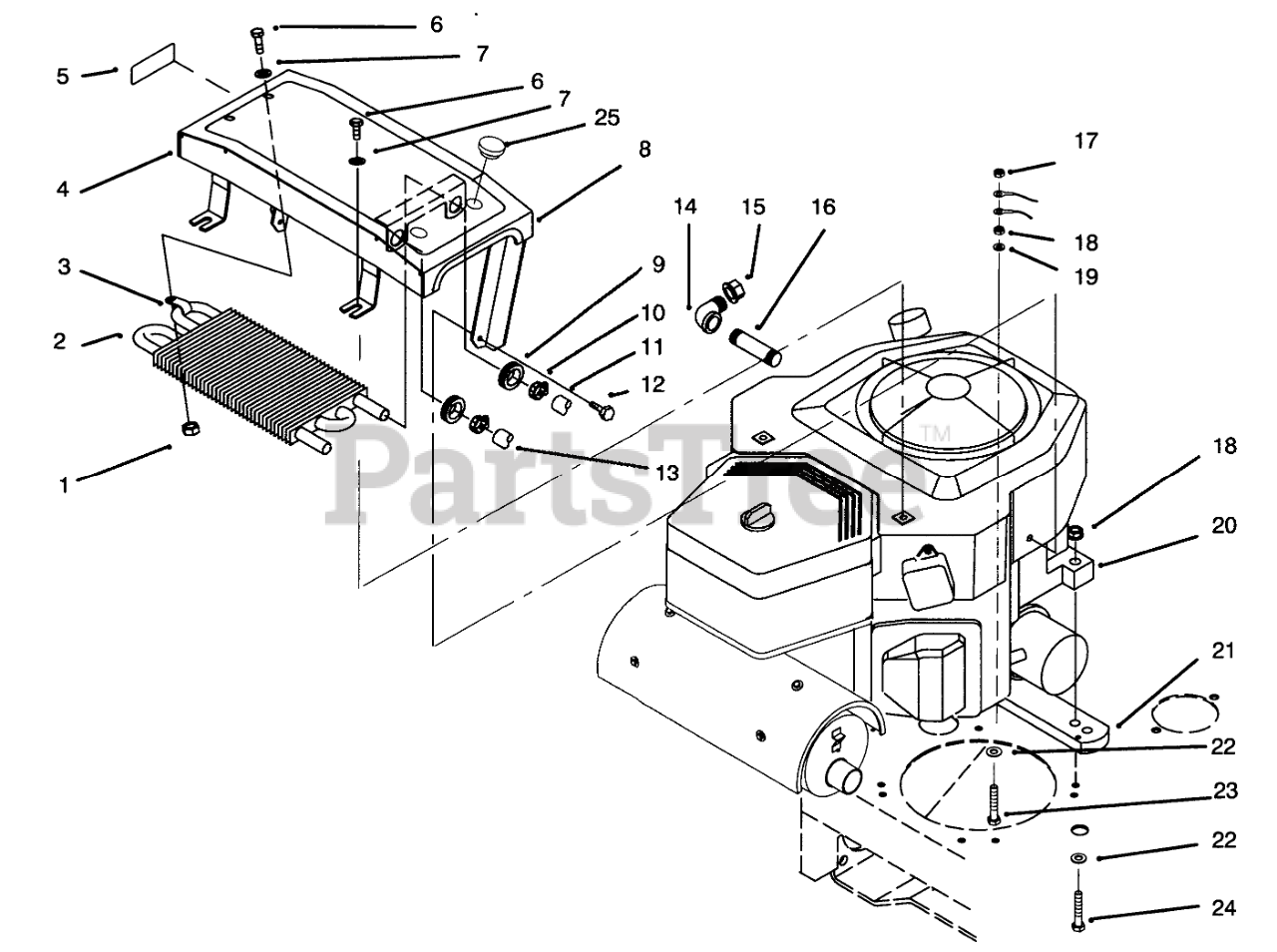

ENGINE,& COOLER Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 82-4220

Cooler-Oil
(Superseded to 105-4609)

$

$

Not available

3

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

4

Toro 93-1183

Mount-Cooler
(Superseded to 93-1183-03)

$

$

Not available

5

Toro 74-0490

DECAL-FUEL SHUT OFF

$7.99

$

Usually ships in 3-6 days

0

6

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 29-0642

TRIM-MOUNT, COOLER

$

$

Not available

9

Toro 240-9

GROMMET

$4.49

$

In Stock, only 1 left!

0

10

Toro 2412-136

CLAMP-HOSE

$12.99

$

Usually ships in 3-6 days

0

11

Toro 82-4191

HYDRAULIC HOSE ASM

$

$

Not available

12

Screw-w/Engine

$

$

Not available

13

Toro 82-4190

HYDRAULIC HOSE ASM

$

$

Not available

14

Toro 2811-10

ELBOW-STREET, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

15

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

16

Toro 289-42

NIPPLE

$17.99

$

Usually ships in 3-6 days

0

17

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

18

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 11

0

20

Engine 18Hp. Kohler (Ref.)

$

$

Not available

21

Toro 93-1176

SPACER - ENGINE

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

24

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

25

Toro 2410-71

PLUG-PLASTIC

$

$

Not available
