30193 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 230000001 - 230005000) (2003) STARTER ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

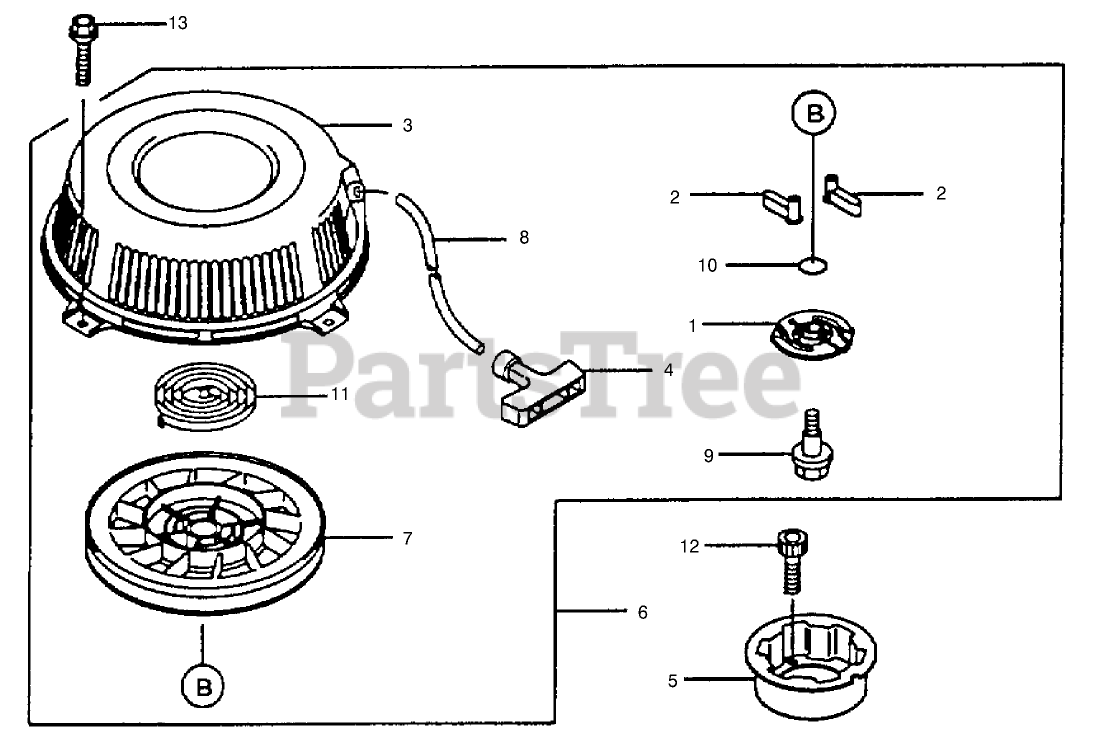

STARTER ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

  • Title

1

Toro 10370-2102

Guide

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

2

Kawasaki 13165-2092

Pawl-Recoil Starter

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 20+

0

3

Kawasaki 32099-2308-9H

Case-Spring
(Superseded to 32099-2377-9H)

Note: Obtain Parts From Kawasaki

$

$

Not available

4

Kawasaki 46075-2106

Grip-Recoil Starter

Note: Obtain Parts From Kawasaki

$12.99

$

In Stock, Qty 16

0

5

Kawasaki 49080-2176

Pulley-Starting

Note: Obtain Parts From Kawasaki

$

$

Not available

6

Kawasaki 49088-2473-9H

Starter-Recoil
(Superseded to 49088-2473-YK)

Note: Obtain Parts From Kawasaki

$143.99

$

In Stock, only 2 left!

0

7

Toro 59101-2103

Reel-Recoil Starter

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

8

Kawasaki 59106-2082

Rope
(Superseded to 59106-2157)

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 6

0

9

Kawasaki 92009-2382

Screw

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 3 left!

0

10

Kawasaki 92033-2175

Ring-Snap

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 11

0

11

Toro 92144-2399

Spring

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

12

Toro 120p0620

Bolt-Socket

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

13

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 14

0

16

Kawasaki 49088-2412-YK

Starter-Recoil

Note: Obtain Parts From Kawasaki

$175.99

$

In Stock, only 4 left!

0
