30193 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 230005001 - 230999999) (2003) MUFFLER ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 12.5hp

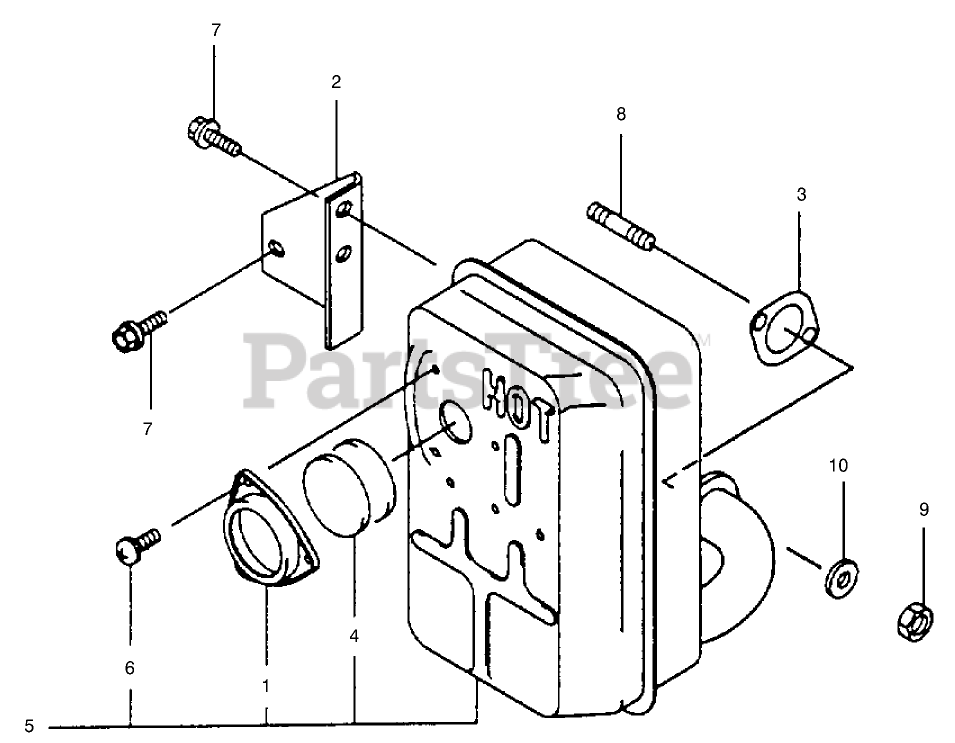

MUFFLER ASSEMBLY KAWASAKI FB460V-MS14 Parts Diagram

  • Title

1

Kawasaki 11012-2251-9Y

Cap-Spark Arrester
(Superseded to 11012-2165-9Y)

Note: Obtain Parts From Kawasaki

$

$

Not available

2

Kawasaki 11046-2163-9Y

Bracket
(Superseded to 11046-2163)

Note: Obtain Parts From Kawasaki

$

$

Not available

3

Toro 11060-2379

Gasket

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

4

Kawasaki 18077-2052

Arrester-Spark

Note: Obtain Parts From Kawasaki

$

$

Not available

5

Kawasaki 49069-2210-9Y

Muffler Assembly

Note: Obtain Parts From Kawasaki

$

$

Not available

6

Kawasaki 92009-2166

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

7

Toro 130G0812

Bolt-Flanged (8X12)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

8

Toro 171G0818

Bolt-Stud

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

9

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

10

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
