30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 007000001 - 007999999) (1987) Hydraulic Lift Cylinder No. 54-0150 Parts Diagram

44" Mower Deck for Groundsmaster 120

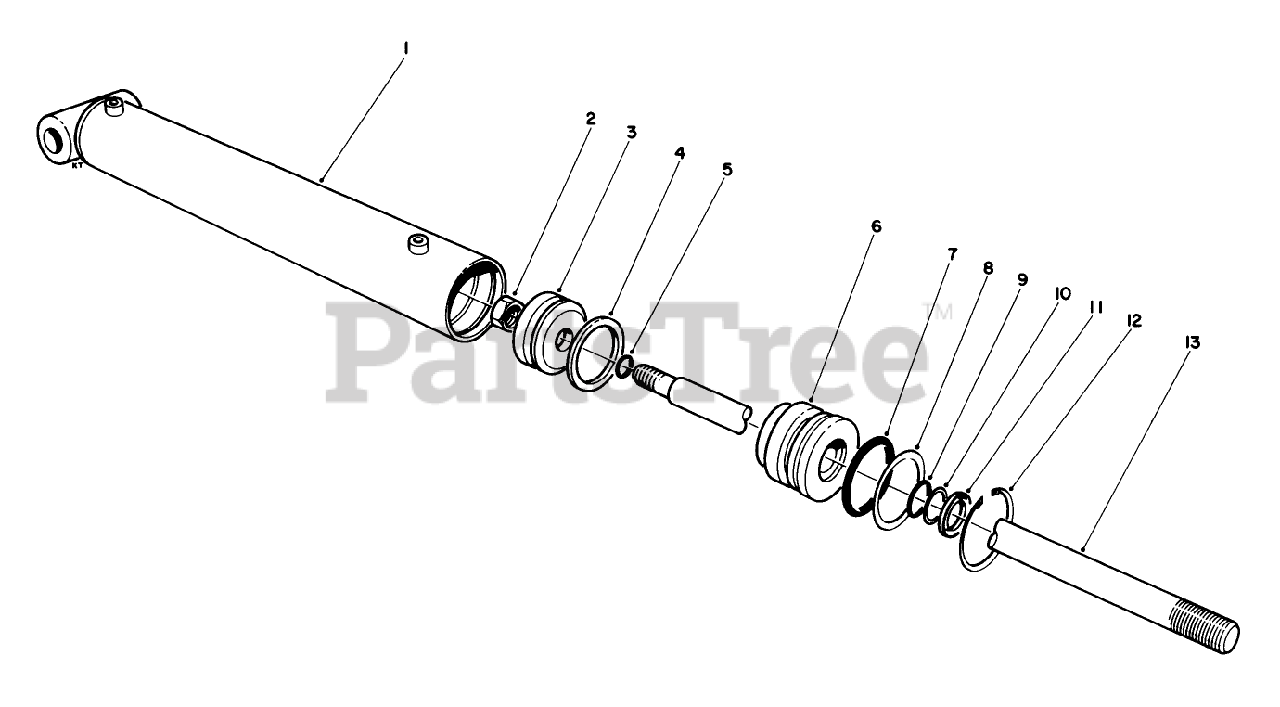

Hydraulic Lift Cylinder No. 54-0150 Parts Diagram

  • Title

1

Toro 54-0270

See Supercession: 54-0150
(Superseded to 54-0150)

$

$

Not available

2

Toro 32152-10

LOCKNUT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 54-0300

PISTON

$359.99

$

Usually ships in 3-6 days

0

4

Toro 353-888

Uniring

$

$

Currently unavailable

5

Toro 43-5170

O-Ring

$

$

Currently unavailable

6

Toro 54-0310

HEAD

$328.99

$

Usually ships in 3-6 days

0

7

Toro 43-5160

O-Ring

$

$

Currently unavailable

8

Toro 43-5190

Washer-Backup

$

$

Currently unavailable

9

Toro 353-792

0 Ring

$

$

Currently unavailable

10

Toro 353-797

Washer-Backup

$

$

Currently unavailable

11

Toro 353-796

Dust Seal

$

$

Currently unavailable

12

Toro 43-5220

RING-RETAINING

$81.99

$

Usually ships in 3-6 days

0

13

Toro 54-0280

SHAFT

$

$

Not available

Toro 54-0290

SEAL REPAIR KIT

Note: Not illustrated

$136.99

$

Usually ships in 3-6 days

0
